Universal Audio - VOLTSB276 Studio Pack

Vendor: Universal Audio

Type: Recording & Studio

SKU: UA-VOLTSB276

$499.00

$499.00 ~~$499.00~~

Shipping calculated at checkout.

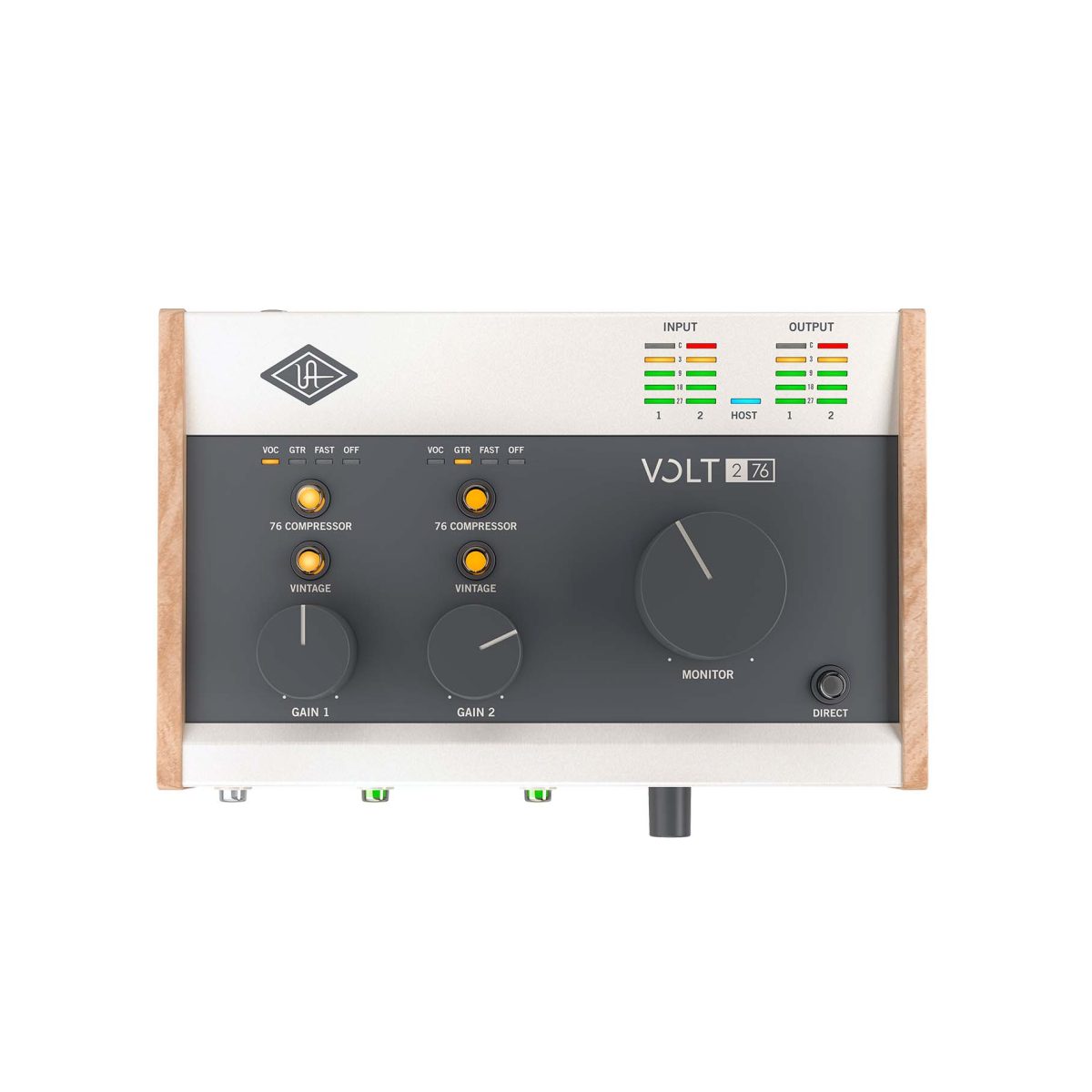

Universal Audio Volt 276 desktop 2-in/2-out USB 2.0 audio interface with 24-bit/192 kHz audio conversion, Vintage Mic Preamp mode, and 76 Compressor Studio condenser microphone for professional vocal and instrument recording Closed-back headphones for accurate mixing and monitoring Essential suite of audio and music software including Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more Standard XLR and USB-C to USB-A cables Professional Studio Sound, Anywhere. Universal Audio created Volt 276 for collaborators, from musicians and producers to livestreamers and content creators who want to easily record audio with big studio sound. Plug right in to your Mac, PC, iPad, or iPhone and Volt just shows up, ready to capture your inspiration with professional polish, courtesy of Universal Audio.

Desktop 2-in/2-out USB 2.0 audio interface with class-leading 24-bit/192 kHz audio conversion for Mac, PC, iPad, and iPhone
Vintage Mic Preamp mode for recording voice or guitar with the rich, full sound of a classic UA tube preamp
Built-in 76 Compressor adds instant clarity and punch to voice, instruments, and other sources with all-new analog circuit based on UA's iconic 1176
Essential suite of audio and music software including Ableton, Melodyne, UJAM's Virtual Drummer, Marshall, Ampeg, and more
Studio-quality headphone amplifier for loud, clear monitoring
USB bus powered to reduce cable clutter
48V phantom power for condenser microphones
Direct Monitoring for latency-free recording
Stylish, rugged construction built to withstand years of use
1-in/1-out MIDI connections
USB-C to USB-A cable included

Special Order

FREE Shipping

30-Day Returns

FREE Warranty

Canadian Since 1971

Free shipping on most products over $100
Free Returns Within 30 days

Limited time offer

We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

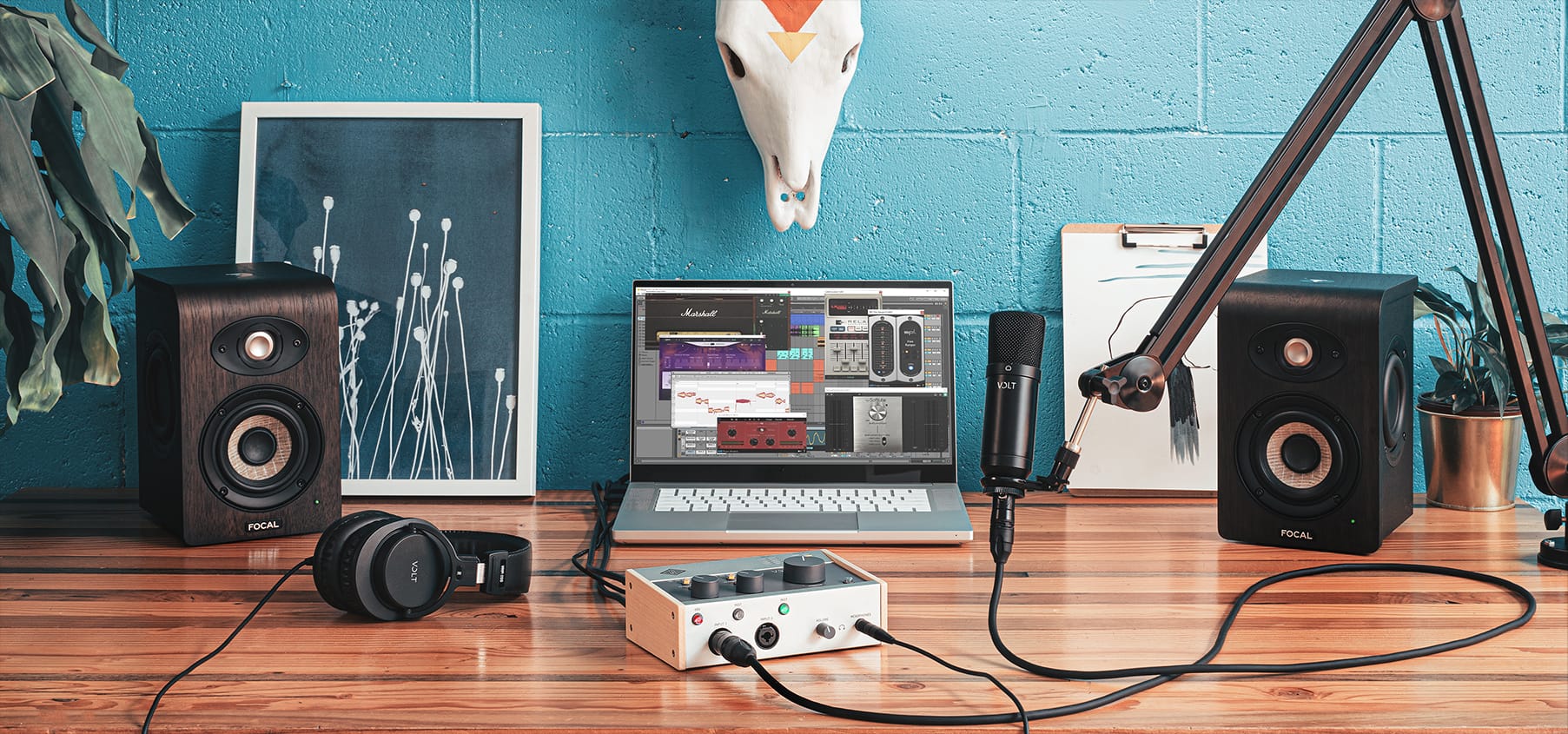

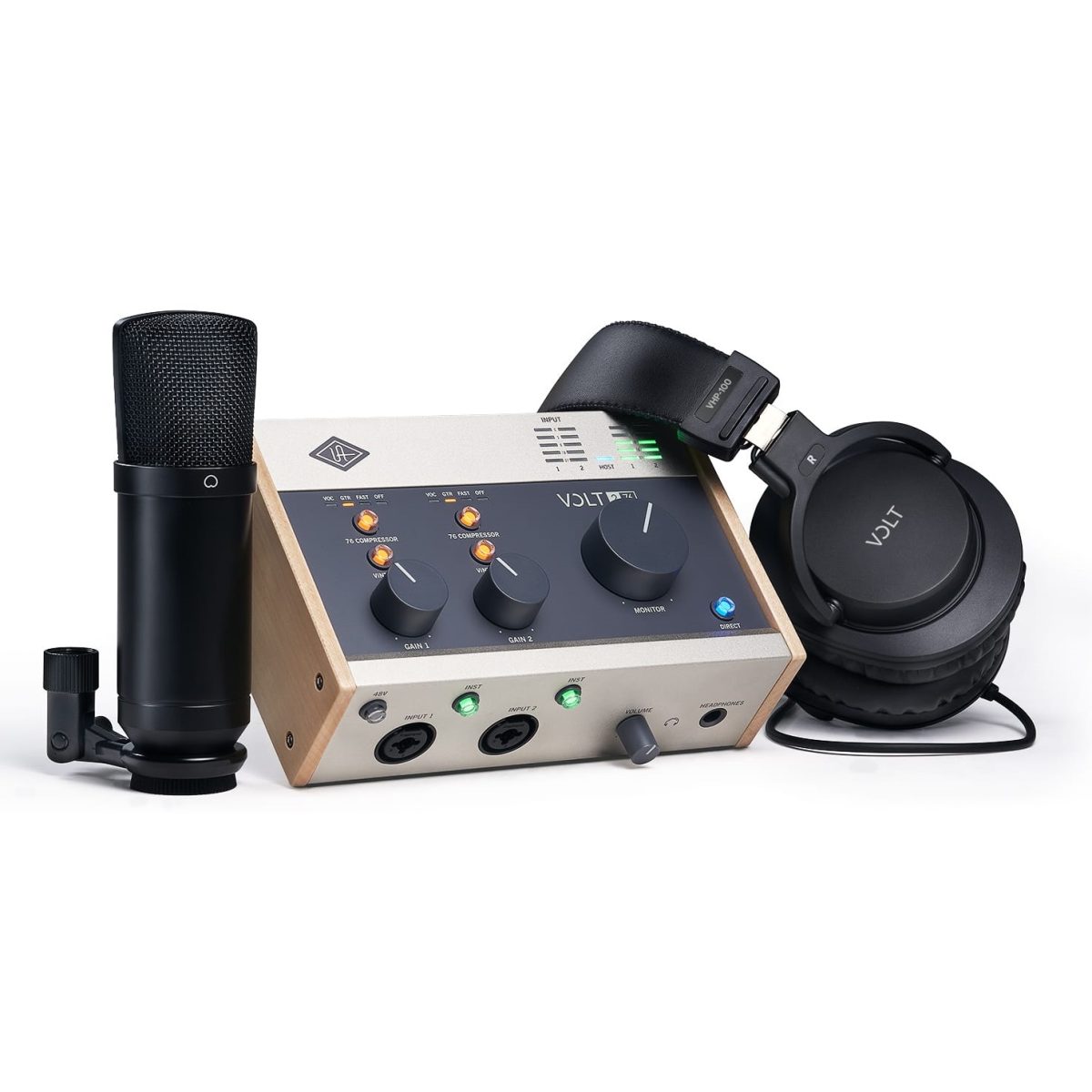

Volt Studio Packs combine the essential tools you need to record music, livestreams, or podcasts with big studio tone. With Universal Audio’s Volt 276 USB audio interface, condenser mic, studio headphones, audio software, and cables, getting professional recordings has never been easier.

Outfit your studio with a Volt 276, condenser microphone, closed-back studio headphones, cables, and more

Create music productions, livestreams, and podcasts on Mac, PC, iPad, and iPhone

Record vocals and instruments with classic UA hardware effects, and hear your performances through headphones without latency

Produce with an essential suite of audio and music software including Ableton, Melodyne, UJAM's Virtual Drummer, Marshall, Ampeg, and more

Ready to Record? It’s Never Been Easier.

Volt Studio Packs deliver all the tools you need to record vocals and instruments with pro sound. Just plug in your included mic and headphones, power‑up Volt 276, and start creating with legendary sound, fast.

Capture Legendary Vocals with Vintage Mic Preamp Mode

Few sounds can compare to a vintage Universal Audio 610 tube preamp, used to record everyone from Ray Charles to Van Halen to Arcade Fire. Volt interfaces give you the rich sound of this iconic analog hardware, thanks to their built‑in tube emulation circuitry, a UA exclusive.

Control Volume Peaks with UA Compression

Get album-ready punch with a built-in analog compressor on Volt 276. Inspired by UA's famed 1176 Limiting Amplifier, the 76 Compressor's three perfectly tailored presets let you tame voice, guitars, synths, and drum machines for professional sound.

Create with a Curated Suite of Audio Software

While some recording packs give you a smattering of random audio apps, Volt Studio Packs include a suite of essential music production tools, virtual instruments, and plug‑ins, including Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more. See Included Software for Mac & PC ›

iPad & iPhone Ready

Traveling light? Plug Volt right into an iPad or iPhone, and you can easily create beats and samples, record your band’s rehearsals, and edit songs anywhere.^* *Requires external Volt power supply and an Apple Lightning to USB Camera Adapter (except iPads with USB‑C).

https://youtu.be/bRMoVt4zNOc

See Included Software for Mac & PC ›

SYSTEM
I/O Complement

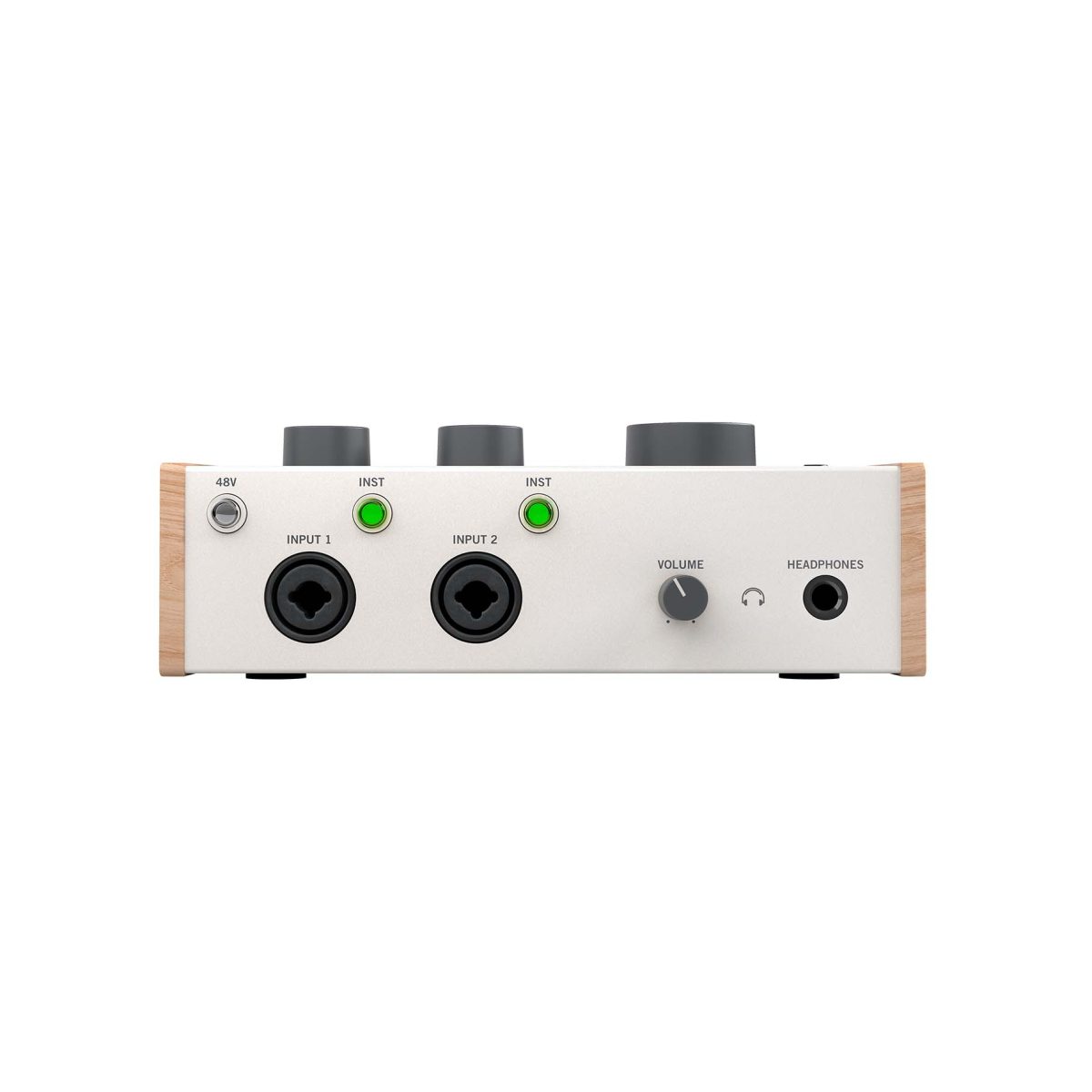

Microphone/Line/Instrument Preamp Inputs	Combo XLR/TRS
Volt 1	One
Volt 2	Two
Volt 176	One
Volt 276	Two
Volt 476	Two
Additional Line Inputs (Volt 476 only)	Two
Line Outputs (Volt 476 only)	Four
Monitor Outputs	Two (one stereo pair)
Headphone Outputs	One stereo

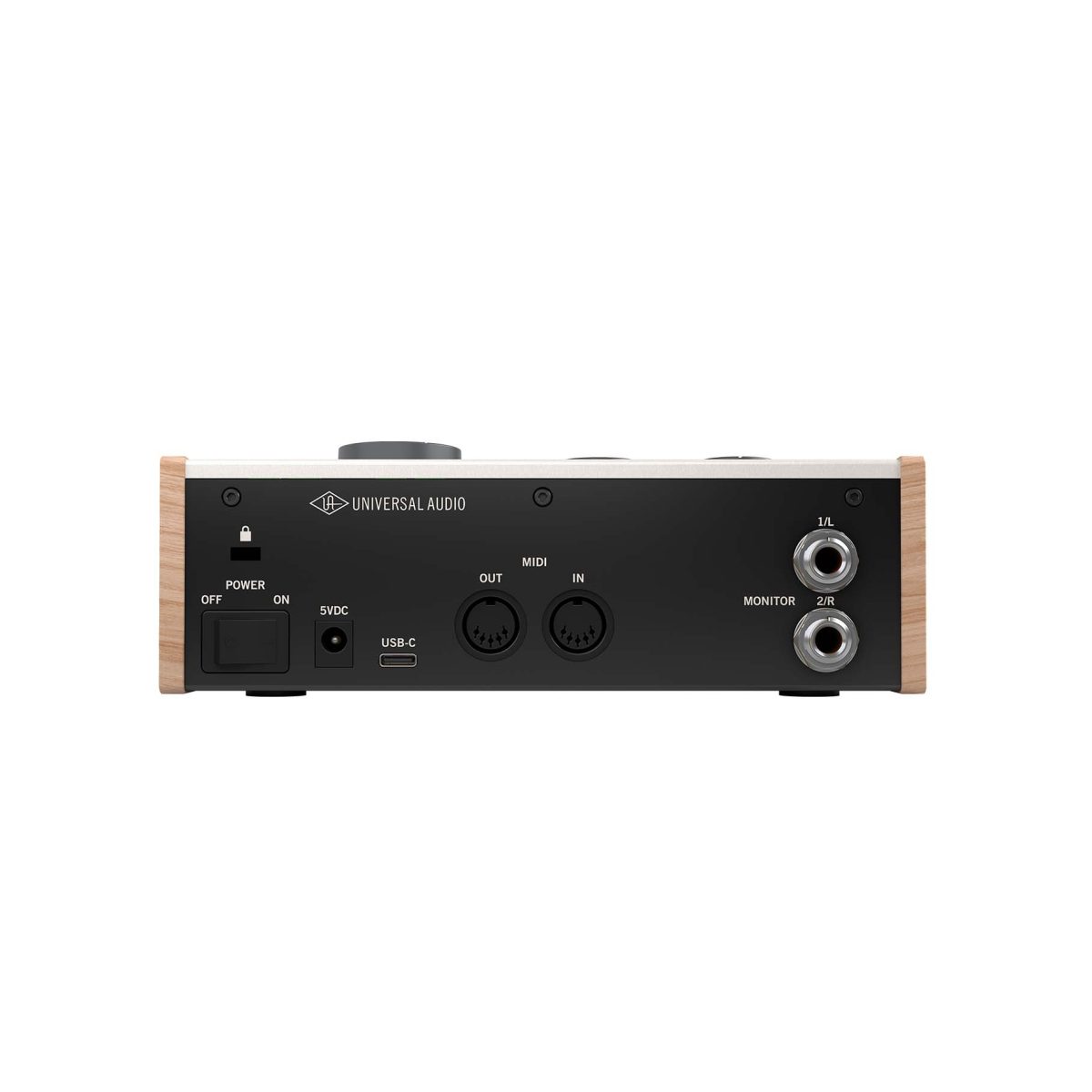

USB	One USB 2.0 port (USB Type-C connector)
MIDI	In, Out (two 5-pin DIN connectors)
A/D – D/A Conversion
Supported Sample Rates (kHz)	44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample	24
ANALOG I/O
Mic, Line, Instrument Input(s)
Vintage mode (all Volt models)	Selectable ON/OFF
76 Compressor presets (176, 276, 476 only)	Selectable VOC, GTR, FAST, OFF
76 Compressor preset times	Attack / Release times (approximate)
VOC	Attack 2 ms / Release 300 ms
GTR	Attack 1.5 ms / Release 700 ms
FAST	Attack 30 µs / Release 35 ms
Compression Ratio	06:01
Microphone Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A–weighted)	112 dB
Total Harmonic Distortion + Noise	-103 dB (0.0007 %)
(1 kHz @ -1 dBFS)	-103 dB (0.0007 %)
Equivalent Input Noise (150 Ohms, A-weighted)	-127 dBu
Maximum Input Level	9 dBu
Input Impedance	3 Kilohms
Available Gain	55 dB
Phantom Power	+48V (switchable)
Connector Type	XLR Female, pin 2 positive
Instrument Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	111 dB
Total Harmonic Distortion + Noise	-84 dB (0.006 %)
(1 kHz @ -1 dBFS)	-84 dB (0.006 %)
Maximum Input Level	12.5 dBu
Input Impedance	1 Megohms
Gain Range	55 dB
Connector Type	¼” TS unbalanced
Line Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	111 dB
Total Harmonic Distortion + Noise	-102 dB (0.0008 %)
(1 kHz @ -1 dBFS)	-102 dB (0.0008 %)
Maximum Input Level	22 dBu
Input Impedance	15 Kilohms
Gain Range	55 dB
Connector Type	¼” TRS balanced or TS unbalanced
Line Inputs 3-4 (Volt 476 only)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	113 dB
Total Harmonic Distortion + Noise	-105 dB (0.0006 %)
(1 kHz @ -1 dBFS)	-105 dB (0.0006 %)
Maximum Input Level	18 dBu
Input Impedance	10 Kilohms
Connector Type	¼” TRS balanced or TS unbalanced
Monitor & 476 Line Outputs
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A–weighted)	110 dB
Total Harmonic Distortion + Noise	-102.5 dB (0.00075%)
(1 kHz @ -1 dBFS)	-102.5 dB (0.00075%)
Maximum Output Level	15 dBu
Output Impedance	100 Ohms
Connector Type	¼” TRS balanced or TS unbalanced
Stereo Headphone Outputs
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (100K load, A-weighted)	110 dB
Total Harmonic Distortion + Noise	-100 dB (0.001%)
(1 kHz @ -1 dBFS, 300 Ohms)	-100 dB (0.001%)
Maximum Output Power into 32 Ohms	84 mW per channel
Maximum Output Power into 300 Ohms	22 mW per channel
Maximum Output Power into 600 Ohms	12 mW per channel
Connector Type	¼” TRS Stereo
ELECTRICAL
External DC Power Input	Barrel, female, 5.5mm OD, 2.1mm ID,
External DC Power Input	IEC 60130-10 Type A
Power Supply, Electrical Requirements	+5VDC, Center Positive (+)
Power Consumption
Volt 1	2.8W maximum, 1.9W typical
Volt 2	4.2W maximum, 2.5W typical
Volt 176	3.2W maximum, 2.3W typical
Volt 276	5W maximum, 3.5W typical
Volt 476	6.7W maximum, 4.9W typical
ENVIRONMENTAL
Ambient Temperature Range	32° to 104° F (0° to 40° C)
MECHANICAL
Dimensions
Chassis (including knobs and protrusions)	Width x Depth x Height
Volt 1	5.7 x 5.1 x 2.0 in (14,5 x 13,0 x 5,0 cm)
Volt 2	6.9 x 5.1 x 2.1 in (17,4 x 13,0 x 5,3 cm)
Volt 176	5.9 x 5.1 x 2.6 in (15,0 x 13,0 x 6,5 cm)
Volt 276	7.3 x 4.7 x 2.7 in (18,4 x 11,9 x 6,7 cm)
Volt 476	8.4 x 5.2 x 2.6 in (21,2 x 13,2 x 6,6 cm)
Shipping Box	Width x Depth x Height
Volt 1	7.8 x 6.9 x 3.7 in (1,9 x 17,5 x 9,5 cm)
Volt 2	9.0 x 6.9 x 3.7 in (22,8 x 17,5 x 9,4 cm)
Volt 176	8.1 x 7.1 x 4.2 in (20,6 x 18,2 x 10,6 cm)
Volt 276	9.5 x 6.9 x 4.0 in (24,1 x 17,5 x 10,2 cm)
Volt 476	9.5 x 6.9 x 5.2 in (24,1 x 17,5 x 13,3 cm)
Weight
Shipping Weight (with box & accessories)
Volt 1	1.9 lbs (0.9 kg)
Volt 2	2.2 lbs (1.0 kg)
Volt 176	2.2 lbs (1.0 kg)
Volt 276	2.6 lbs (1.2 kg)
Volt 476	3.5 lbs (1.6 kg)
Weight (bare unit)
Volt 1	1.2 lbs (0.55 kg)
Volt 2	1.4 lbs (0.65 kg)
Volt 176	1.4 lbs (0.65 kg)
Volt 276	1.8 lbs (0.79 kg)
Volt 476	2.0 lbs (0.92 kg)
Package Contents
Volt Audio Interface Unit
USB Type-A to Type-C cable
USB Type-A to DC Barrel cable (except Volt 476)
External Power Supply Unit with AC adapter kit (Volt 476 only)
