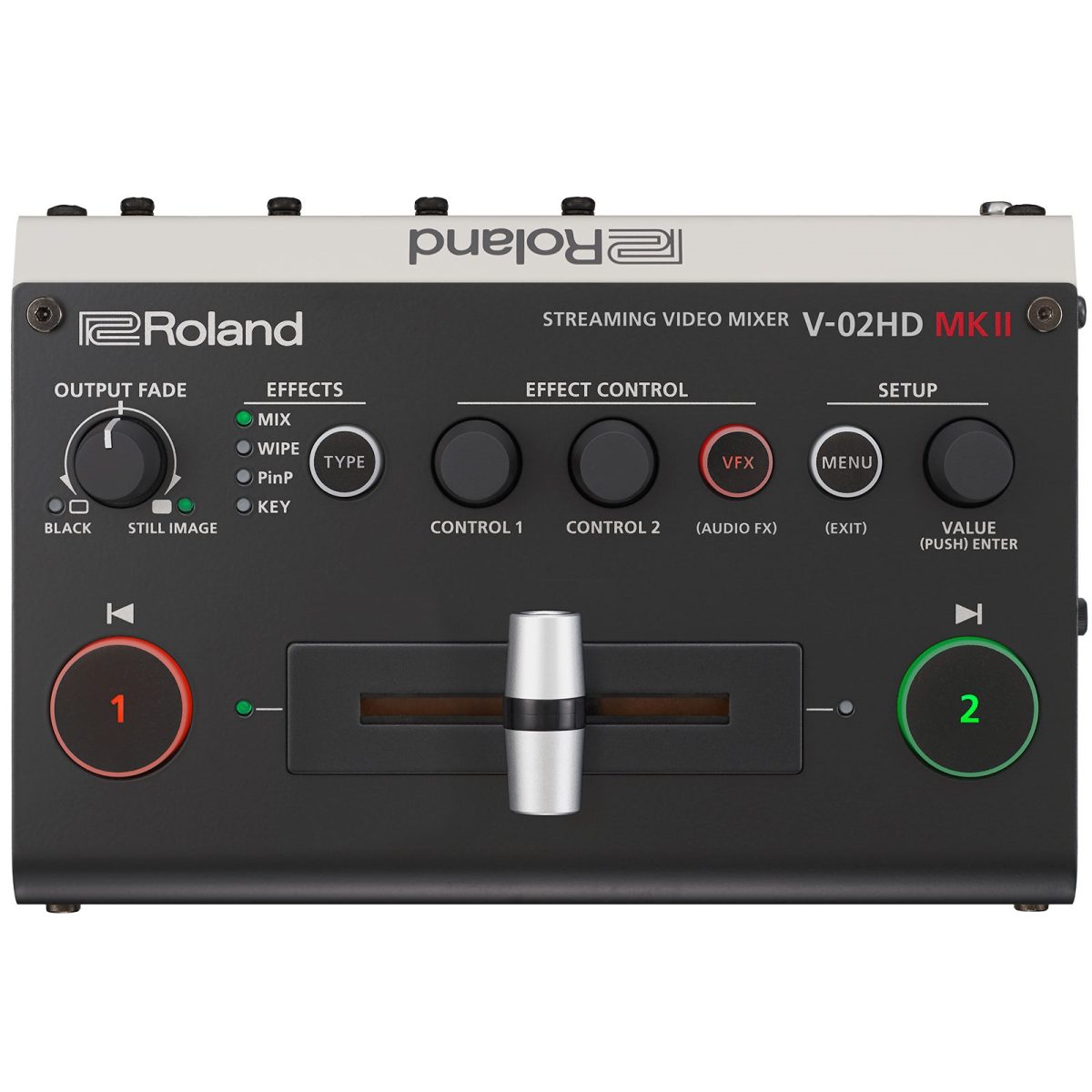

Roland - V02HDMK2 - Streaming Video Mixer
Step Up Your Livestreams
Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Stream with Every Platform
The V-02HD MK II connects to the streaming computer you already own and the audience you already have. It’s instantly recognized as a camera source when you plug in via USB, so it’s ready to go for Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, StreamYard, and Restream for more advanced workflows. High-quality streaming up to 1080p/60 FPS is supported, and it’s possible to send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed.
A Stress-Free Setup
When you use the V-02HD MK II, everything just works. Plug in your two HDMI sources and let Roland’s advanced tech handle all the details, and say goodbye to computer driver conflicts, crashes, and other reliability issues that come with multiple USB webcams and HDMI-to-USB encoder adaptors.
| VIDEO | |
| Video Processing | 4:4:4 (Y/Pb/Pr), 10-bit |
| Input Connectors | INPUT 1--2: HDMI type A x 2 |
| * HDCP Supported | |
| * Multi-format Supported | |

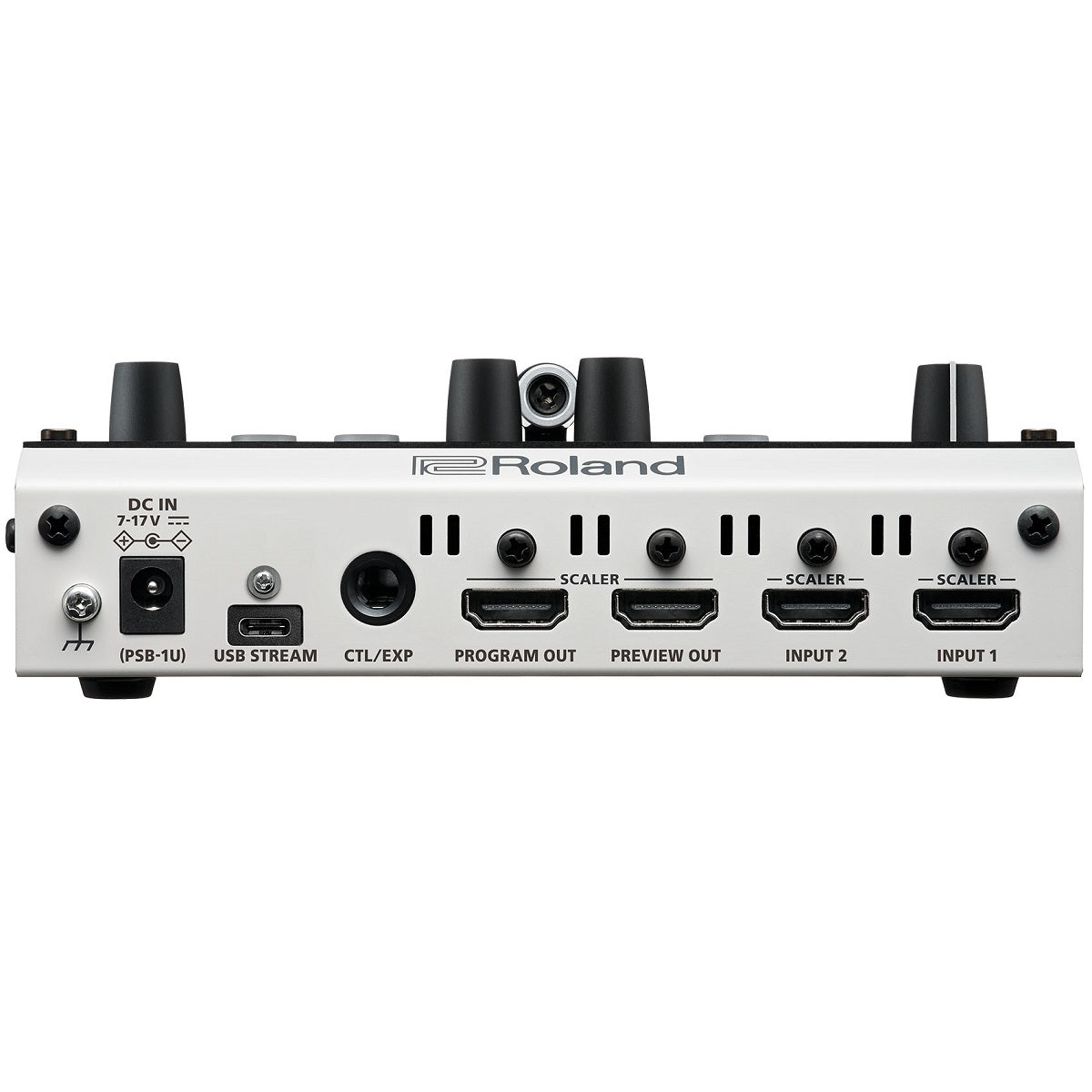

| Output Connectors | PROGRAM OUT: HDMI type A |
| PREVIEW OUT: HDMI type A | |
| * HDCP Supported | |
| * Multi-format Supported | |
| USB STREAM:USB Type-C (TM) | |
| Input Formats | 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 |
| 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 | |
| 1080/23.98p, 1080/24p | |
| VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz) | |
| WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz) | |
| FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz) | |
| UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz) | |
| * The refresh rate is the maximum value of each resolution. | |
| * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11. | |
| * 1920 x 1200/60 Hz: Reduced blanking | |
| * The input interlaced video signal is converted to progressive video signal by internal processing. | |
| *1 FRAME RATE = 59.94 Hz | |
| *2 FRAME RATE = 50 Hz | |
| Output Formats | PROGRAM OUT, PREVIEW OUT: |
| 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1 | |
| 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 | |
| SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) | |
| WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz) | |
| SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz) | |
| UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) | |
| HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz) | |
| * Conforms to VESA DMT Version 1.0 Revision 11. | |
| * The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz. | |
| * 1920 x 1200/60 Hz: Reduced blanking | |
| *1 FRAME RATE = 59.94 Hz | |
| *2 FRAME RATE = 50 Hz | |
| USB STREAM: | |
| 1080/60p, 720/60p, 640 x 480/60p *1 | |
| 1080/59.94p, 720/59.94p, 640 x 480/59.94p *2 | |
| 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3 | |
| 1080/50p, 720/50p, 640 x 480/50p *4 | |
| 1080/25p, 720/25p､640 x 480/25p *5 | |
| *Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported. | |
| *1 FRAME RATE(USB OUT) = 60 Hz | |
| *2 FRAME RATE(USB OUT) = 59.94 Hz | |
| *3 FRAME RATE(USB OUT) = 29.97 Hz | |
| *4 FRAME RATE(USB OUT) = 50 Hz | |
| *5 FRAME RATE(USB OUT) = 25 Hz | |
| Video Effects | Transition: CUT, MIX (DISSOLVE), WIPE (9 types) |
| Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key) | |
| Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET | |
| Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output | |
| AUDIO | |
| Audio Processing | Sampling rate: 24 bits/48 kHz |
| Audio formats | Linear PCM, 24 bits/48 kHz, 2ch |

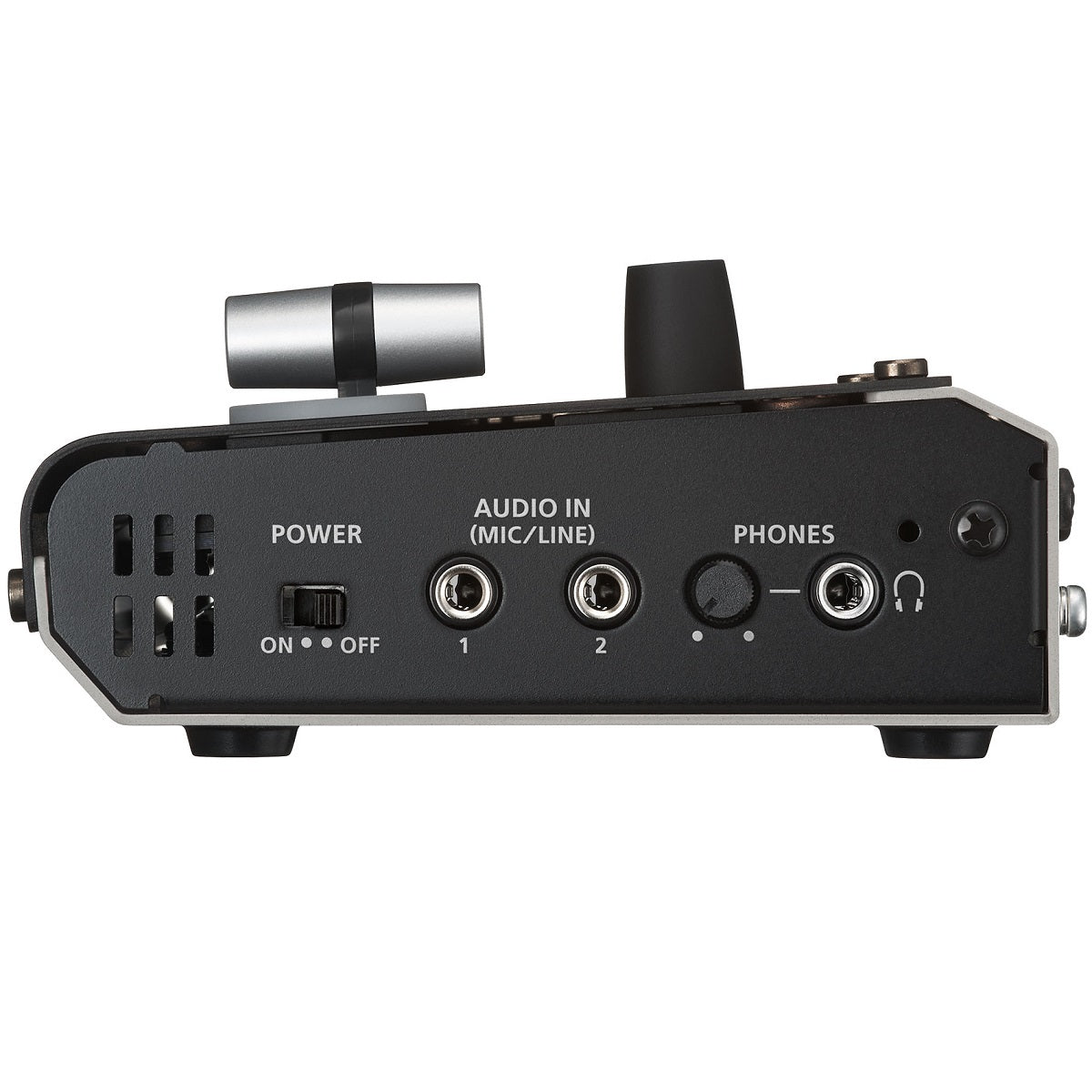

| Input Connectors | Analog: |
| AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported | |
| Digital: | |
| USB STREAM: USB Type-C (™) | |
| INPUT 1--2: HDMI Type A x 2 | |
| Output Connectors | Analog: |
| PHONES: Stereo miniature type | |
| Digital: | |
| USB STREAM: USB Type-C (TM) | |
| PROGRAM OUT: HDMI type A | |
| PREVIEW OUT: HDMI type A | |
| Input Level | AUDIO IN: -10 dBu (Maximum: +10 dBu) |
| Input Impedance | AUDIO IN: 10 k ohms |
| Output Level | PHONES: 92 mW + 92 mW (32 ohms) |
| Output Impedance | PHONES: 10 ohms |
| Audio Effects | Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer |
| Multi-band compressor, Limiter, Test tone output | |
| OTHERS | |
| Other Connectors | USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad) |
| CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal) | |
| Other Functions | Preset Memory (8 types) |
| Panel lock function | |
| EDID Emulator | |
| Auto Switching | |
| Auto Input Detect | |
| Power Supply | AC Adaptor |
| Current Draw | 1.4 A |
| Power Consumption | 12.6 W |
| Operation Temperature | +0 to +40 degrees Celsius |
| +32 to +104 degrees Fahrenheit | |
| Dimensions | 160 (W) x 108 (D) x 51 (H) mm |
| 6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches | |
| Weight (excluding AC adaptor) | 0.6 kg |
| 1 lbs 6 oz | |
| Accessories | Startup Guide |
| AC adaptor | |
| Power cord | |
| Cord hook | |
| Options (sold separately) | Footswitch: BOSS FS-5U, FS-6, FS-7 |
| Expression Pedal: EV-5, BOSS FV-500L, FV-500H |
