Roland - AeroCaster - Livestreaming System
The Swiftest, Simplest Switcher Setup
AeroCaster is a super-powerful A/V switching system that’s incredibly versatile and easy to configure. In almost no time, you’ll be streaming multiple cameras and high-quality audio to YouTube, Facebook, Twitch, and custom RTMP channels over a Wi-Fi or 4G/5G cellular network.

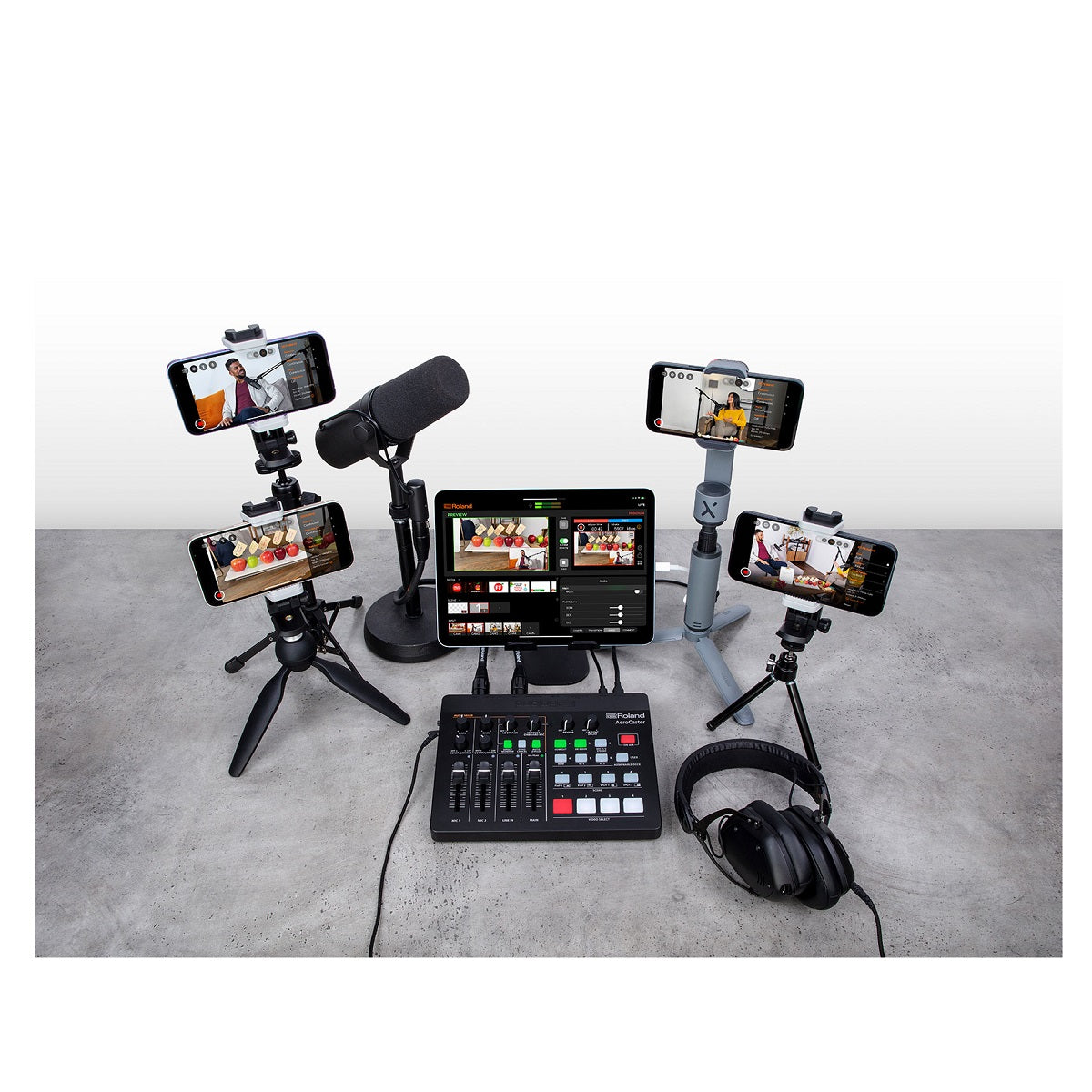

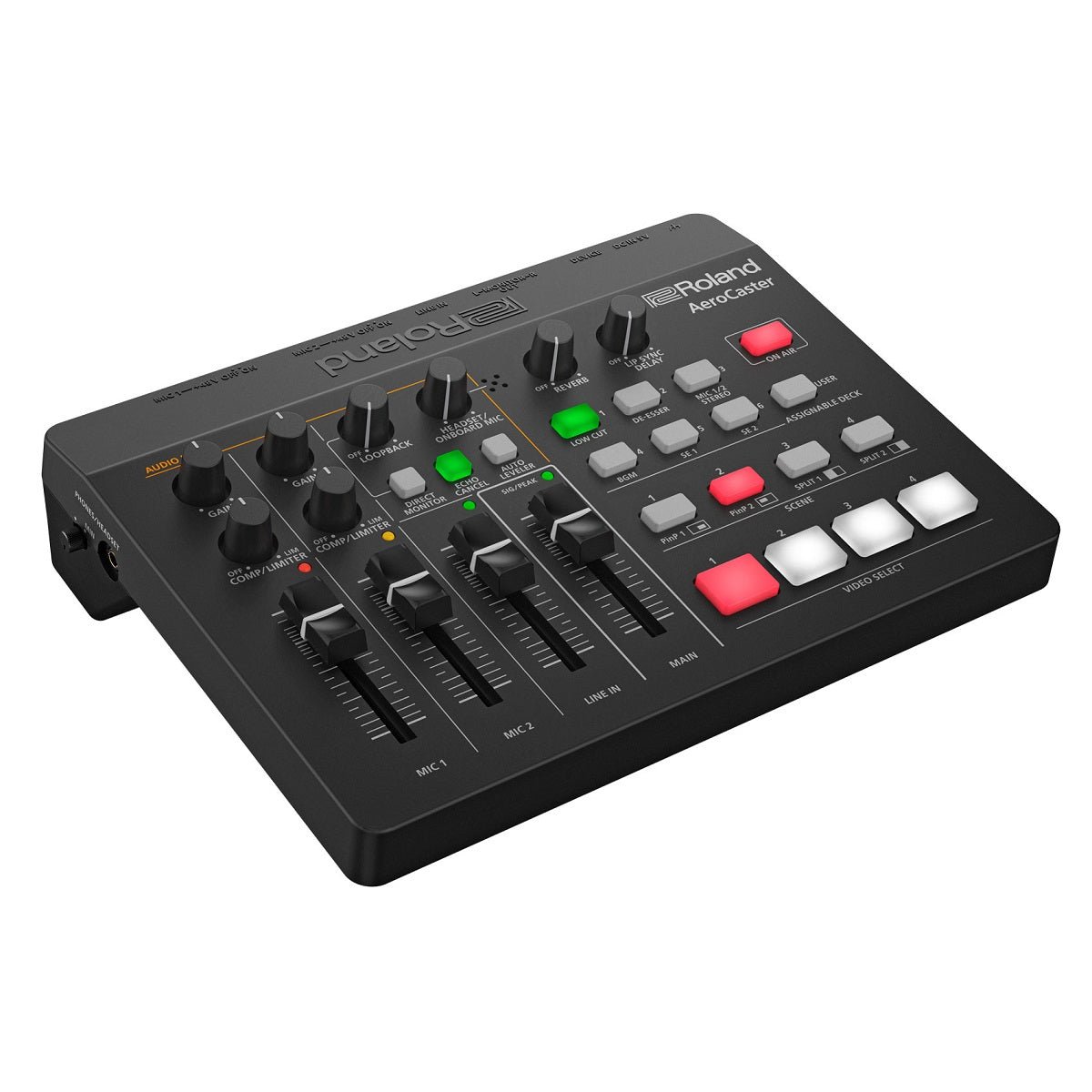

The AeroCaster system consists of the AeroCaster LIVE app for iPad, the AeroCaster VRC-01 hardware control surface and audio interface, and the AeroCaster Camera app for iOS and Android mobile devices. BYOD screen sharing from computers and mobile devices is also supported.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Connect with Your Favorite Streaming Platform
AeroCaster provides an easy wireless connection to the leading streaming platforms. And your purchase of the system gives you full access to all AeroCaster features, with no subscription fee required.
Easy Video Capture with Wireless Freedom
With all-wireless connectivity, you can use readily available stationary mounts to put the phones in places where it’s difficult to use a traditional camera. And with affordable gimbal mounts, you’re able to capture stabilized mobile shots from as far as your wireless network will reach.Fine-Tune All Your Cameras from One Place
Once mobile devices are connected to AeroCaster LIVE, you have remote access to all their advanced camera settings from within the app. Balance and match the image between different phone cameras and control settings like focus, zoom, exposure, white balance, and more.Record Program and ISO Video
Whether livestreaming or working offline, the flexible AeroCaster system lets you easily record productions for later editing and distribution. Capture the combined program output on the iPad and isolated video feeds on each phone. Then wirelessly transfer the phone videos to the iPad and put all the files together for post-production work in the app of your choice.Wireless Screen Sharing with Google Chrome
AeroCaster LIVE also provides a simple solution for screen sharing from computers and mobile devices. Presenters can easily connect via the Google Chrome browser over Wi-Fi, with no cables, video adaptors, or dongles needed.| AEROCASTER VRC-01 | |

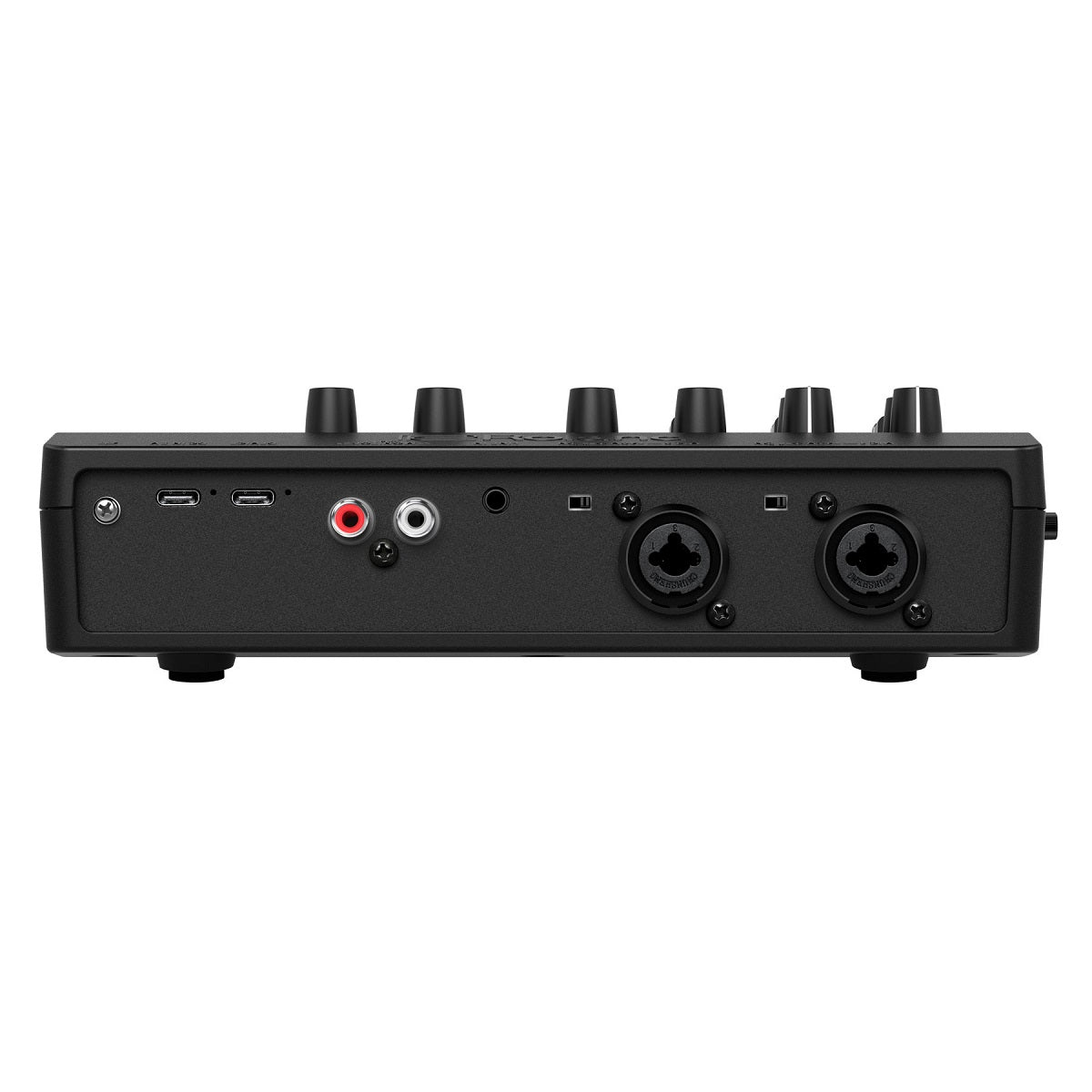

| Connectors | MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max) |
| LINE IN jack: Stereo miniature type | |
| MONITOR OUT jack: RCA phono type | |

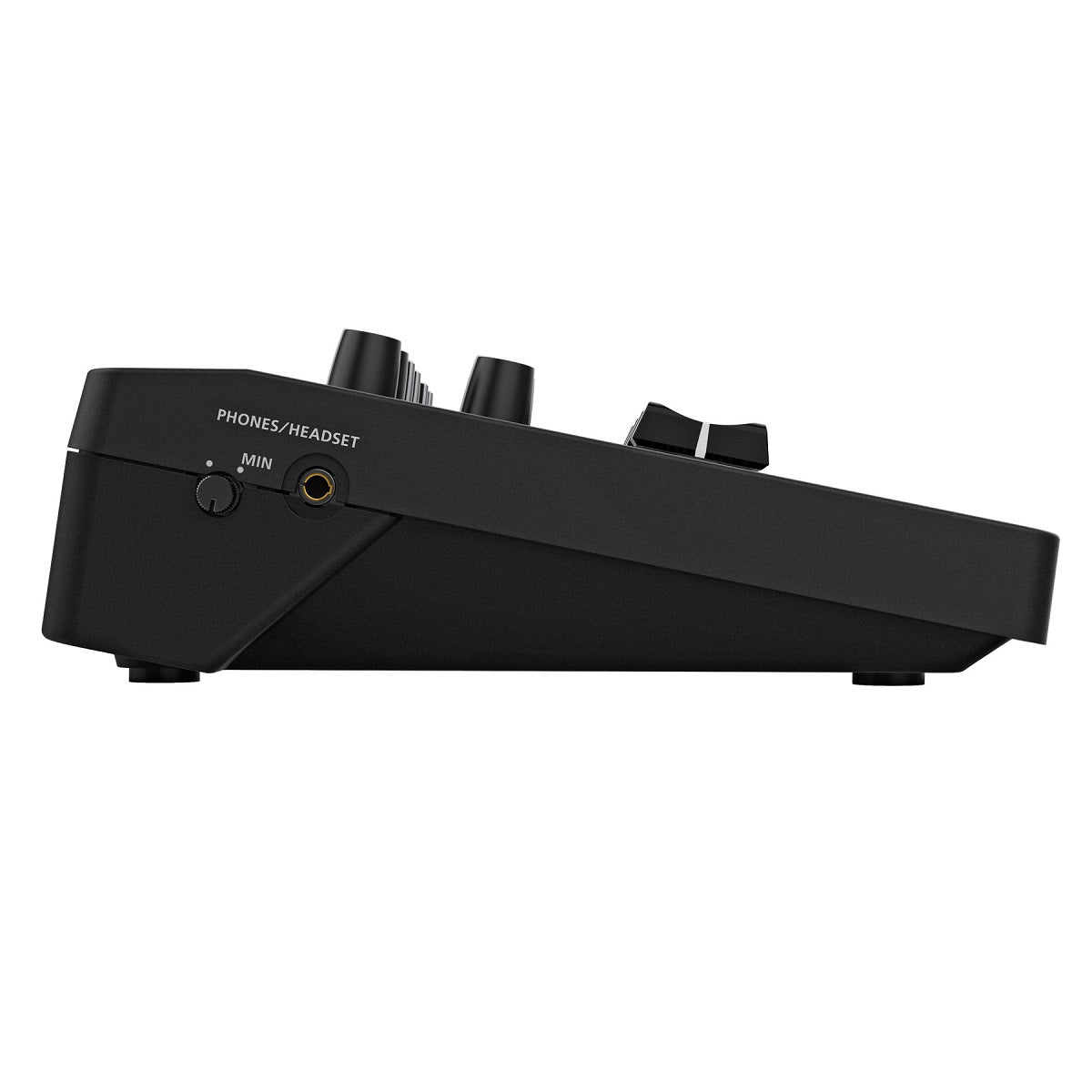

| PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type) | |
| DC IN 5V port: USB Type-C (R) | |
| DEVICE port: USB Type-C (R) | |

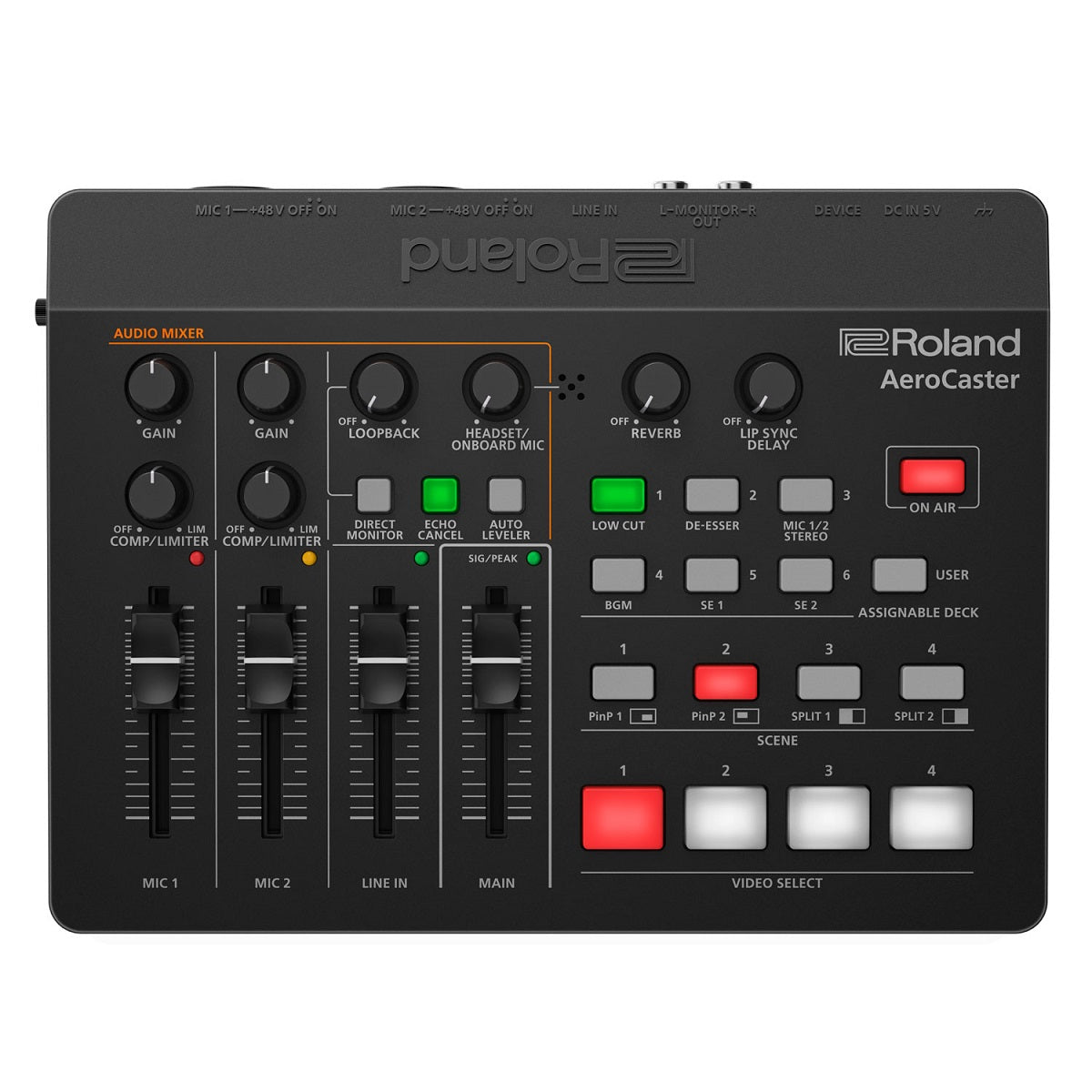

| Controller | MIC 1 LEVEL fader |
| MIC 2 LEVEL fader | |
| LINE IN LEVEL fader | |
| MAIN LEVEL fader | |
| MIC 1 COMP/LIMITER knob | |
| MIC 2 COMP/LIMITER knob | |
| MIC 1 GAIN knob | |
| MIC 2 GAIN knob | |
| LOOP BACK knob | |
| HEADSET/ONBOARD MIC knob | |
| REVERB knob | |
| LIP SYNC DELAY knob | |
| PHONES/HEADSET knob | |
| MIC 1 +48V switch | |
| MIC 2 +48V switch | |
| Indicator | POWER |
| DEVICE | |
| SIG/PEAK | |
| Nominal Input Level | MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu) |
| LINE IN jacks: -10 dBu (Maximum input level: +10 dBu) | |
| Input Impedance | MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu) |
| LINE IN jacks: 15 k ohms | |
| Nominal Output Level | MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu) |
| PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load) | |
| Output Impedance | MONITOR OUT jacks: 1 k ohms |
| Audio Effects | Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter |
| Power Supply | USB AC adaptor (commercially available) |
| * Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more. | |
| USB Bus power | |
| Current Draw | 700 mA (AC adaptor) |
| 500 mA (USB bus power) | |
| Operation Temperature | +0 to +40 degrees Celsius |
| +32 to +104 degrees Fahrenheit | |
| Dimensions | 220(W) x 166(D) x 60(H) mm |
| 8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches | |
| Weight (without cables) | 600 g |
| 1 lb 6 oz | |
| Accessories | Leaflet "Read Me First" |
| USB Type-C to Lightning cable | |
| USB Type-C to USB Type-A cable | |
| * 0 dBu = 0.775 Vrms | |
| AEROCASTER LIVE | |
| Video Input | Satellite camera |
| Browser source | |
| Built-in camera (iPad). | |
| * 5 inputs in total | |
| * Satellite cameras can be used with AeroCaster Camera or Web browser. | |
| * Need to install the “AeroCaster Camera” App on your iPhone and Android Phone. | |
| * “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser. | |
| * Codec:H.264 Bitrate:Up to 20Mbps | |
| Video Processing | RGB 4:4:4, 8-bit |
| 1080/60p | |
| * Depends on iPad internal processing | |
| * Video input will be converted automatically. | |
| Input Formats | Up to 1080/30p |
| * Automatically adjusts resolution and frame rate according to network bandwidth. | |
| Output Formats | Up to 1080/60p |
| * Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter. | |
| Still image and video and audio playback | Up to 100. |
| * Use still images and videos saved in the iPad. | |
| * File format conforms to iOS Photo Library. | |
| * PNG alpha channel supported. | |
| * Support mp4(aac), m4a(aac), mp3, wav as audio source. | |
| Scene | Up to 30. |
| * Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered. | |
| Video Effects | Transition: CUT, MIX (DISSOLVE), WIPE |
| DSK (overlay): Text, Media | |
| Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function | |
| * PNG alpha channel composition supported | |
| Audio Processing | Sampling Rate: 24 bits, 48 kHz |
| Streaming Platform | YouTube Live |
| Facebook Live | |
| Twitch | |
| * Custom RTMP supported | |
| Recording | Format : MP4 (H.264/AAC) |
| Bitrate : 1Mbps〜10Mbps | |
| Other Functions | (Zoom, Exposure, White Balance, Focus, LED Light, Stabilization) |
| * Depends on smart phone or tablet |
