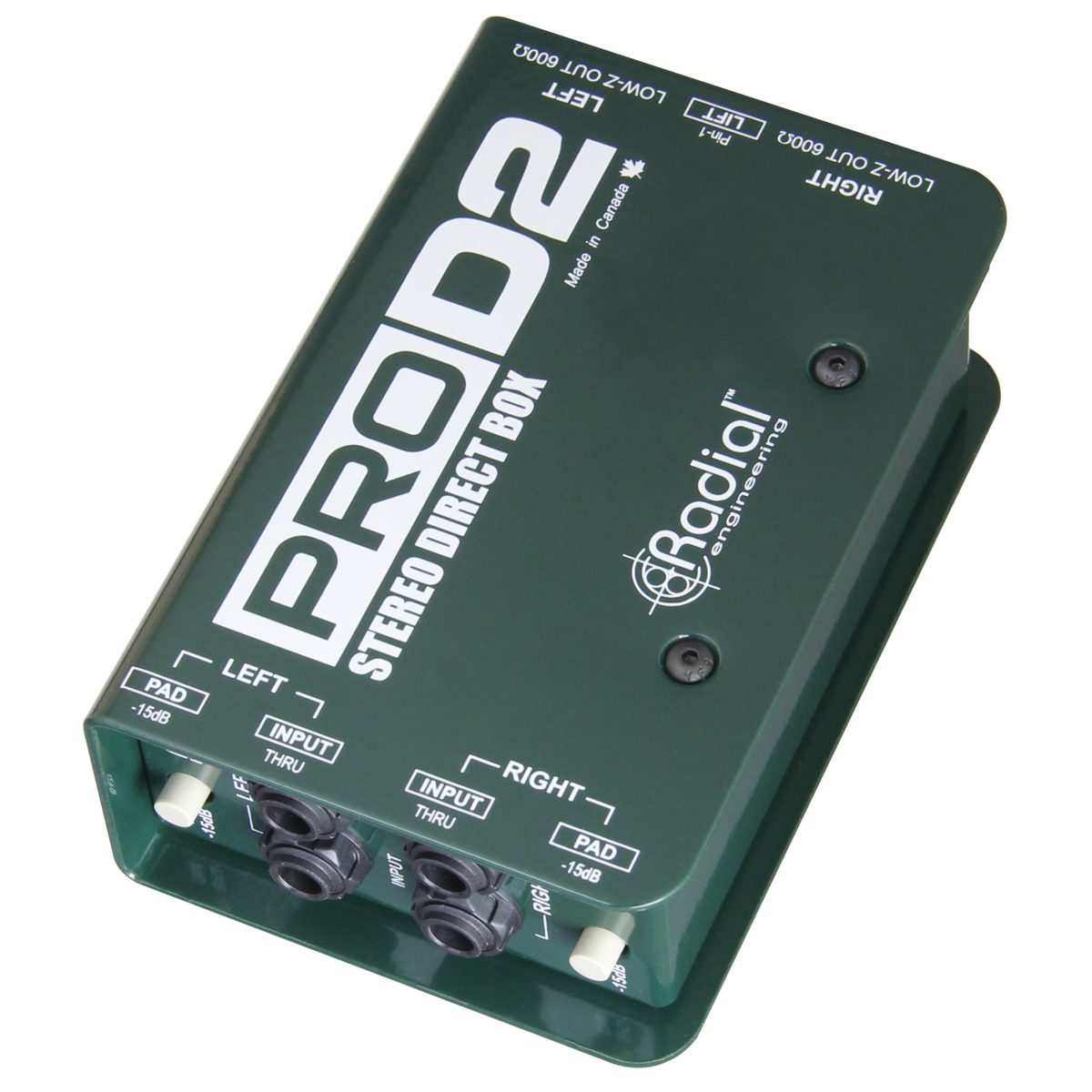

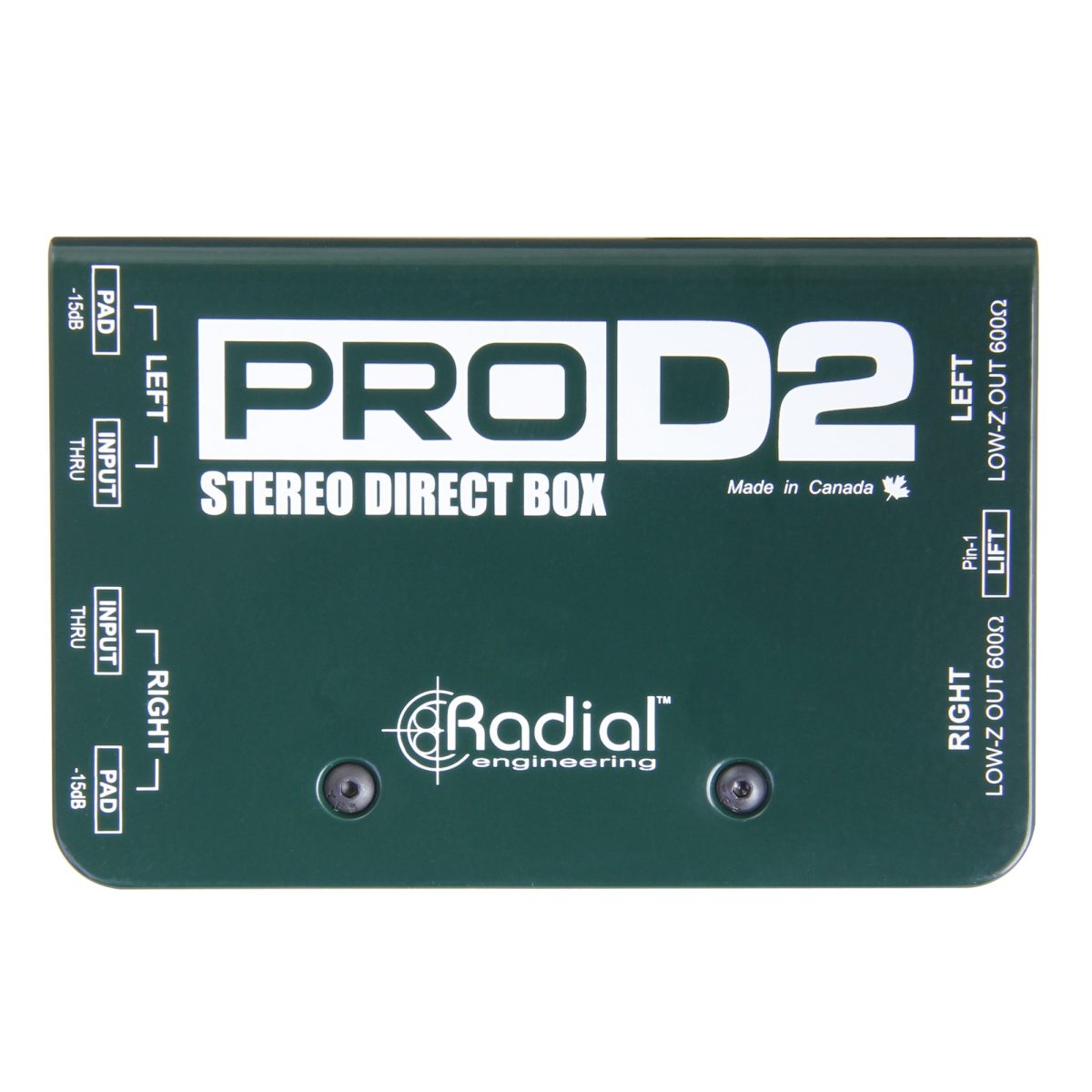

Radial - ProD2 Stereo Passive Direct Box
Stereo Passive Direct Box
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
World class DI
At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.https://www.youtube.com/watch?v=Mhc2RyaEczM
Features
- Great sounding, rugged passive DI
- High performance custom-wound transformer
- -15dB PAD for wide range of input levels
- Ground lift switch eliminates ground loop hum
Applications
- ProDI for acoustic guitars and bass guitars
- ProD2 for stereo keyboards and drum machines
- Interface consumer audio with pro gear
- Eliminates buzz and hum caused by ground loops
Cool stuff
- Ultra-tough design, to last a lifetime
- 'Plug & play' easy-to-use
- Completely passive, no power needed
- 3 year transferable warranty
ProD2 Applications
ProD2 with Stereo Keyboard
The ProD2 is designed for stereo devices like keyboards. Simple, straight ahead hookup makes it easy to connect your keys to your recording system for great stereo sound!ProD2 with Instruments
Two Radial ProDI direct boxes in one, multi instrumentalists rejoice! The ProD2 is perfectly well suited for bass, acoustic guitar or just about any instrument with a pickup.ProD2 with Drums & Samplers
Driving the output from a sampler or electronic drum machine to the PA system has never been easier. The ProD2 delivers plenty of headroom and lets you connect a local DJ mixer too.ProD2 as a splitter
Take the mono output from your keyboard and patch it into Ch 1, use the THRU on Ch 1 to send a split signal to Ch 2. Voila! Two isolated mic level outputs to send to FOH and Monitors!
Specifications |
|
| Audio circuit type: | Passive, transformer based |
| Transformer: | Eclipse ET-DB2, 12:1 ratio |
| Number of channels: | 2 |
| Frequency response: | 20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range: | 128dB |
| Total harmonic distortion: | 0.01% from 20Hz~20kHz @-10dB |
| Phase Deviation: | 1° @ 100Hz; 8° @ 20Hz |
| Input Impedance: | 140k Ohms, unbalanced |
| Output Impedance: | 150 Ohms, balanced |
| Maximum Input: | +18dB @ 20Hz |
Features |
|
| Input pad, 180° polarity reverse, Ground lift | |

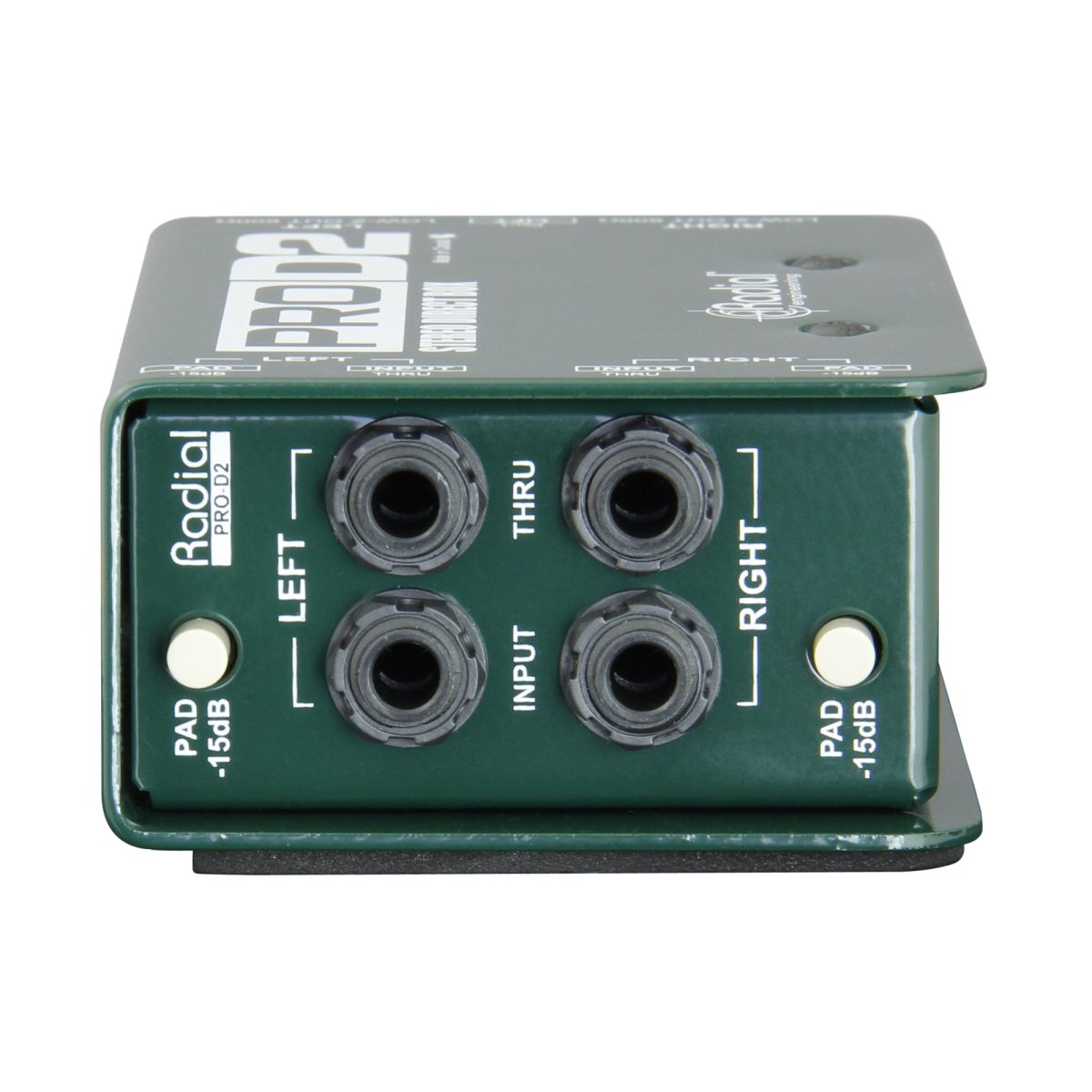

| Input Connectors: | 1/4" |

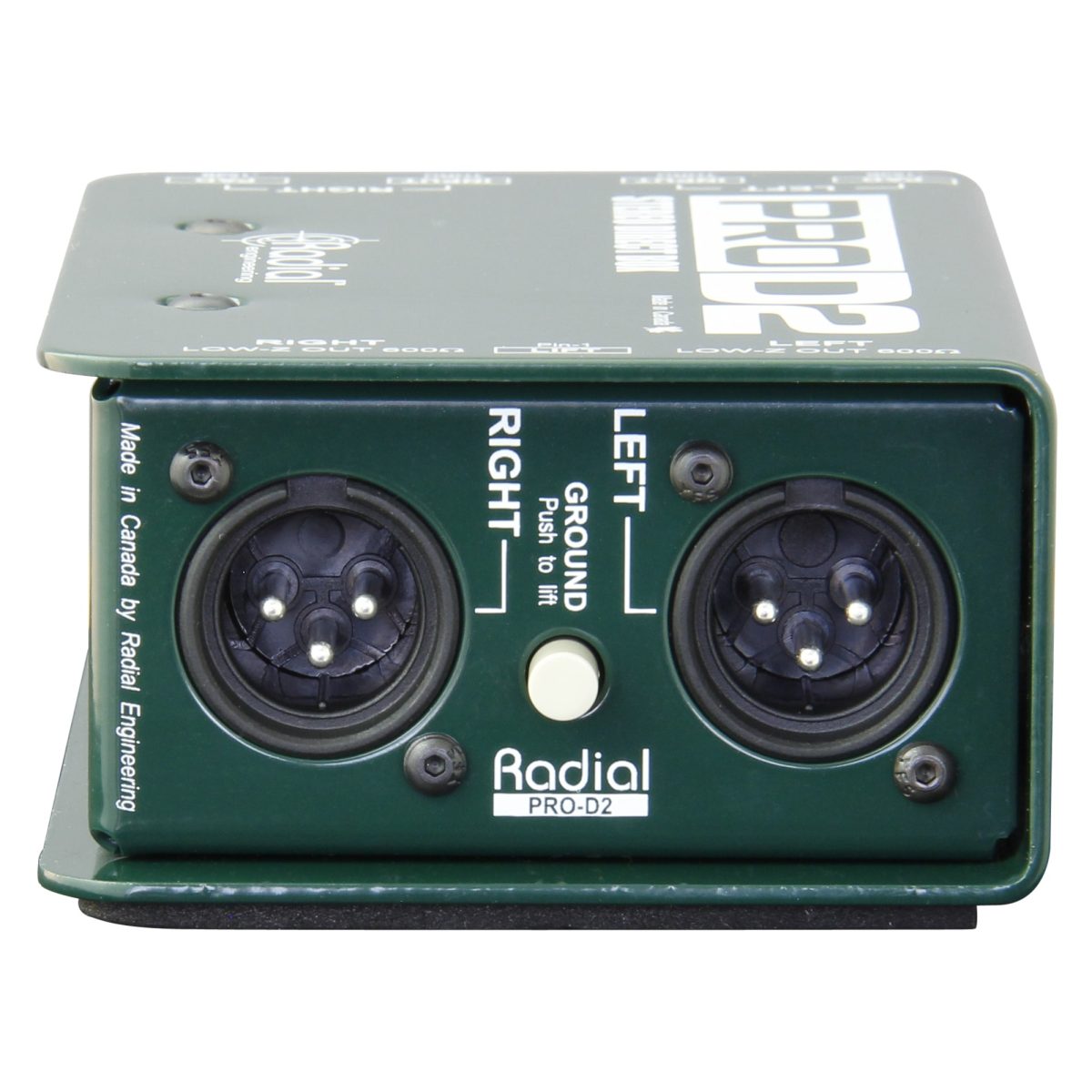

| Output Connectors: | XLR, 1/4" thru |
General |
|
| Construction: | 14 gauge steel chassis & outer shell |
| Size (L x W x D): | 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) |
| Weight: | .54kg (1.2lbs) |
| Shipping size (L x W x D): | 6.5" x 4" x 3" (165mm x 102mm x 76mm) |
| Shipping weight: | 0.61 kg (1.35 lbs) |
| Power: | Passive, no power required |
| Conditions: | For use in dry locations only between 5°C and 40°C |
| Warranty: | Radial 3-year, transferable |
