PreSonus - HP60 6-Channel Headphone Mixing System #2777400204
With the PreSonus® HP60 six-channel headphone distribution system, you can easily provide headphone mixes your musicians will love. That's because the HP60 is more than a set of headphone amplifiers: It's a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
HP60 6-Channel Headphone Mixing Systems
Features

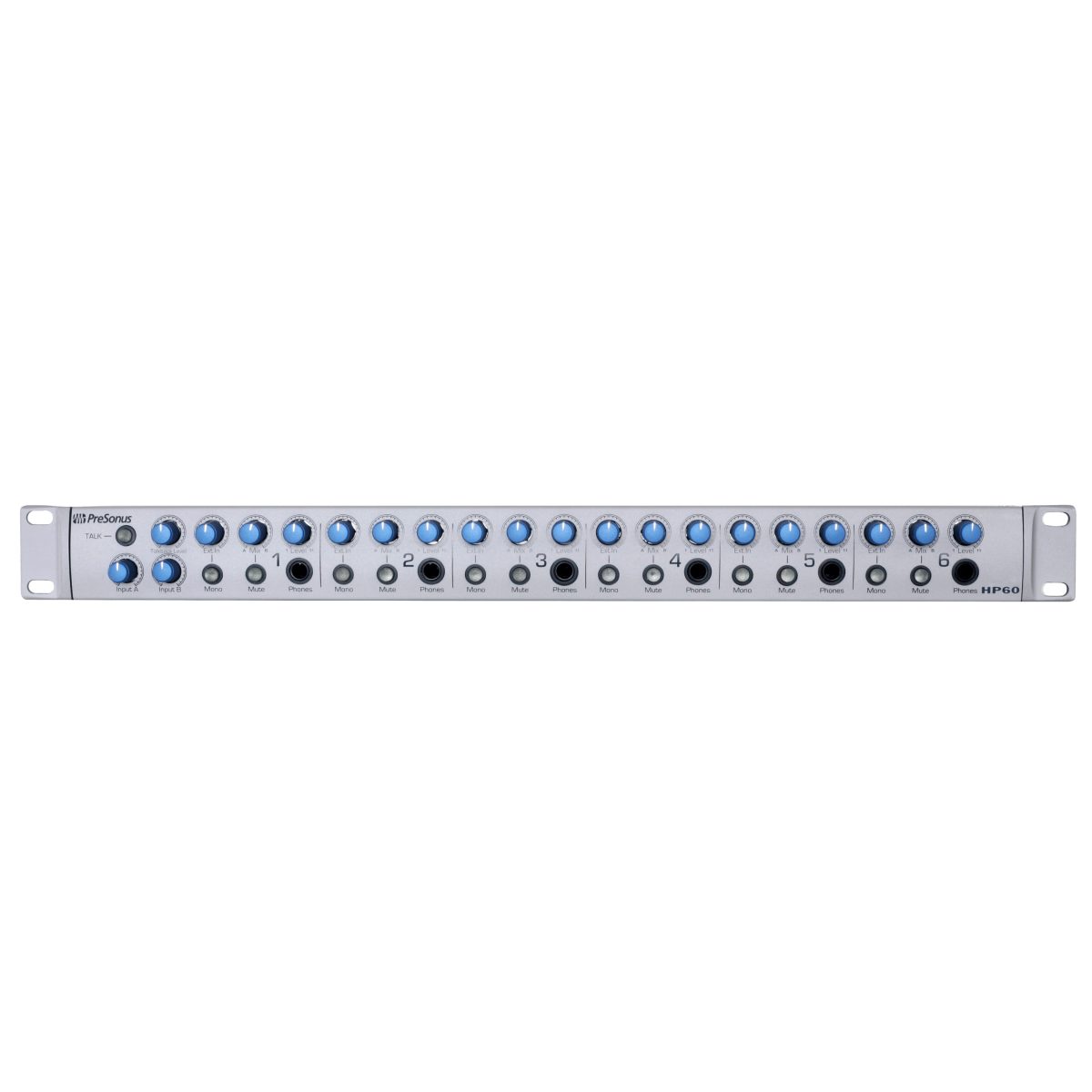

- 6 screaming-loud (150 mW/channel) front-panel headphone outputs

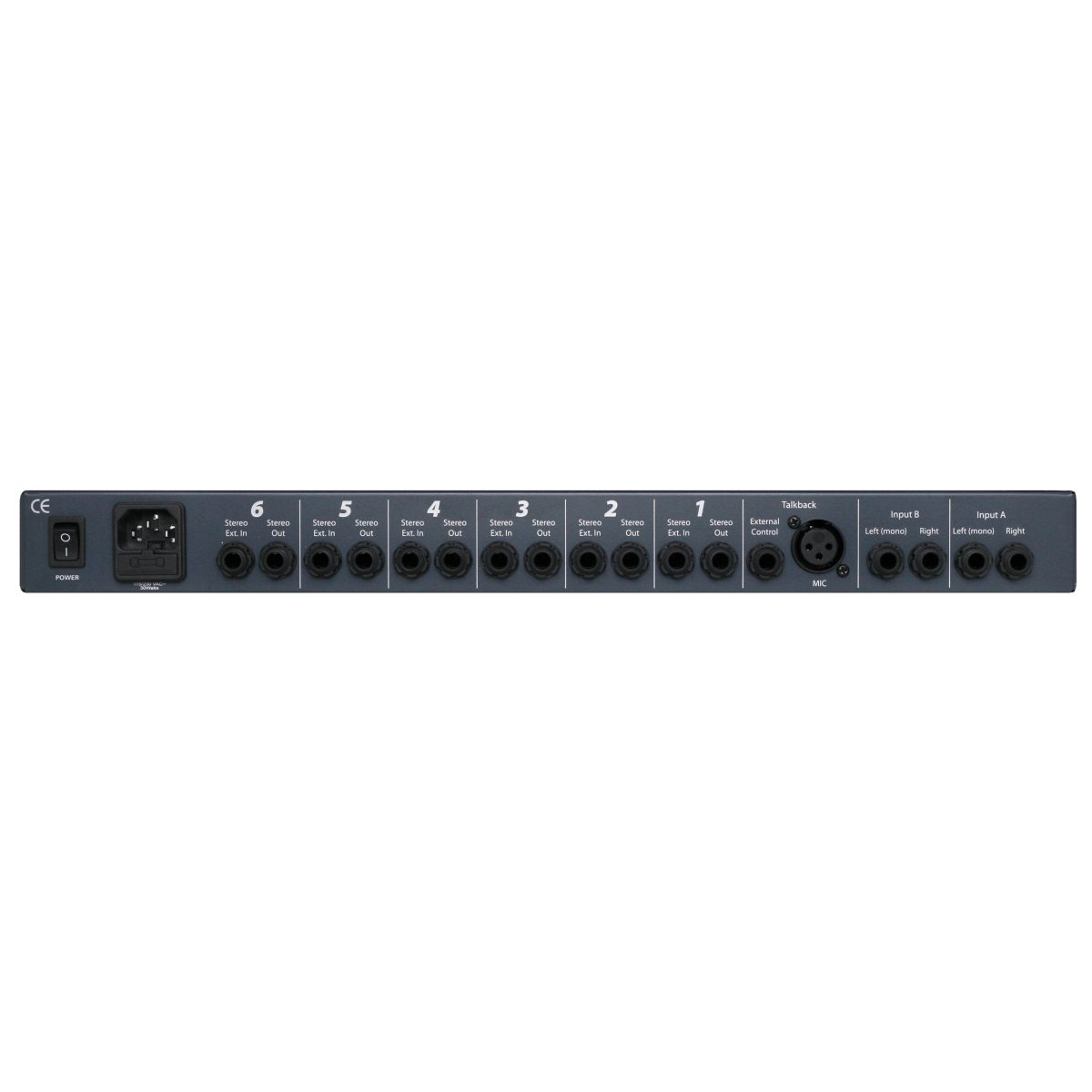

- 6 unbalanced stereo ¼-inch line outputs (1 per channel); carries a copy of the channel mix
- 6 unbalanced stereo ¼-inch external line inputs (1 per channel) for "more me," with trim controls
- 2 stereo input channels (A and B) with 4 balanced ¼-inch line inputs (L/R Mix input pairs
- 1 balanced XLR Talkback input for external dynamic microphone
- 1 ¼-inch footswitch jack for hands-free Talkback operation
- Channel controls: External input level, Headphone level for each headphone output, Mix A/B control (blends signals from input pairs A and B), Mono switch for external input and Mute switch for input pairs A and B
- Master controls: Input A level, Input B level, Talk button (momentary switch) and Talkback-mic level

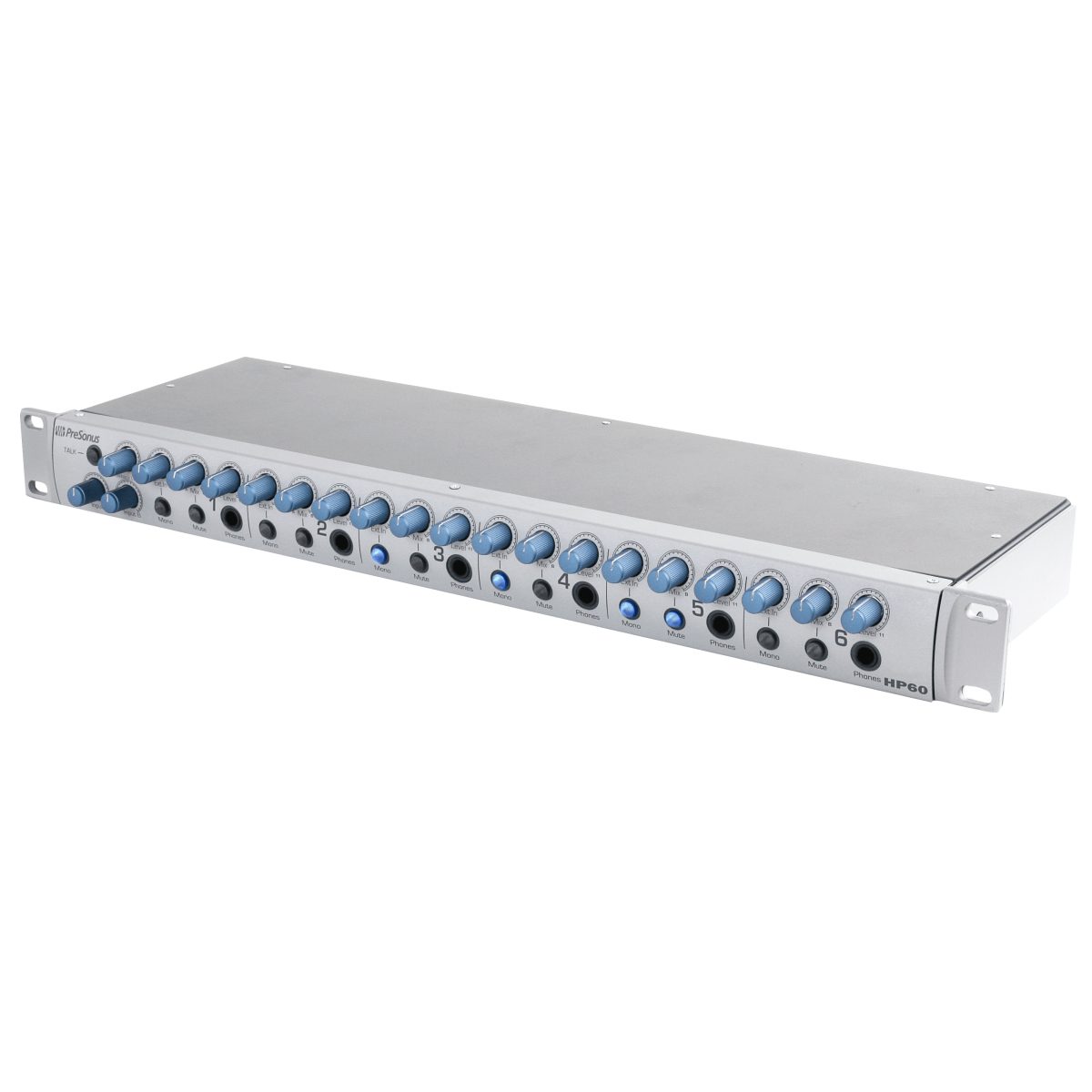

- 1U 19-inch rack-mountable, rugged steel chassis
- Internal power supply with standard IEC connector
Specs |
|
Electronics |
|
| VoltageRequirements | 100-240 VAC, 50-60 Hz |
General |
|
| Color | Silver |
| Product Name | HP60 6-Channel Headphone Mixing System, Silver |
| Series | Headphone Amplifiers |
Inputs |
|
| Headphone Amplifier Input Connection Type | 1/4" TRS, Balanced |
| Headphone Amplifier Input Impedance | 10 kΩ |
Measurements |
|
| Product Depth | 5.5" (139.7 mm) |
| Product Height | 1.75" (44.45 mm) |
| Product Height/Length | 1.75" (44.45 mm) |
| Product Width | 19" (483mm) |
Miscellaneous |
|
| Power Cable | IEC |
Output |
|
| Headphone Outputs Frequency Response | 20 Hz - 20 kHz, ±0.5 dB, 60Ω Load |
| Headphone Outputs Impedance Working Range | 32Ω to 600Ω |
| Headphone Outputs Maximum Output | 150 mW/Ch. |
