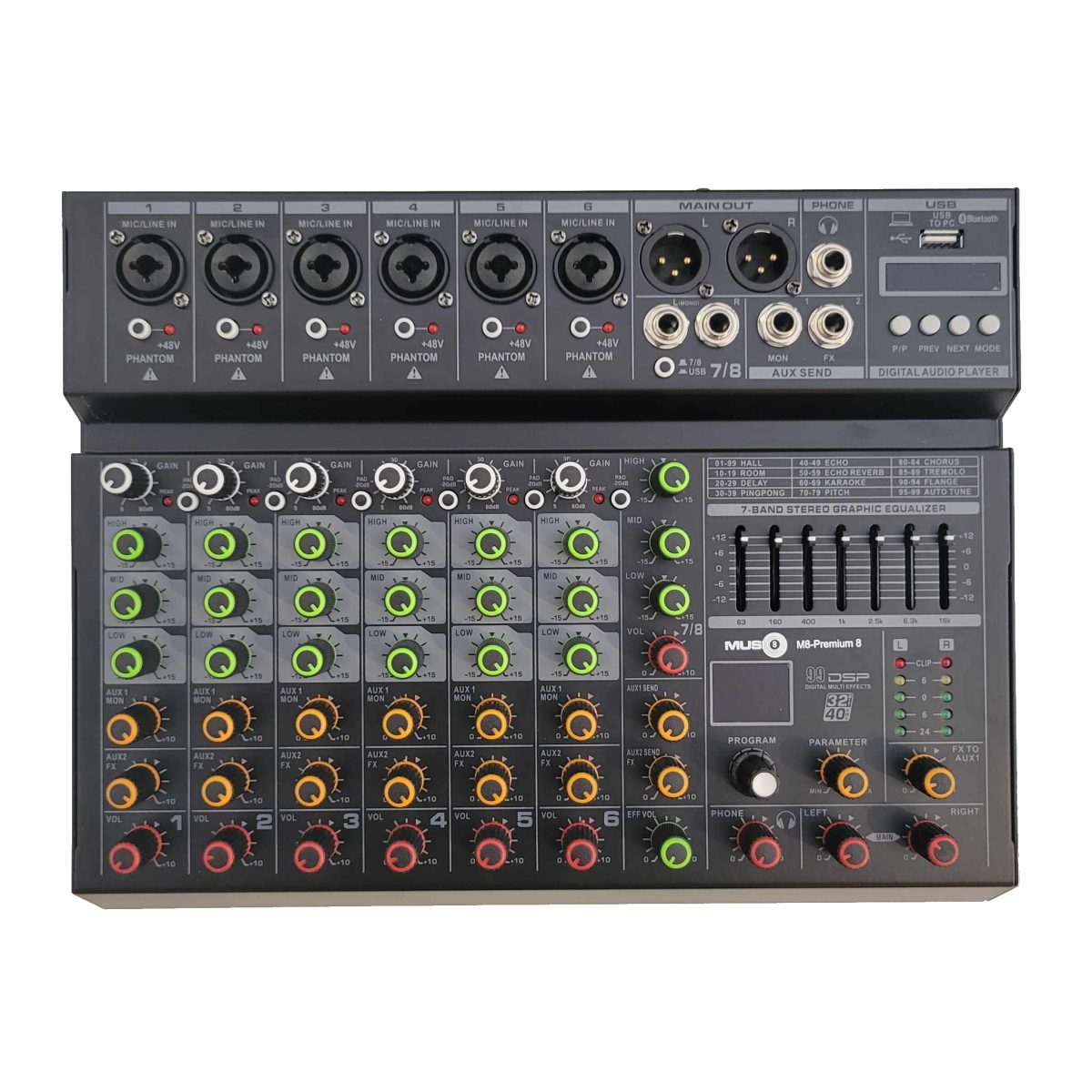

Music 8 - PREMIUM 8-Channel Professional Bluetooth USB Mixer

MIC/LINE: Connects to a microphone, musical instrument or external audio device. Multi-function jacks support XLR balanced input jacks and 1/4 TRS jacks. PHANTOM: When the PHANTOM power switch is turned on, the 48V light will be on, DC +48V PHANTOM power supply will be supplied to the XLR plug on the MIC/LINE input jack. Turn this switch on when using capacitive microphones that require phantom power. If the phantom power is not needed, be sure to turn this switch off. GAIN: The GAIN knob adjust the basic volume of the channel. The adjustment range is XLR (0-60dB) 1/4 TRS socket (-15-45dB). PEAK: PEAK light, PK indicator light will point when the input signal deficit level reaches 3dB below the drain level. If it lights up, adjust the GAIN knob to the left to reduce the volume and avoid level peaking distortion. PAD: Attenuation switch. When the Key is pressed, the input signal is reduced by 20dB to adapt to large dynamic signal input. EQ: EQ equalizer knob HIGH to the leftmost end of 12KhZ-15dB, to the right most end of 12KhZ+15dB to the rightmost end. LOW is adjusted to 80HZ-15dB to the leftmost end. To the far right, it is adjusted to 80 Hz+15dB. If you do not need to adjust the sound quality, you can set the knob to the middle position. MON: Auxiliary knob, which controls the signal of each channel to be sent to MON output. FX: Effect auxiliary knob, control each channel signal sent to the machine effect. And FX auxiliary output. VOL: Channel volume control knob, minimum volume when turned leftmost, maximum volume +10dBwhen turned rightmost. 7/8CH USB Button: Used to switch signals between 5/6 and USB. VOL: Stereo volume control knob, minimum volume when turned leftmost, maximum volume +10dB when turned rightmost. EFF VOL: Effector volume output control knob, minimum volume when turned leftmost, maximum volume +10dB when turned rightmost. Graphic Equalizer 7. Adjust the frequency band as needed to achieve satisfactory sound quality. 5-Segment LED level display is used to observe the level. When the CLIP light is on, it means that the signal is close to distortion, and the signal should be reduced. LED digital tube display for 1-99 effect types. PROGRAM knob, used to select the effect type, rotate right to add, rotate left to subtract, press down to confirm the selected effect type. PARAMETERT: Adjust the effect parameter. FK TO AUX1: Control knob, the volume is minimum when it is turn TO the leftmost and maximum when it is turned TO the rightmost. PHONE Headset volume control: adjusts the volume of the headset. PHONE Headset output jack for 1/4 TRS headphones. MAIN: MAIN Channel volume output control faders. When the volume is down to the minimum, the volume is up to +10dB. MAIN OUT Indicates the MAIN outputs signal. MON Outputs an auxiliary signal. FX Outputs an auxiliary signal. POWER switch. When you press this switch, the POWER is switched on. Type-C power socket, used to supply 5V-2000mA power to the machine. USB port, used for playing digital audio signals collected by U disk.

MP3/BLUETOOTH Command

STOP: stop play (Put an the switch of STOP 2 seconds to recording. Keep to put 2 seconds to STOP recording. Put on the coder 2 seconds can be exchange the recording file and U-DISK music. PLAY: play music PREV: last song NEXT: next song REP: single orcycle play PROGRAM Dial You can select the MP3 preset by turning the PROGRAM control. The Display flashes with the number of current preset. To recall the selected preset, press on the button; the flashing stops.
