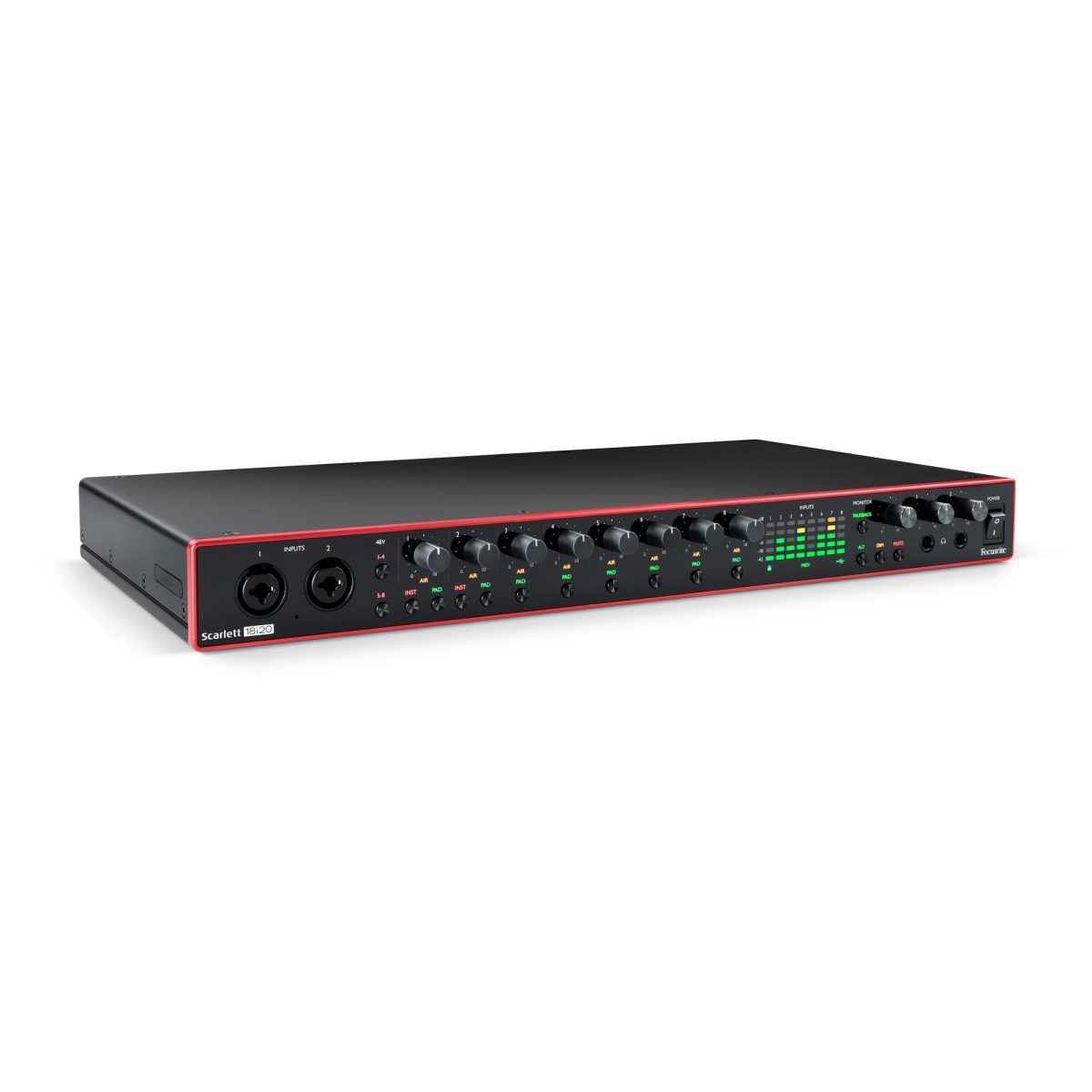

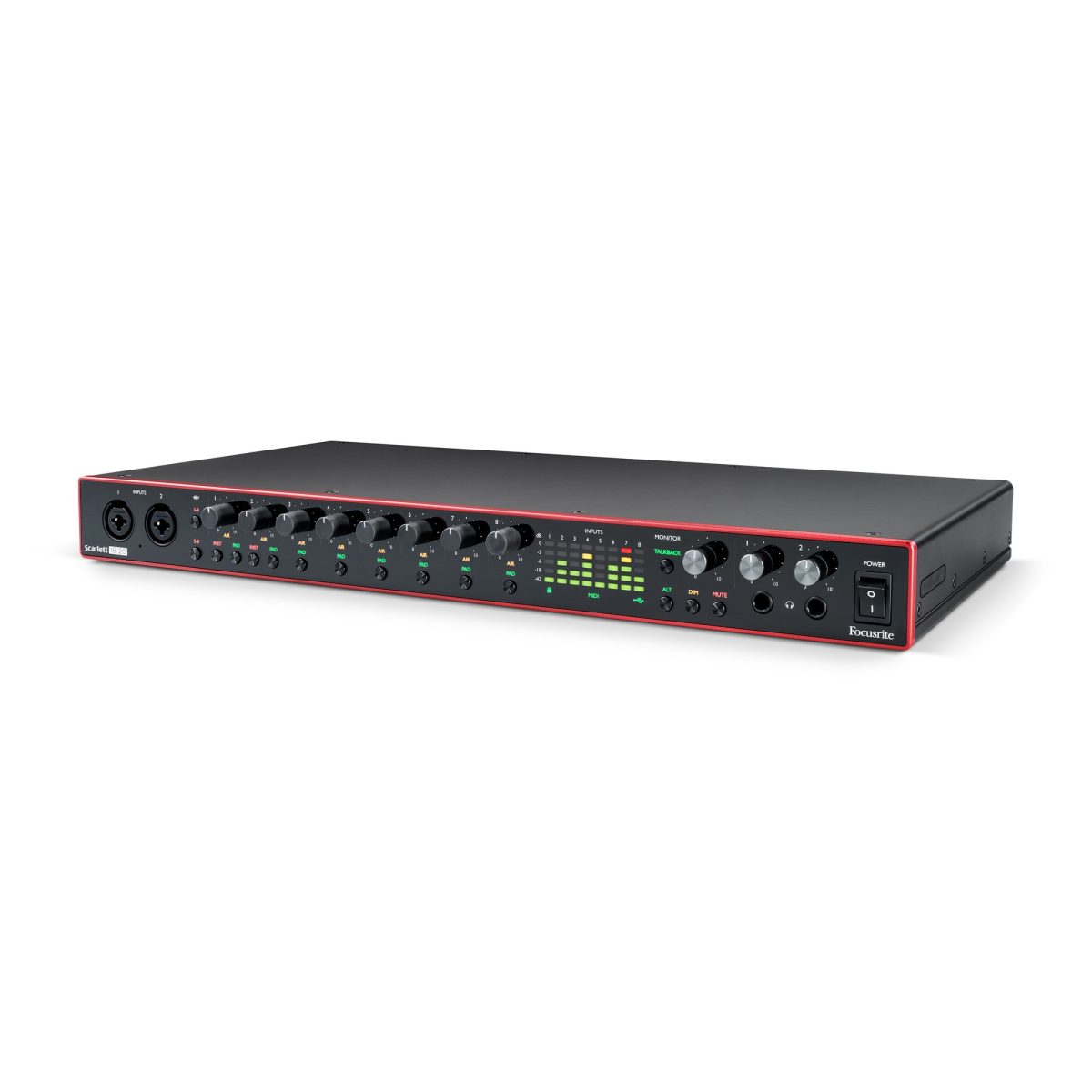

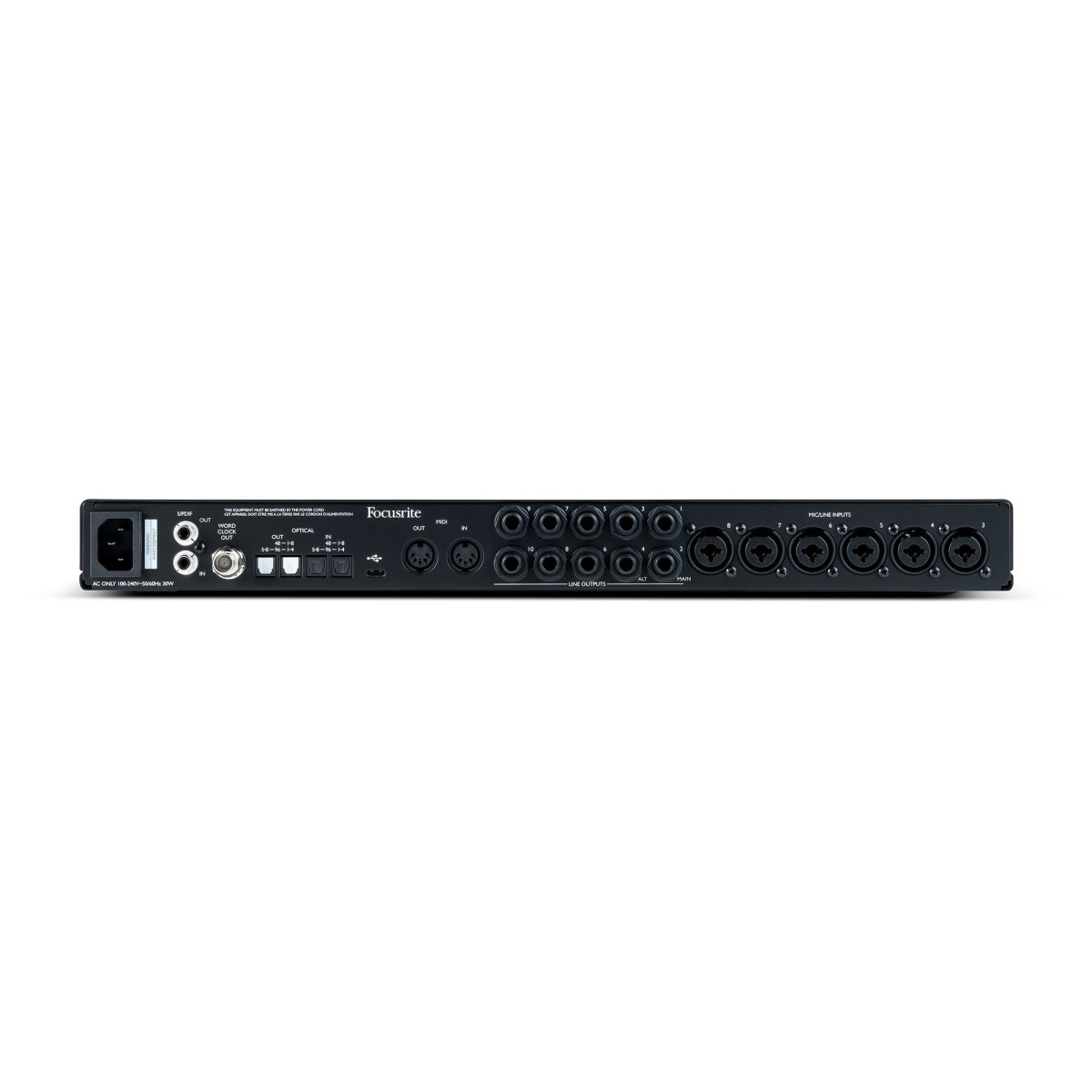

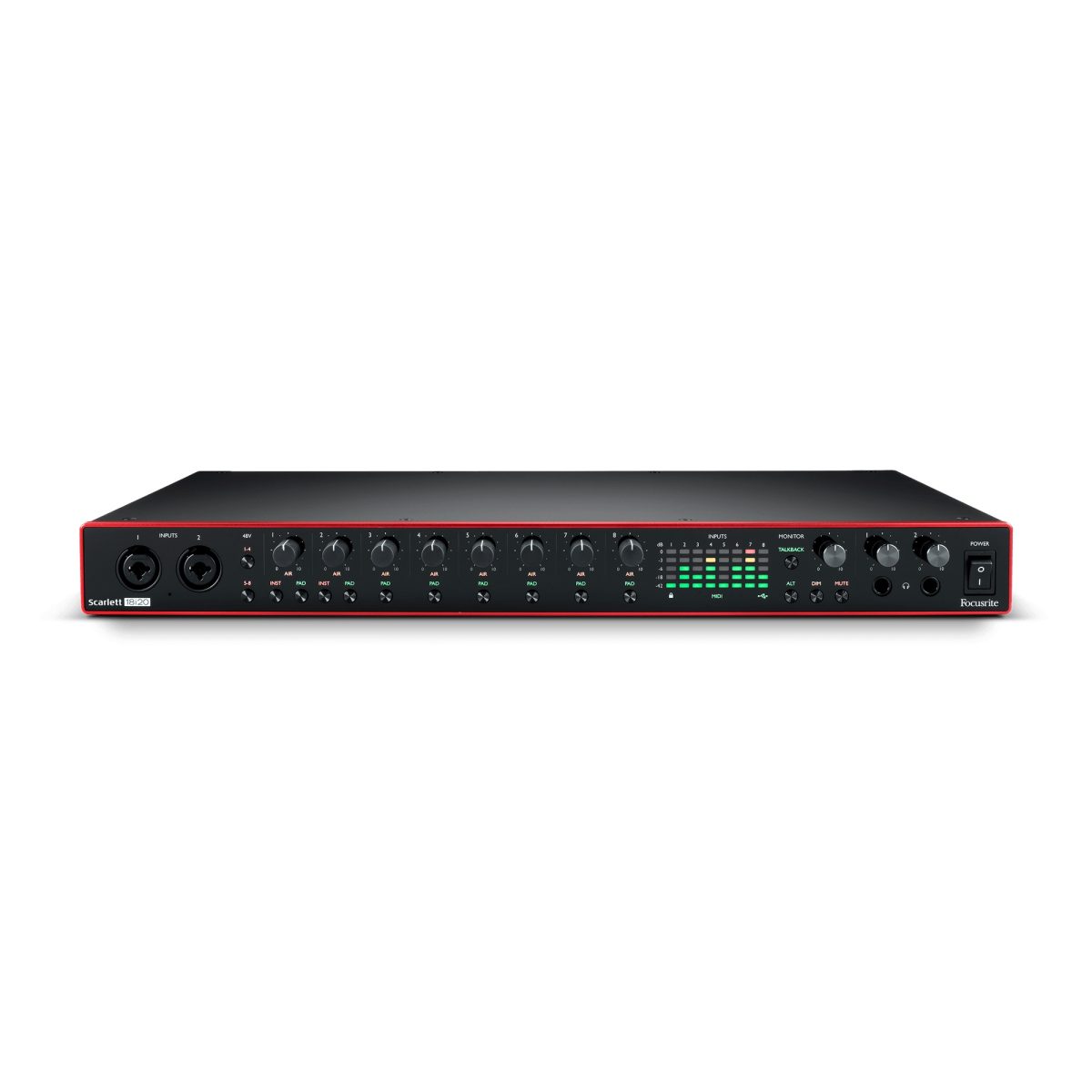

Focusrite - Scarlett 18i20 3rd Gen USB Audio Interface
The heart of your setup. High channel count. Professional quality audio. Pro features, including talkback mic and speaker switching. 18i20 makes any space a studio.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FEATURES
- Eight inputs and ten outputs; eight 3rd Generation mic pres, two Hi-Z instrument inputs, and ten balanced outputs plus ADAT input and output for up to eight more channels each way.
- Air Mode breathes life into vocals and acoustic instruments.
- 24-bit/192 kHz converters deliver studio-quality sound.
- Two powerful headphone outputs with independent level controls.
- Focusrite Control makes it easy to route audio and create the perfect monitor mix.
- Loopback makes streaming and sampling simple.
- Built-in talkback mic.
- Flexible connectivity, with MIDI and S/PDIF.
- USB-C connectivity, compatible with MacOS and Windows.
- Includes Ableton Live Lite, three months of Pro Tools Artist, and the Hitmaker Expansion, with plugins from Antares, Softube, Landr, XLN Audio and more.
- Three-year warranty and award-winning customer support for life.
| Specifications in detail | |
| Overview | |
| Connectivity | USB type-C |
| Protocol | USB 2.0 |
| Form factor | Rack mount (1U) |
| Simultaneous I/O | 18 x 20 |
| A/D resolution | 24-bit/192 kHz |
| Number of preamps | 8 |
| Phantom power | Yes |
| Number of pads | 8 |
| Instrument inputs | 2 |
| Line inputs | 8 |
| Analogue outputs | 10 |
| Headphone outputs | 2 |
| Main/alt speaker switching | Yes |
| Talkback | Yes |
| Digital inputs | S/PDIF and 2 x ADAT |
| Digital outputs | S/PDIF and 2 x ADAT |
| Loopback | Yes |
| MIDI I/O | Yes |
| Bus powered | No |
| Included PSU | Yes |
| Supported sample rates | |
| 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | |
| Microphone inputs | |
| Frequency response | 20Hz - 20kHz ± 0.1dB |
| Dynamic range | 111dB (A-weighted) |
| THD+N | <0.0012% |
| Noise EIN | -128dBu (A-weighted) |
| Maximum input level | 9dBu (at minimum gain) |
| Gain range | 56dB |
| Impedance | 3kΩ |
| Line inputs | |
| Frequency response | 20Hz - 20kHz ± 0.1dB |
| Dynamic range | 110.5dB (A-weighted) |
| THD+N | <0.002% |
| Maximum input level | 22dBu (at minimum gain) |
| Gain range | 56dB |
| Impedance | 60kΩ |
| Instrument inputs | |
| Frequency response | 20Hz - 20kHz ± 0.1dB |
| Dynamic range | 110dB (A-weighted) |
| THD+N | <0.03% |
| Noise EIN | 12.5dBu (at minimum gain) |
| Maximum input level | 9dBu (at minimum gain) |
| Gain range | 56dB |
| Impedance | 1.5MΩ |
| Line/monitor outputs | |
| Dynamic range (line outputs) | 108dB |
| THD+N | <0.002% |
| Maximum output level (0 dBFS) | 15.5dBu |
| Impedance | 430Ω |
| Headphone outputs | |
| Dynamic range | 104dB (A-weighted) |
| THD+N | <0.002% |
| Maximum output level | 7dBu |
| Impedance | <1Ω |
