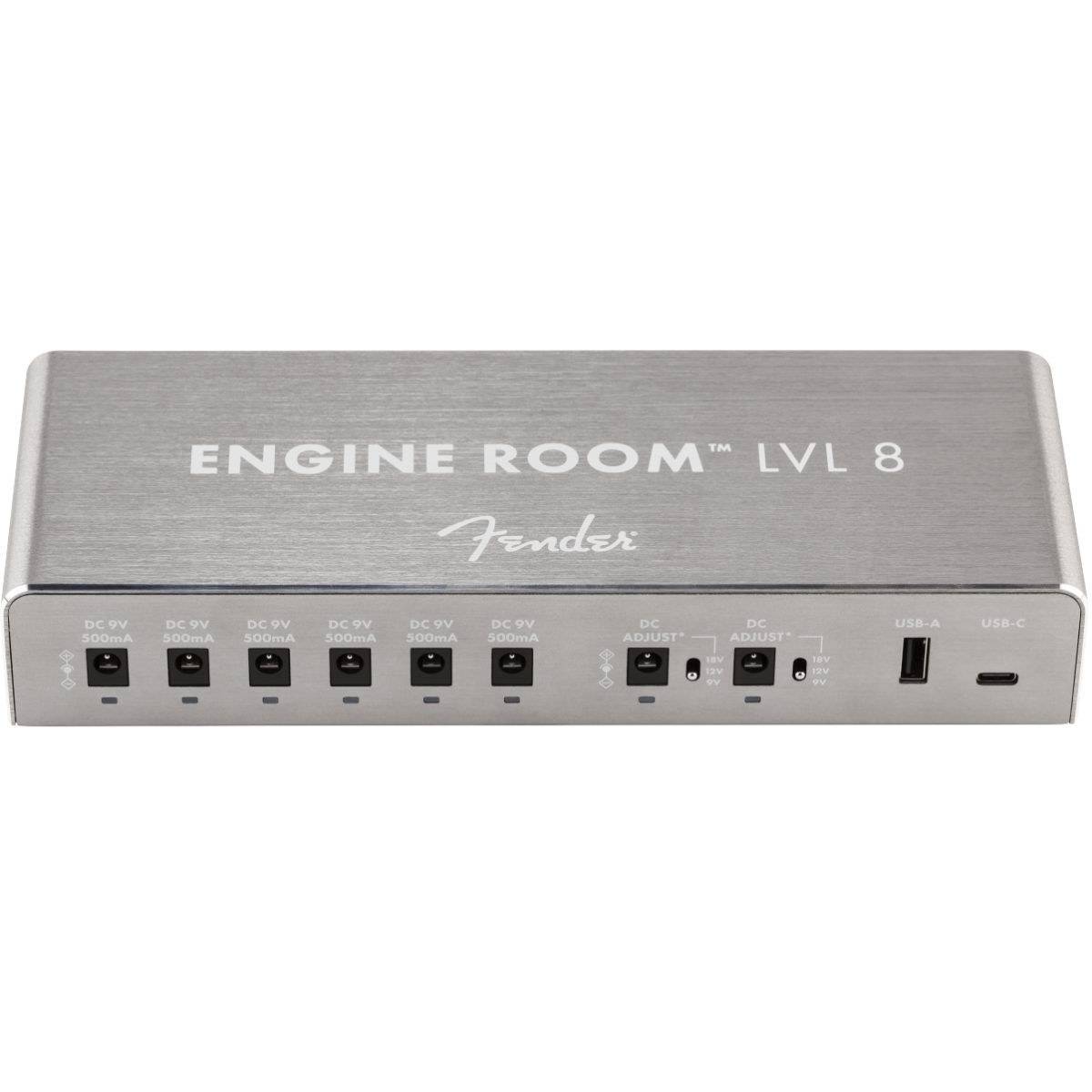

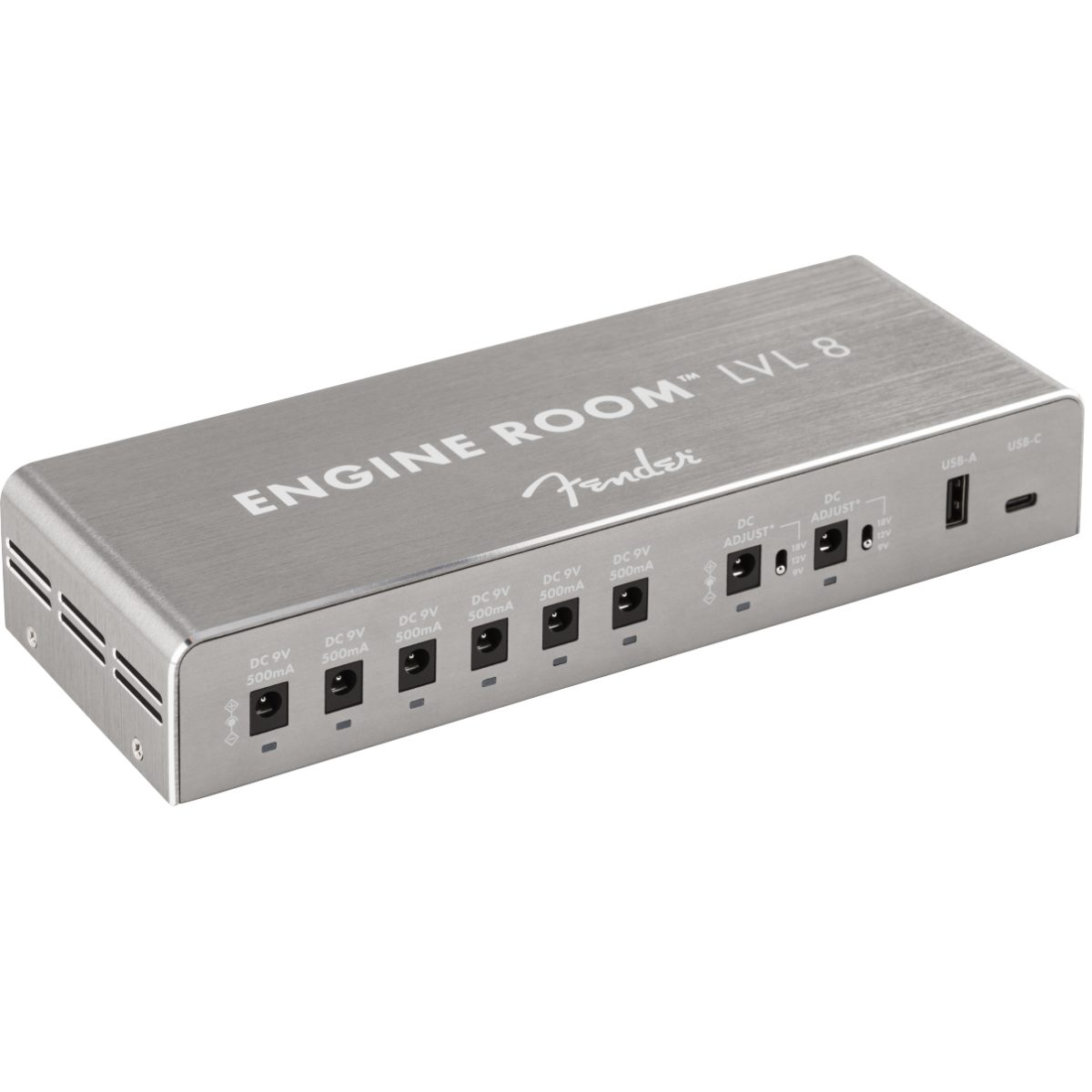

Fender - LVL8 Engine Room 120V - Power Supply - #0230100008

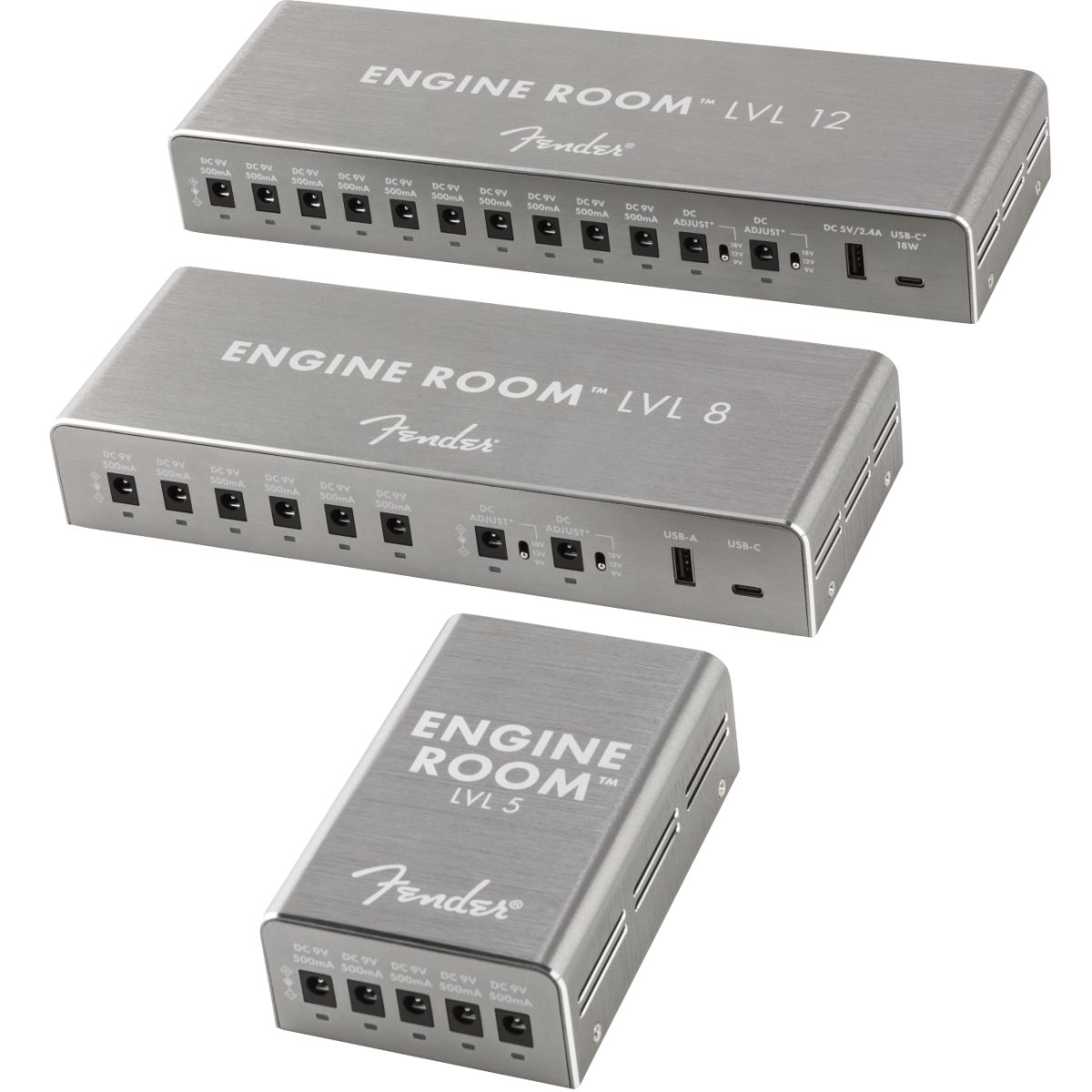

Pedals need clean isolated power and Fender’s Engine Room® LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Engine Room® LVL8 Power Supply
Features

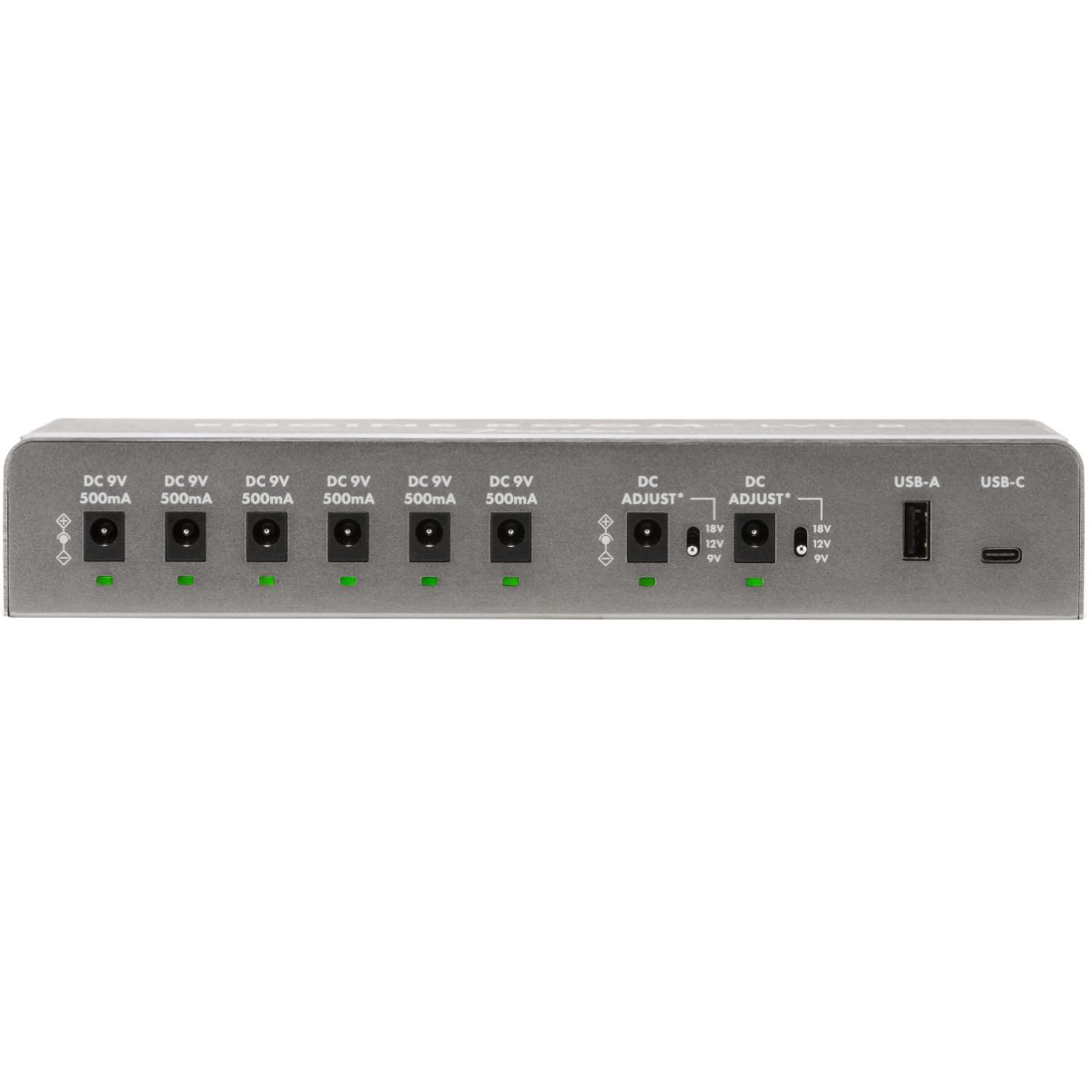

- 8 ground isolated outputs - 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
- Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world

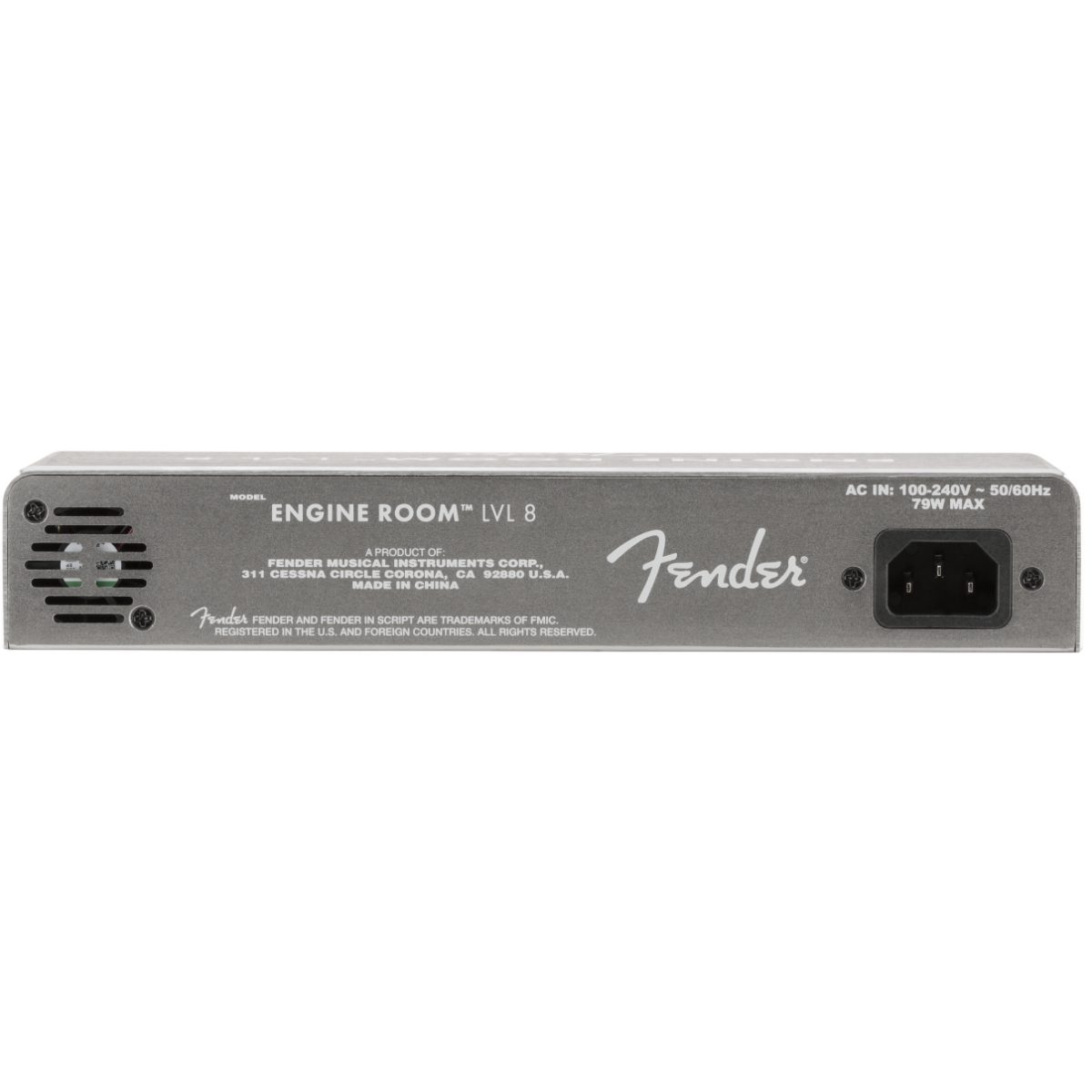

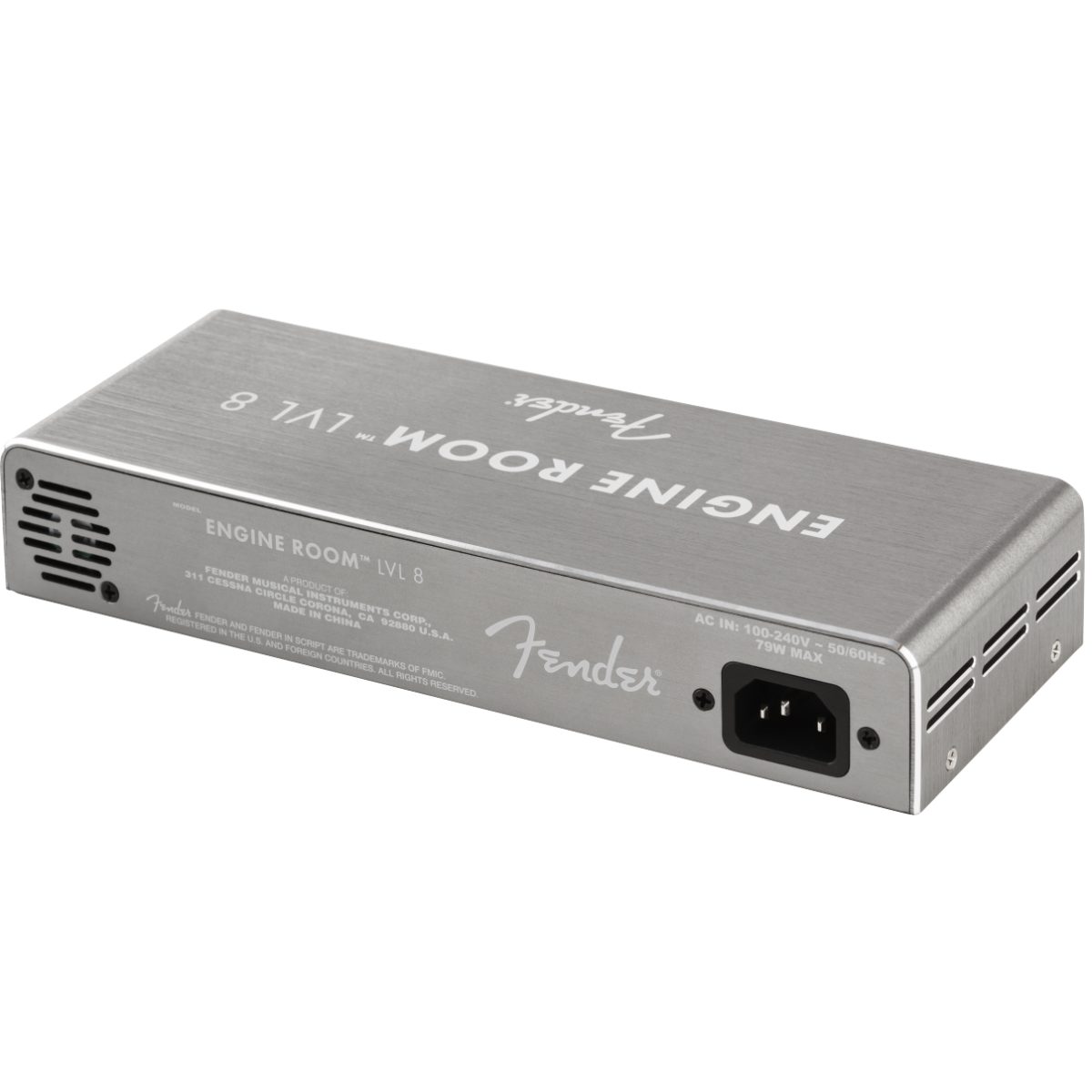

- Standard IEC mains voltage connector
- Dimensions: Width: 9.6" (244mm), Height: 1.65" (42mm), Depth: 3.59" (91.3mm)
- 5V USB-A and USBC output for charging smart devices

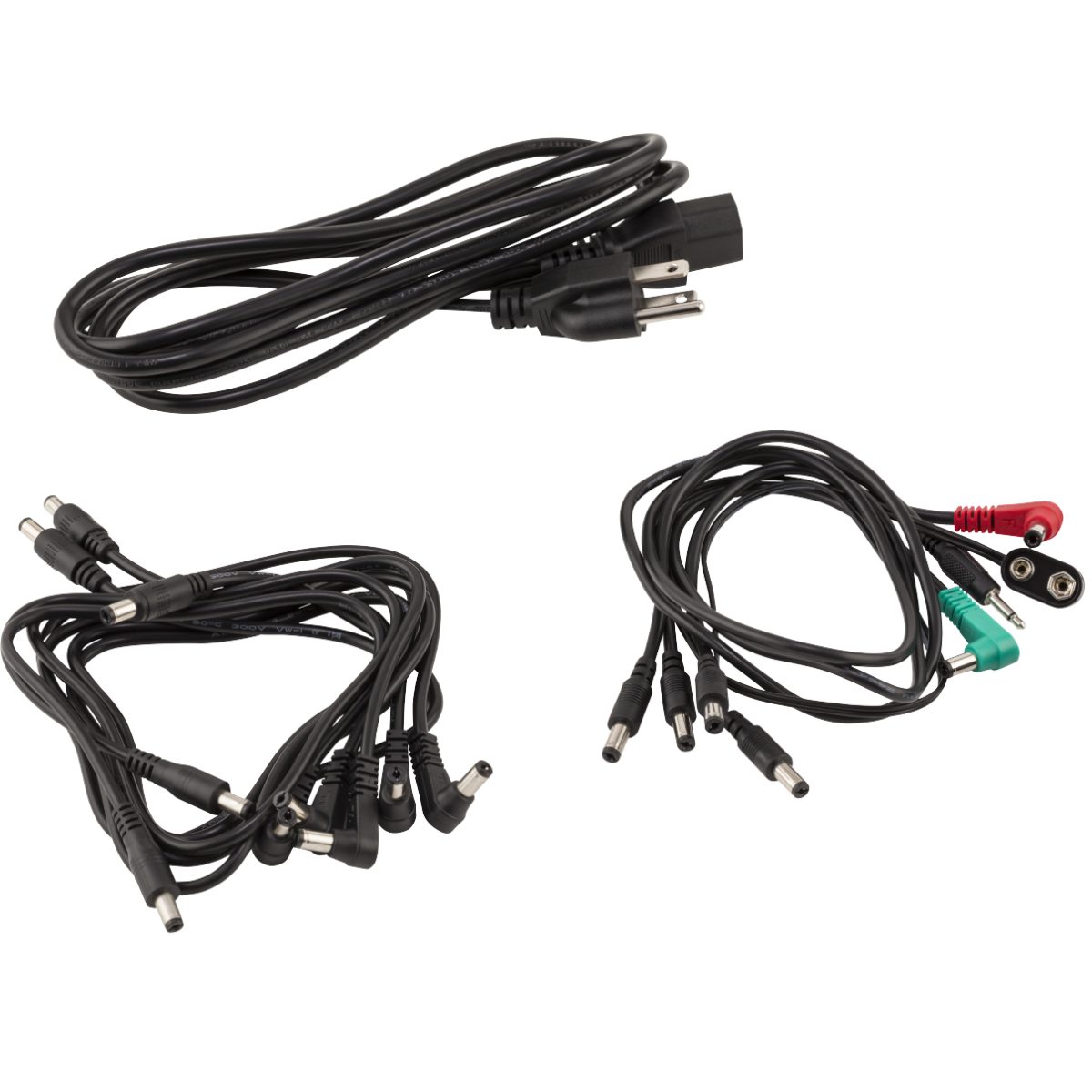

- Cable kit included:
- 4 x 2.1mm barrel connector 24" (60cm) length
- 2 x 2.1mm barrel connector 18" (45cm) length
- 2 x 2.1mm barrel connector 12" (30cm) length
- 1 x 2.5mm to 2.1mm barrel
- 1 x 2.5mm to 2.1mm barrel reverse polarity
- 1 x 3.5mm TS to 2.1mm barrel
- 1 x 9V Battery clip to 2.1mm barrel
Accessories |
|
| Included Accessories | 4 x 2.1mm barrel connector 24” (60cm) length 2 x 2.1mm barrel connector 18” (45cm) length 2 x 2.1mm barrel connector 12” (30cm) length 1 x 2.5mm to 2.1mm barrel 1 x 2.5mm to 2.1mm barrel reverse polarity 1 x 3.5mm TS to 2.1mm barrel 1 x 9V Battery clip to 2.1mm barrel |
Electronics |
|
| Output | 8 - Ground Isolated Outputs; 6 (9V/500mA), 2 Switchable (9V/500mA, 12V/375mA, 18V/250mA) |
General |
|
| Color | Gray |
| Material | Anodized Aluminum |
| Product Name | Engine Room™ LVL8 Power Supply, 120V |
| Series | Engine Room® |
Measurements |
|
| Product Depth | 3.59” (91.3mm) |
| Product Height | 1.65” (42mm) |
| Product Width | 9.6” (244mm) |
Miscellaneous |
|
| Case Pack Qty | 6 |
| Power Cable | 6.6 ft (2 m) IEC |
