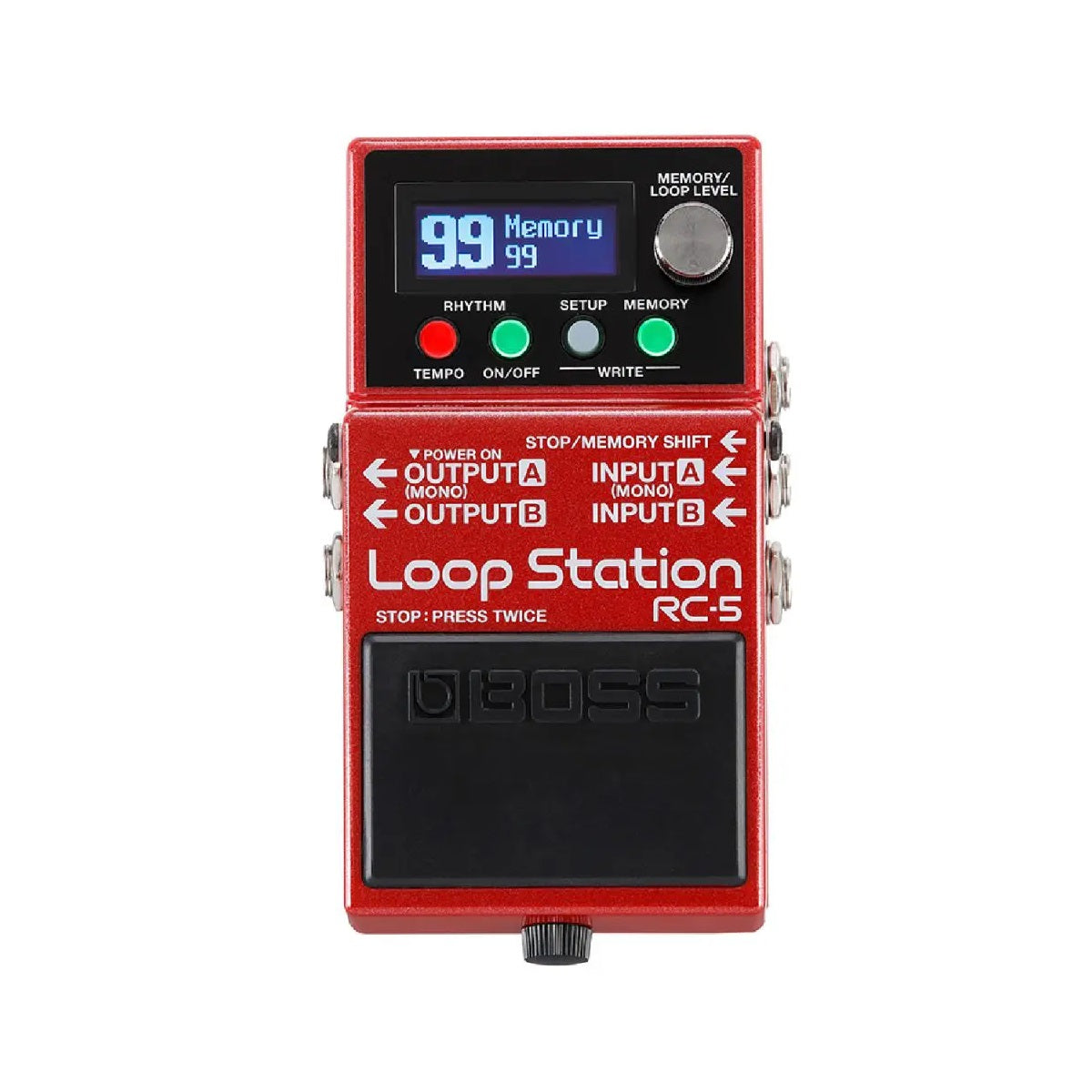

Boss - RC-5 Loop Station
- Advanced BOSS looping features in a compact footprint
- Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
- Stereo looper engine with 13 hours of recording time
- LCD with multi-color backlight for viewing loop status and editing parameters
- Reverse function for infusing loops with interesting textures
- Seven different drum kits and 57 preset rhythms with A/B variations
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Onboard storage for 99 phrase memories
- Back up and load WAV loops via USB
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Sampling Frequency | 44.1 kHz | |
| AD/DA Conversion | 32 bits | |
| Processing | 32-bit floating point | |
| Recording/Playback | Number of Track: 1 | |
| Data Format: WAV (44.1 kHz, 32-bit float, stereo) | ||
| Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories) | ||
| Rhythm Type | 57 Patterns x 2 Variations | |
| Rhythm Kit | 7 types | |
| Effect | Reverb (only for rhythm part) | |
| Memory | 99 | |
| Nominal Input Level | INPUT A/MONO, B: -20 dBu | |
| Input Impedance | INPUT A/MONO, B: 1 M ohm | |
| Nominal Output Level | OUTPUT A/MONO, B:-20 dBu | |
| Output Impedance | OUTPUT A/MONO, B: 1 k ohm | |
| Recommended Load Impedance | OUTPUT A/MONO, B: 10 k ohms or greater | |
| Bypass | Buffered bypass | |
| Controls | MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch | |
| Display | Graphic LCD (96 x 32 dots, RGB backlit LCD) | |
| Connectors | INPUT A/MONO, B jacks: 1/4-inch phone type | |
| OUTPUT A/MONO, B jacks: 1/4-inch phone type | ||
| STOP/MEMORY jack: 1/4-inch TRS phone type | ||
| USB port: USB B type | ||
| MIDI (IN, OUT) jacks: stereo miniature type | ||
| DC IN jack | ||
| Power Supply | Alkaline battery (9 V, 6LR61 or 6LF22) | |
| AC adaptor (PSA series: sold separately) | ||
| Current Draw | 170 mA | |
| Expected battery life under continuous use | Alkaline: Approx. 2 hours | |
| *These figures will vary depending on the actual conditions of use. | ||
| Accessories | Owner's manual | |
| Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") | ||
| Alkaline battery (9 V, 6LR61 or 6LF22) | ||
| Options (sold separately) | AC adaptor: PSA-S series | |
| Footswitch: FS-5U | ||
| Dual Footswitch: FS-6, FS-7 | ||
| Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 | ||
| TRS/MIDI connecting cable: BMIDI-5-35 | ||
| SIZE AND WEIGHT | ||
| Width | 73 mm | 2-7/8 inches |
| Depth | 129 mm | 5-1/8 inches |
| Height | 56 mm | 2-1/4 inches |
| Weight (including battery) | 450 g | 1 lb |
| * 0 dBu = 0.775 Vrms | ||
| *The specifications are subject to change without notice. |
