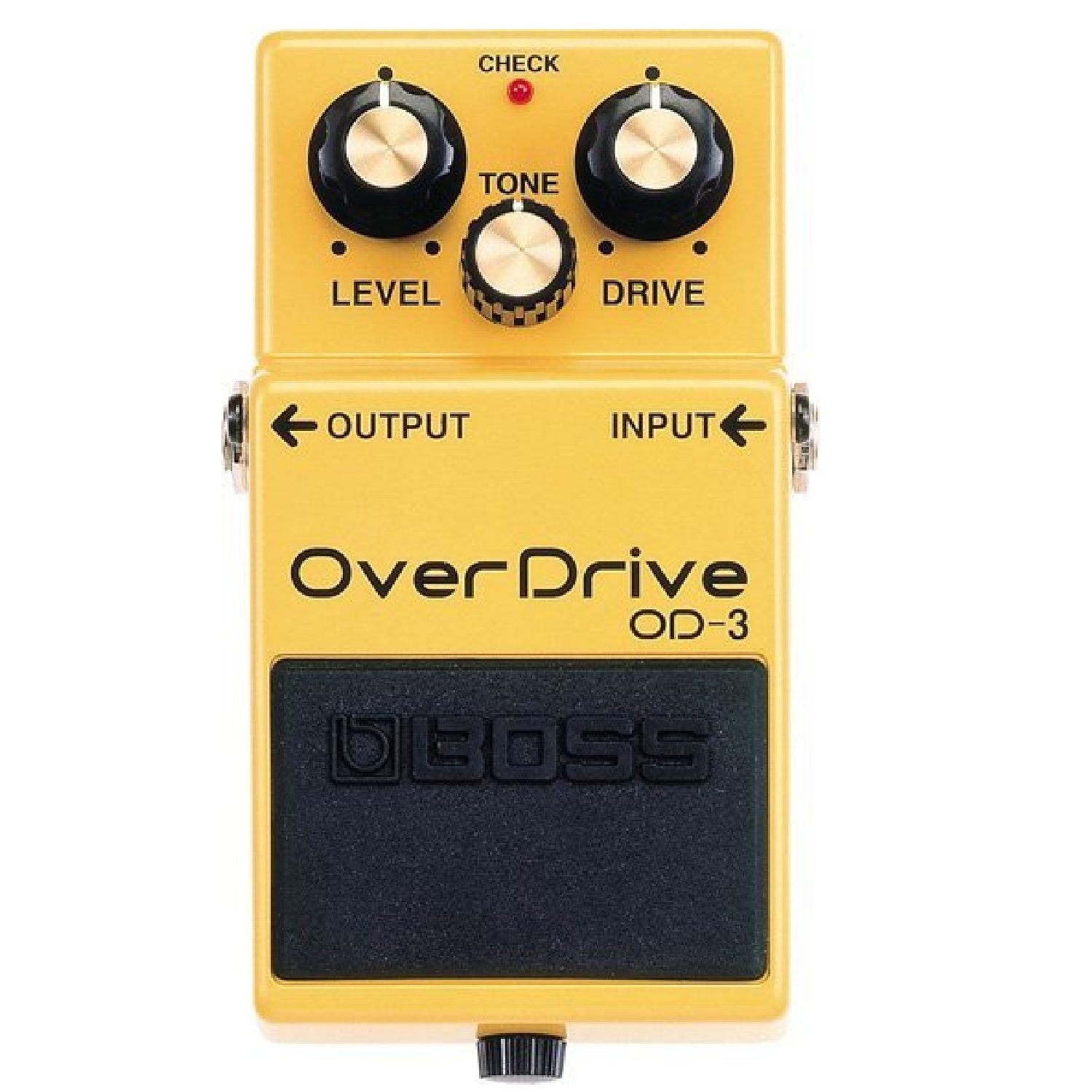

Boss - OD-3 OverDrive
Natural Overdrive with Endless Sustain!
Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.- Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
- Increased dynamics yield a "bigger" sound than any previous BOSS overdrive pedal
- Dynamic, non-muffled tones reminiscent of classic overdriven "stack" amps
- Straightforward Drive, Tone and Level controls
- BOSS five-Year Warranty
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
OD-3 OverDrive |
|
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | DRIVE knob |
| TONE knob | |
| LEVEL knob | |
| Pedal switch | |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type |
| OUTPUT jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) |
| AC adaptor (PSA series: sold separately) | |
| Current Draw | 15 mA |
| Expected battery life under continuous use | Carbon: Approx. 34.5 hours |
| Alkaline: Approx. 56 hours | |
| *These figures will vary depending on the actual conditions of use. | |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
| Carbon-zinc battery (9 V, 6F22) | |
| Options (sold separately) | AC adaptor: PSA series |
Size and Weight |
|
| Width | 73 mm |
| 2-7/8 inches | |
| Depth | 129 mm |
| 5-1/8 inches | |
| Height | 59 mm |
| 2-3/8 inches | |
| Weight (including battery) | 370 g |
| 14 oz | |
| * 0 dBu = 0.775 Vrms | |
| *The specifications are subject to change without notice. |
