CH-1 Super Chorus

Nominal Input Level -20 dBu
Input Impedance 1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls DEPTH knob
RATE knob
EQ knob
E.LEVEL knob
Pedal switch
Indicator CHECK indicator (Used for indication of check battery)
Connectors INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack
Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw 55 mA
Expected battery life under continuous use Alkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately) AC adaptor: PSA series

Size and Weight

Width 73 mm
2-7/8 inches
Depth 129 mm
5-1/8 inches
Height 59 mm
2-3/8 inches
Weight (including battery) 420 g
15 oz
* 0 dBu = 0.775 Vrms
* The specifications are subject to change without notice.

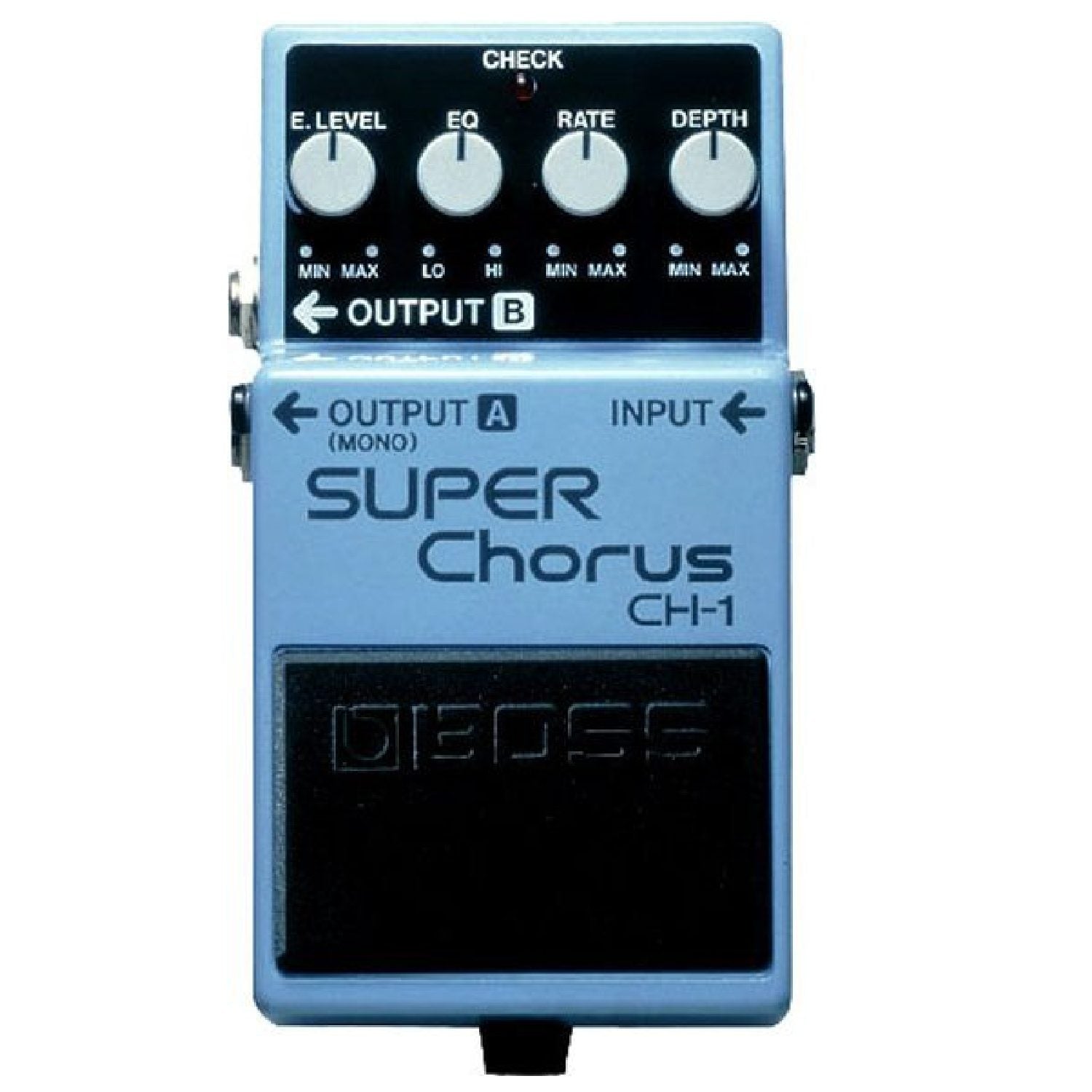

Boss CH-1

Boss - CH-1 Super Chorus

Regular price $189.99
Sale price $189.99 Regular price $189.99
