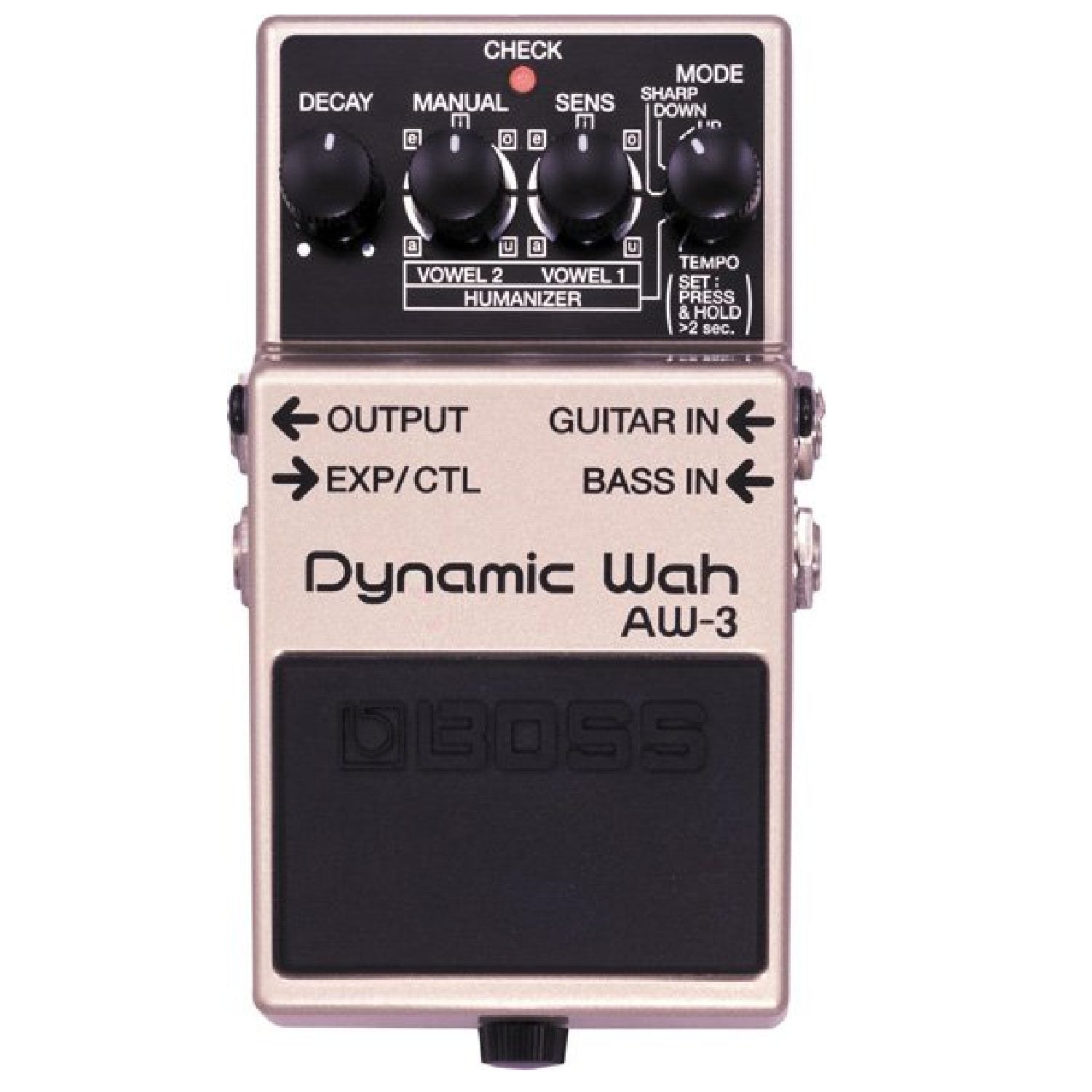

Boss - AW-3 Dynamic Wah
Unbelievable “Talking” Wah Effects!
The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Features
- Compact pedal creates a variety of classic "wah" effects
- Dynamic wah sounds provide variable effect based on picking strength
- "Humanizer" effect creates human voice-type vowel sounds
- Dedicated Bass input for processing bass guitar
- EXP Pedal mode allows wah control via optional expression pedal
- Tempo can be set for pedal control or at fixed rate via Manual mode
- BOSS five-year warranty
A “Talking” Pedal
The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds through a new “Humanizer” Mode. Of course, you can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.Endless Possibilities
Choose from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input permits direct processing of bass guitars.
AW-3 Dynamic Wah |
|
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MODE knob |
| SENS knob | |
| MANUAL knob | |
| DECAY knob | |
| Pedal switch | |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | GUITAR IN jack: 1/4-inch phone type |
| BASS IN jack: 1/4-inch phone type | |
| OUTPUT jack: 1/4-inch phone type | |
| EXP/CTL jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Alkaline battery (9 V, 6LR61) |
| AC adaptor (PSA series: sold separately) | |
| Current Draw | 50 mA |
| Expected battery life under continuous use | Alkaline: Approx. 8 hours |
| *These figures will vary depending on the actual conditions of use. | |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
| Alkaline battery (9 V, 6LR61) | |
| Options (sold separately) | AC adaptor: PSA series |
| Expression Pedal: EV-30/FV-500H/FV-500L, Roland EV-5 | |
| Footswitch(momentary-type): FS-5U/FS-6/FS-7 | |
Size and Weight |
|
| Width | 73 mm |
| 2-7/8 inches | |
| Depth | 129 mm |
| 5-1/8 inches | |
| Height | 59 mm |
| 2-3/8 inches | |
| Weight (including battery) | 430 g |
| 1 lb | |
| * 0 dBu = 0.775 Vrms | |
| * The specifications are subject to change without notice. |
