Audio-Technica - ATW-3211N892X 3000 Series Wireless Headworn Microphone System (Network-Enabled)
Regular price
$1,399.00
Sale price
$1,399.00
Regular price
$1,399.00
Shipping calculated at checkout.

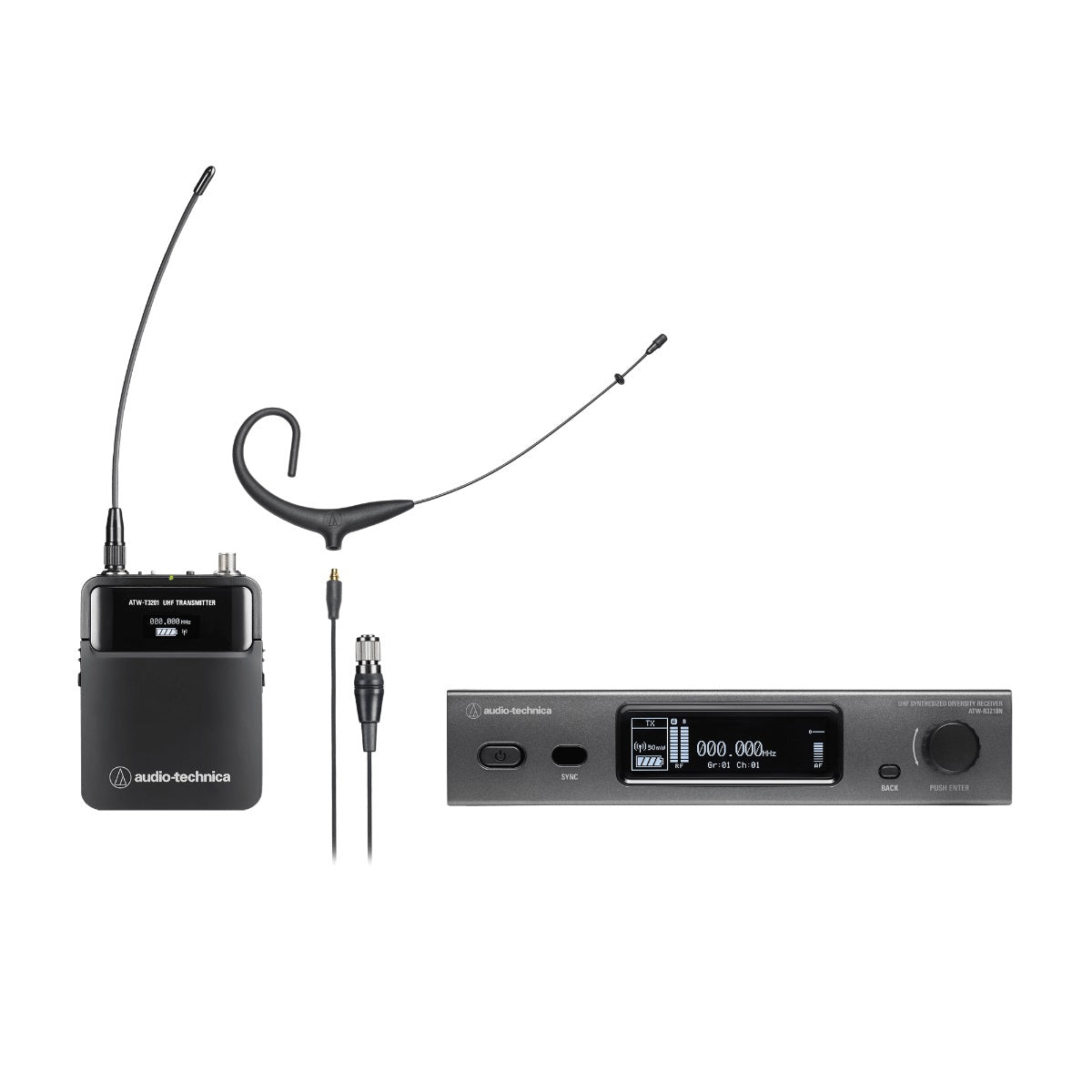

ATW-R3210N network-enabled receiver and ATW-T3201 body-pack transmitter with BP892xcH MicroSet omnidirectional condenser headworn microphone. Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.
Special Order
Contact us for estimated delivery time
Not available for in-store pickup
Please contact us to get more information
Couldn't load pickup availability
Limited time offer
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
BP892x - Subminiature Omnidirectional Condenser Headworn Microphone
Audio-Technica’s high-SPL BP892x MicroSet® offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892x hooks securely behind either ear and can be worn for hours without fatigue. For maximum stability and comfort, the included AT8464x dual-ear adapter kit converts the MicroSet to a dual-ear-worn unit.
- Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
- Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
- Ergonomic under-ear design – the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
- Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations
- Handles high sound pressure levels with ease
- Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
- Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort
- Constructed of hypoallergenic materials

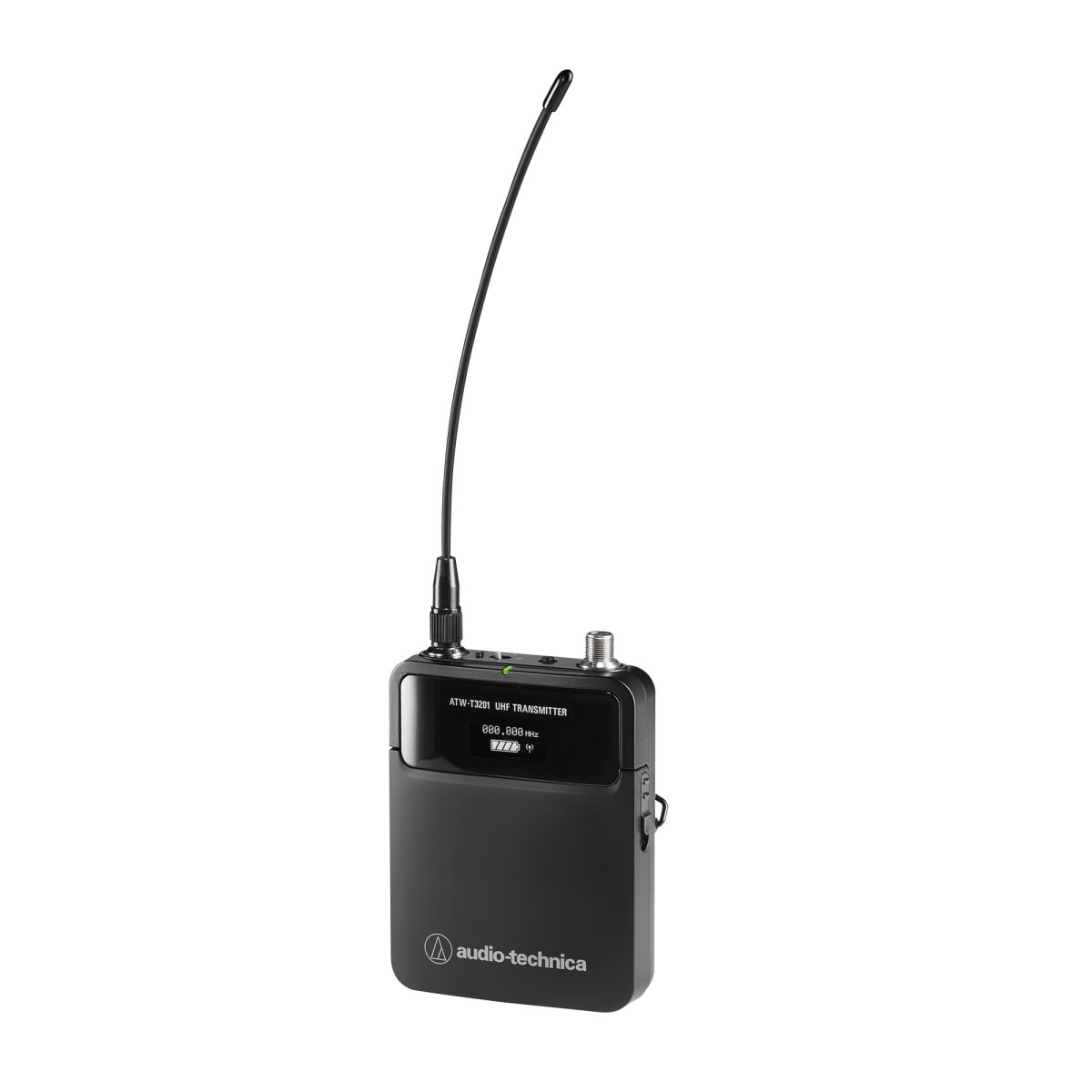

ATW-T3201 - 3000 Series (fourth generation) body-pack transmitter
- Unique multifunction button can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- Rugged cH-style connector provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
- Tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
- Charging terminals work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
- OLED screens for optimal readout of key settings and alerts

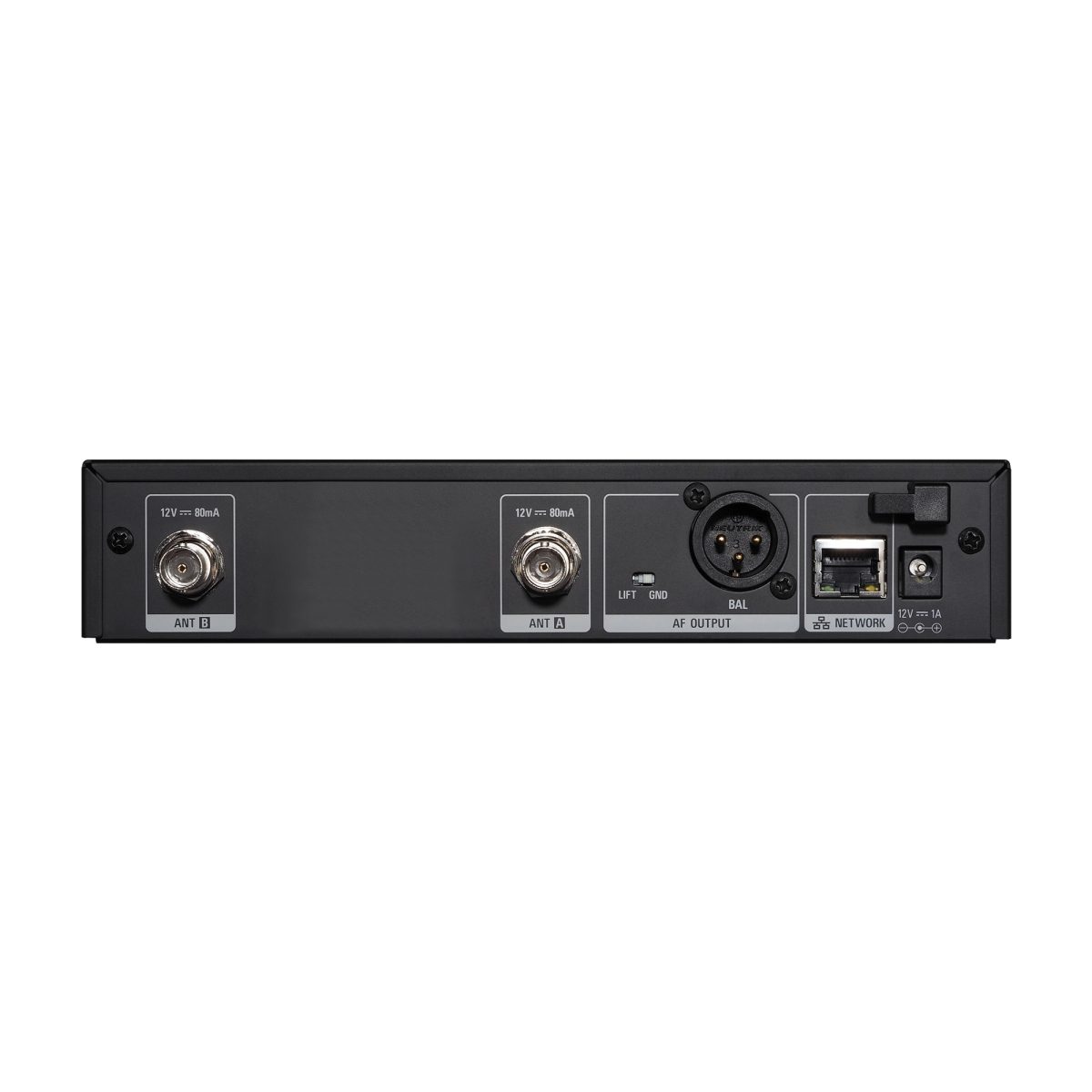

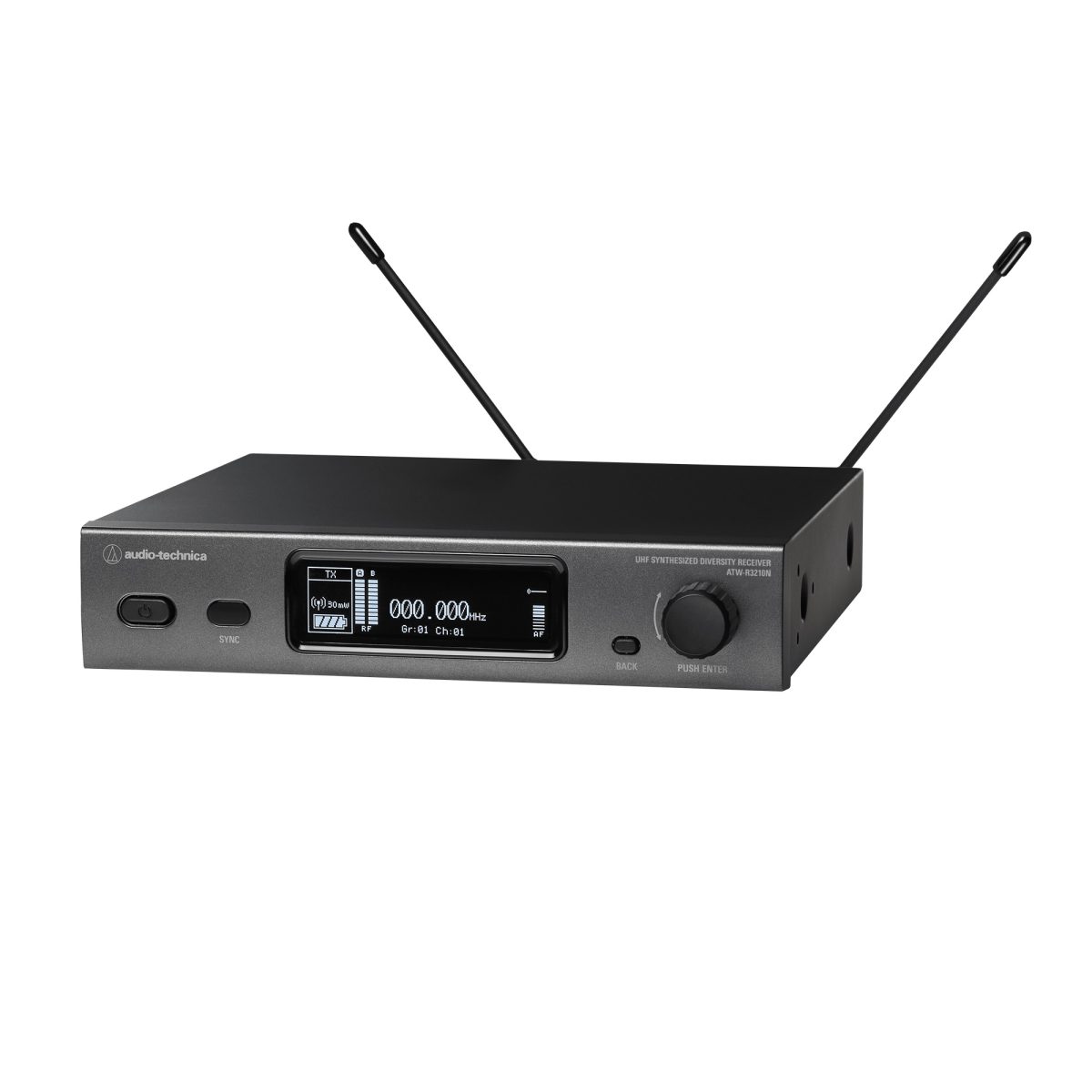

ATW-R3210N - 3000 Series (fourth generation) network-enabled receiver
- Network-enabled receiver offers network monitoring and control via Wireless Manager software
- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment.
- True Diversity operation reduces dropouts
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Receiver include OLED screens for optimal readout of key settings and alerts
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced audio output jack
Overall System |
|
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) |
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations. |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%) |
| ATW-T3202: ±36 kHz (THD:10%) | |
| Frequency Response | ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element |
| Operating Range | 100 m (328') |
| Open range environment with no interfering signals. | |
| Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range | -5° C to +45° C (23° F to 113° F) |
| Simultaneous Use | 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
Handheld Transmitter |
|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following Federal and National Regulations |
| Microphone Capsule | Interchangable industry standard thread |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Dimensions | ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter |
| Net Weight | ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries |
Body Pack |
|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H) |
| Input Connections | cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Net Weight | 102 g (3.6 oz), without batteries |
| Spurious Emissions | Following Federal and National Regulations |
| High-pass (low-freq. roll-off) | 125Hz, 12dB/octave |
Receiver |
|
| Receiving System | True Diversity |
| Image Rejection | 60 dB nominal |
| RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
| Maximum Output Level | XLR, balanced: +14 dBV |
| 6.3 mm (1/4"), unbalanced: +8 dBV | |
| Antenna Input | BNC-type, 50 ohms |
| Antenna Power | 12 V DC, 160 mA (combined) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H) |
| Weight | 1100 g (38.8 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters |
