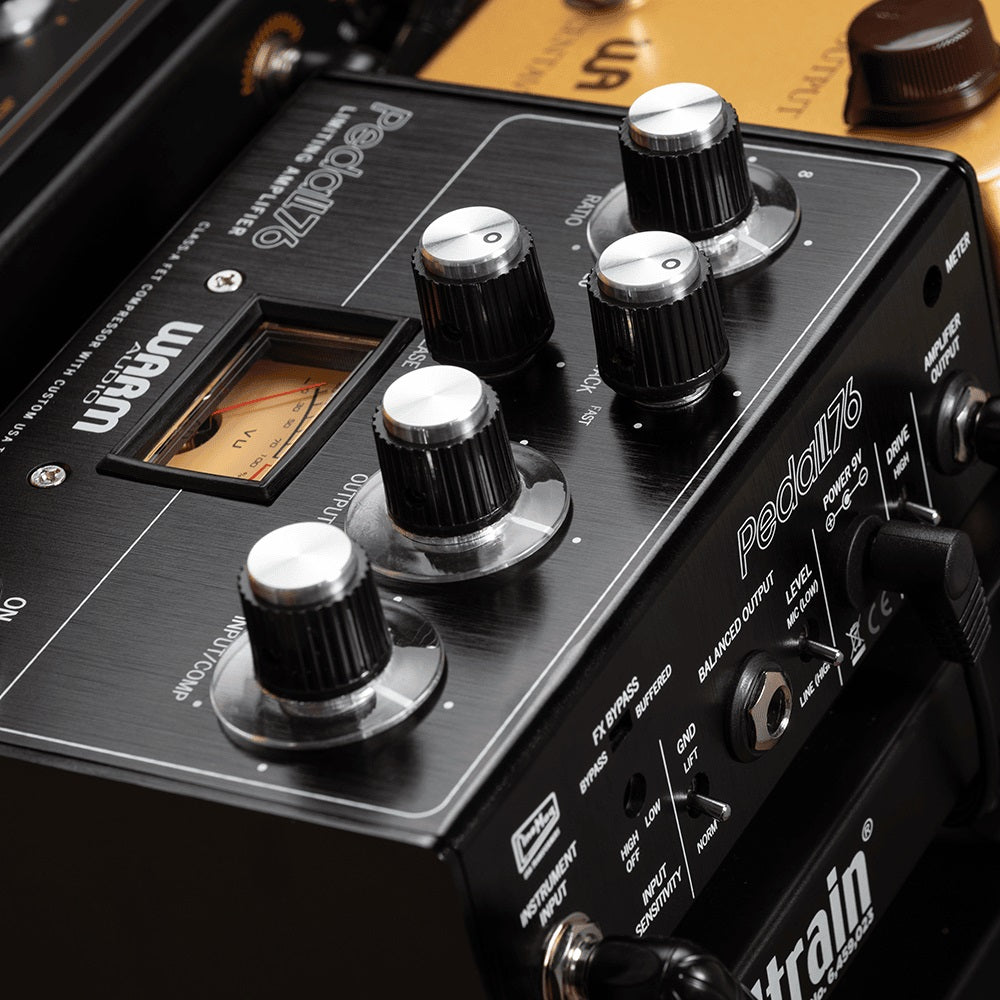

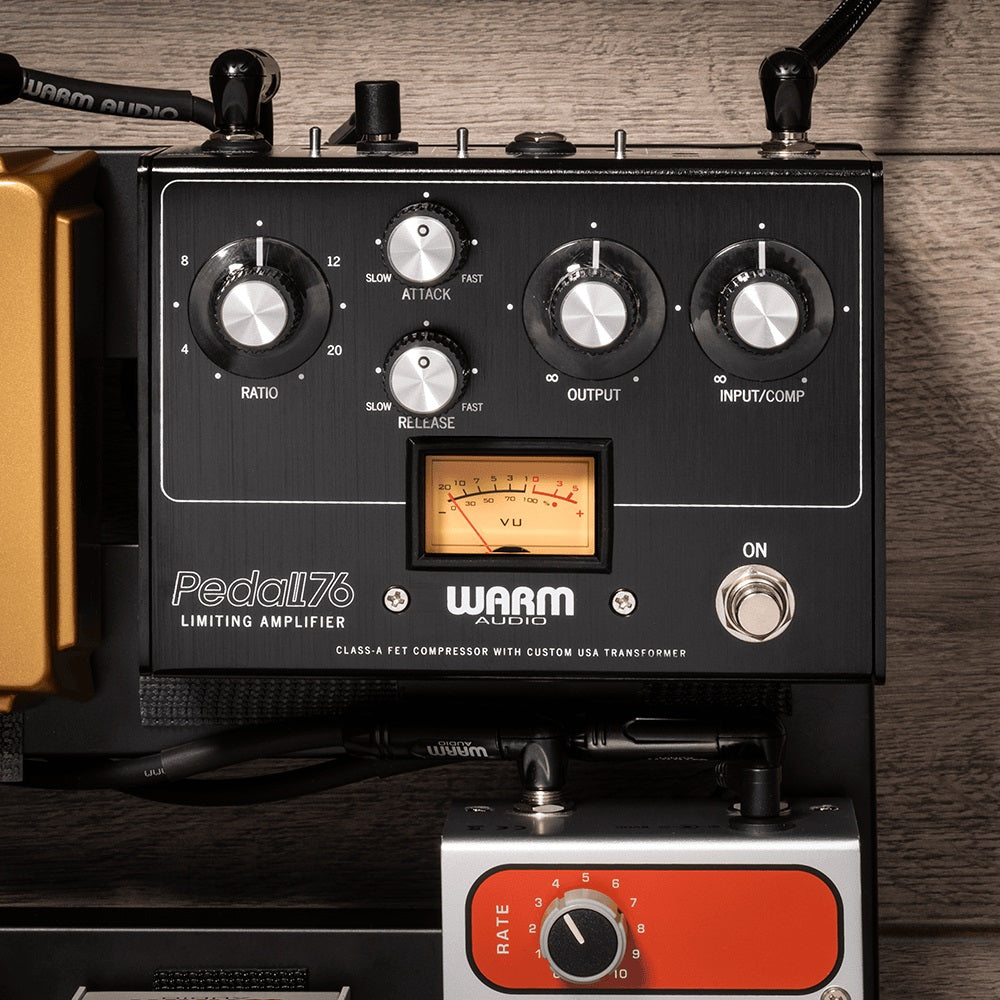

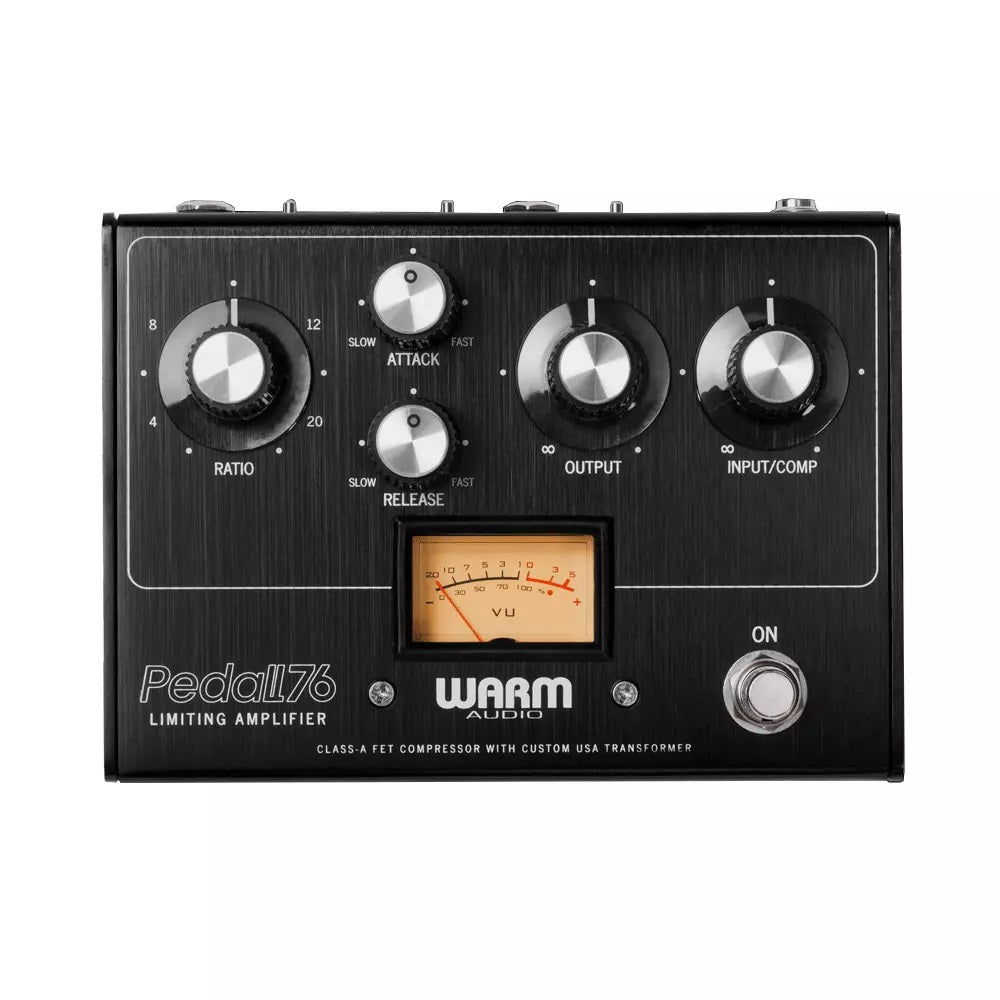

Warm Audio - Pedal76 All-Analog FET Compressor Pedal #WA-76P
All-Analog Transformer-Balanced FET Compressor Pedal
Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage.Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Classic Studio Compression Recreated For Your Pedalboard
Pedal76 accurately reproduces one of the fastest and most powerful studio compressors of all time, known for having ultra-fast attack and release and adding sweet analog tone to any source. Just like in the studio, Pedal76 has Attack & Release, Ratio, and Input controls, critical for taming unwanted changes in volume on stage. Backed by over 10 years of expertise delivering premium, award-winning studio compression with the Warm Audio WA76, the Pedal76 is capable of bringing out the wide range of legendary compression tones from subtle to hard-limiting as favored by celebrated artists such as Led Zeppelin, Pink Floyd, Periphery, Jack White and many more.Studio-Quality Sound, Stage-Ready Control
To achieve authentic 76-style FET compression, Pedal76 is built with an all-analog circuit and premium components, including a custom CineMag USA transformer. Spec’d to duplicate the professional performance of the studio units, this transformer adds rich harmonic content, and, in high gain mode, a bit of audible overdrive reminiscent of the most prized studio originals. Pedal76 features gig-ready controls like an external switch for true/buffered bypass, ensuring the compressor plays nice in your rig. Switches for input sensitivity, ground/lift, pad and high/low gain modes (both for DI operation) provide added utility at gigs or in the studio. The separate (DI) out also sends a balanced signal to any mixer or live recording rig.Applications
- Squishy Funk & Chicken Pickin': Smash any light playing and make transients stick out without losing low end.
- Lead & Solo Sustain: Add sustain to bends and lead tones for epic solos that sit on top of the mix.
- Big Studio Bass: Add growl and grit, shape slaps and transients, and deliver studio bass tone on any stage.
- Pristine Drive & Rhythm Tone: Level out arpeggios and add clarity to picked notes and rhythm guitar, whether clean or driven.
https://www.youtube.com/watch?v=hDPt3XYPbwU
| Product Description & External Specs | All-Analog Transformer-Balanced FET Compressor Pedal |
| Classic 76-Style Compression Controls: Ratio, Attack, Release, Output, & Input | |

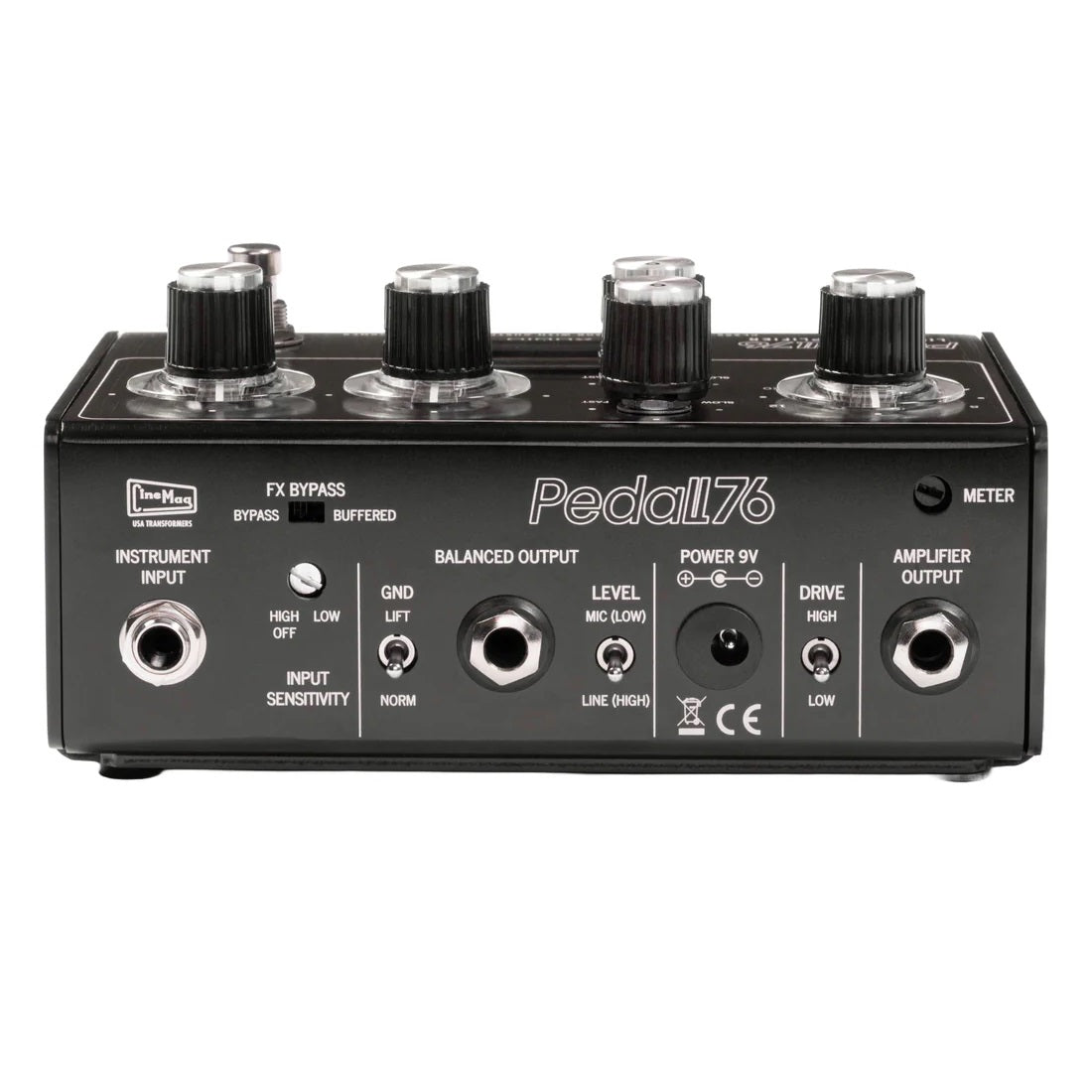

| Additional Controls: Input Sensitivity, Ground/Lift, DI Output Pad, DI High/Low Gain With Level Boost On Balanced Output | |
| External True Or Buffered Bypass Switch | |
| Vintage-Style Amber VU Meter For Gain Reduction Indication | |
| External Power Supply With 9V Battery Compartment. External Power Supply Leverages Internal Voltage Increase Via DC-DC Voltage Converter | |
| Dimensions: 5.9” x 4.1” x 1.9” | Weight: 1.65 lbs | |
| 5-Year Warranty | |
| Components & Internal Specs | Custom CineMag USA Output Transformer (Engaged With External Power) |
| Ultra Low-Noise With 100% Discrete Analog Signal Path | |
| When Using External Power, Pedal76 Requires 125mA |
