Universal Audio - VOLT476 Audio Interface
Universal Audio - VOLT476 Audio Interface
Regular price
$509.00
Sale price
$509.00
Regular price
$509.00
Shipping calculated at checkout.
Universal Audio
Big Studio Sound, Anywhere.
Universal Audio created Volt 476 for collaborators — from bands and producers to livestreamers and content creators — looking to easily record larger projects with big studio tone. Plug right in to your Mac, PC, iPad, or iPhone and Volt just shows up, ready to capture your productions with legendary sound, courtesy of Universal Audio.
- Desktop 4-in/4-out USB audio interface with class-leading 24-bit/192 kHz audio conversion for Mac, PC, iPad, and iPhone
- Vintage Mic Preamp mode for recording your voice or guitar with the rich, full sound of an iconic UA tube preamp
- 76 Compressor adds clarity and punch to vocals, instruments, and other sources with analog circuit based on UA's renowned 1176
- Essential suite of audio and music software from Ableton, Melodyne, UJAM's Virtual Drummer, Marshall, Ampeg, and more
- Studio-quality headphone amplifier for loud, clear monitoring
- 48V phantom power for condenser microphones
- Direct Monitoring for latency-free recording
- Stylish, rugged construction built to withstand years of use
- 1-in/1-out MIDI connections
- USB-C to USB-A cable included
- 5VDC power supply included
Special Order
Contact us for estimated delivery time
Not available for in-store pickup
Please contact us to get more information
Couldn't load pickup availability
Limited time offer
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout. Expires on May 10, 2026.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
With the Universal Audio VOLT476 Audio Interface YOU CAN:
Create professional music productions, livestreams, and podcasts on Mac, PC, iPad, and iPhone
Record your voice or guitar with album-ready sound using Vintage Mic Preamp mode
Add clarity and punch to vocals, instruments, and other sources with an analog compressor based on UA’s renowned 1176
Produce with an essential suite of audio and music software including Ableton, Melodyne, UJAM's Virtual Drummer, Marshall, Ampeg, and more
Produce with Best-in-Class Audio Quality
From the team that brought you the game-changing Apollo interface, Volt 476 delivers superior studio sound quality, with more character and tone than any USB interface in its class.
Capture Legendary Vocals with Vintage Mic Preamp Mode
Few sounds can compare to a vintage Universal Audio 610 tube preamp, as used to record everyone from Ray Charles to Van Halen. Volt 276 gives you the rich, full sound of this iconic UA preamp, thanks to its built-in tube emulation circuitry, a UA exclusive.
Control Volume Peaks with UA Compression
Get album-ready punch and presence with Volt 476's onboard 76 Compressor — an innovative analog circuit inspired by UA's renowned 1176 Limiting Amplifier. The 76 Compressor features three perfectly tailored presets to tame voice, guitars, synths, and drum machines. Just plug in, pick a setting, and play.
Easy In, Easy Out

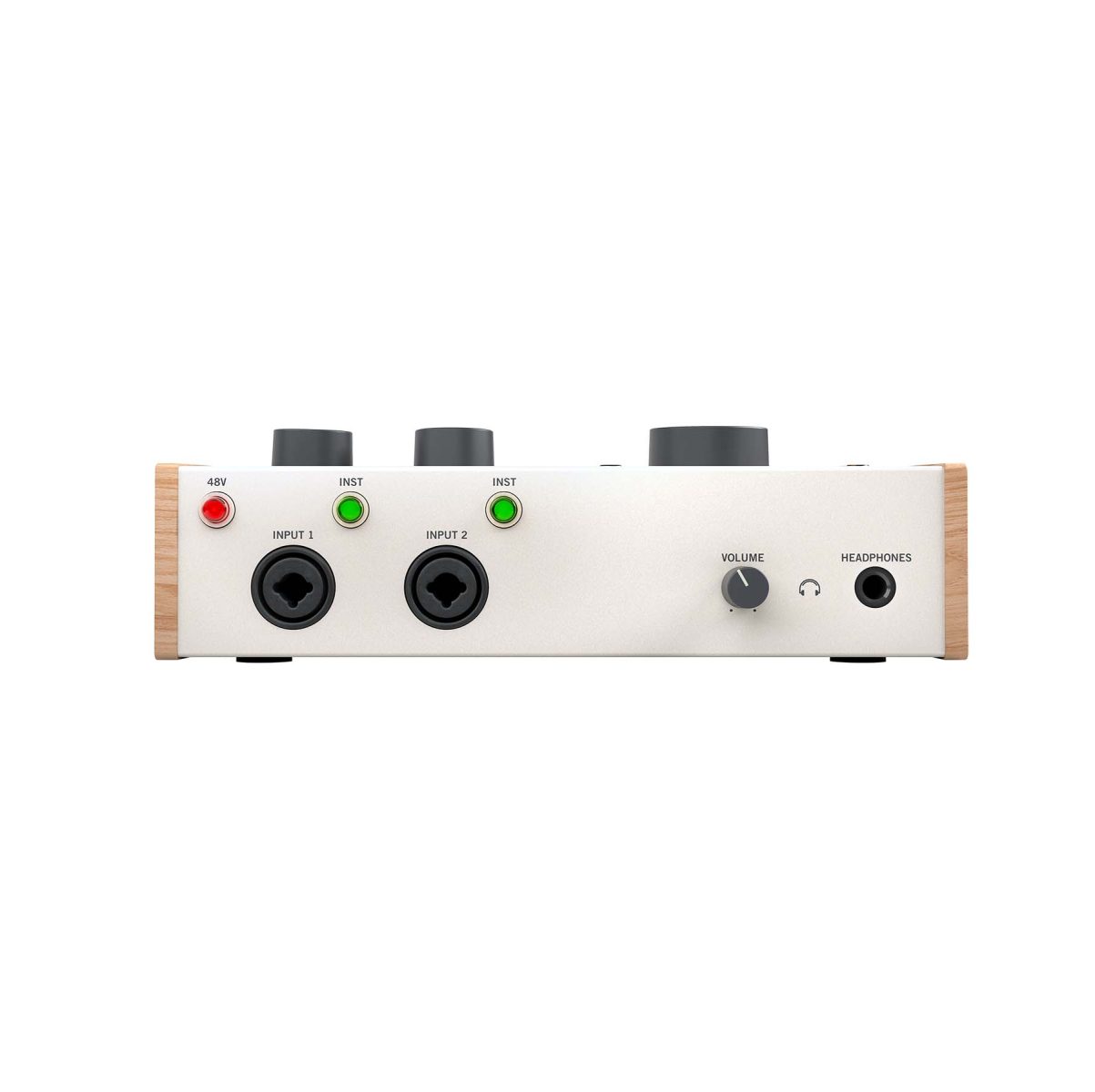

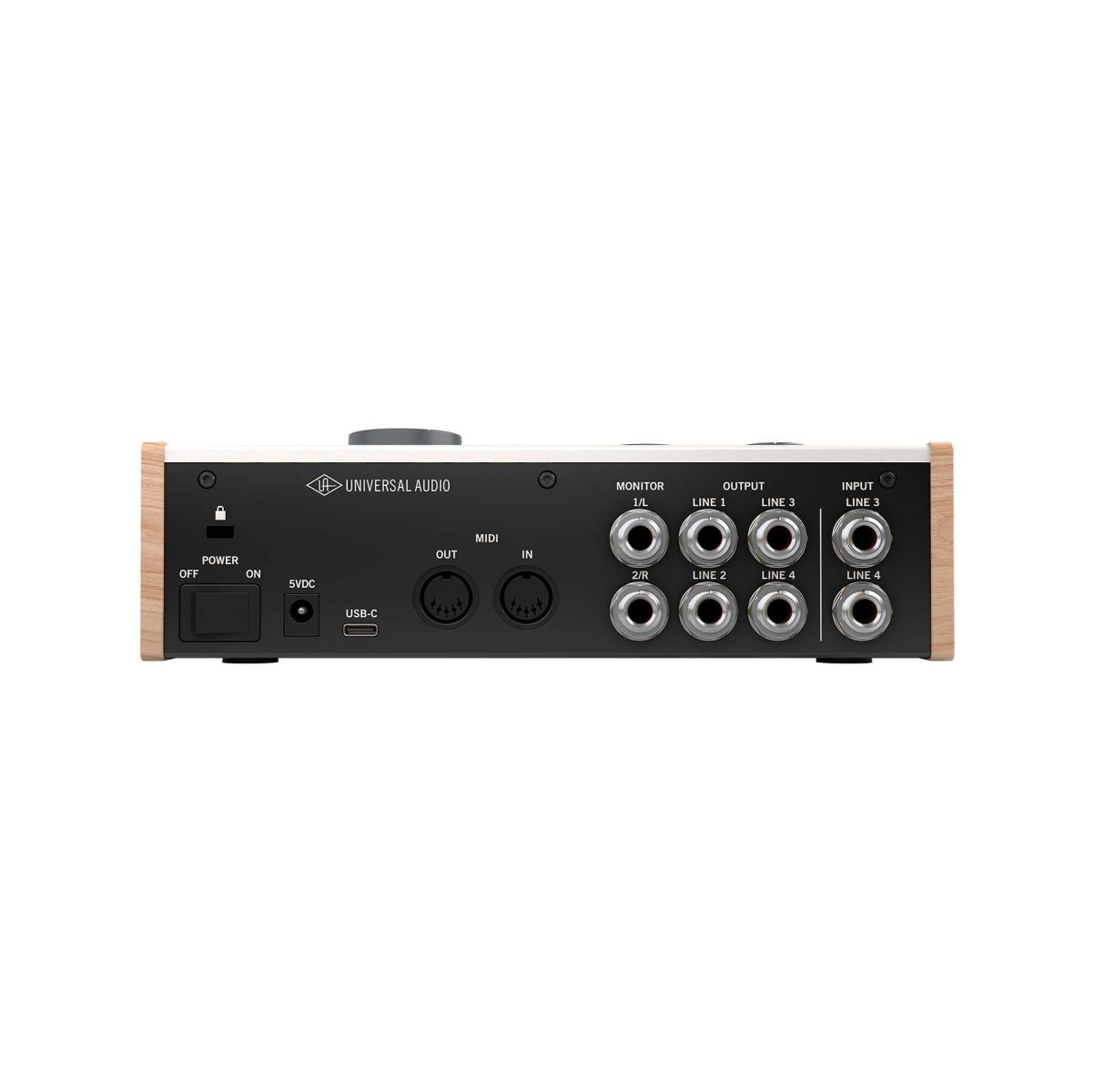

Volt 476 gives you simple 4-in/4-out audio connections. Just plug your mics, guitars, or synths into the front panel. Then connect your speakers or headphones to monitor your audio with no latency. With Volt, you’ll be producing like a pro, fast.Stay Inspired with a Curated Suite of Audio Software
Some audio interfaces give you a smattering of random audio apps. Not Volt. Instead, we put together a bundle of serious music production tools, virtual instruments, and plug‑ins from the industry's best.
iPad & iPhone Ready
Traveling light? Plug Volt 476 into your iPad or iPhone, and you can easily create beats and samples, record your band’s rehearsals, and edit songs anywhere.*
Capture Inspiration for Years to Come
Featuring rugged metal construction, retro wood sides, and sleek industrial design, Volt 476 elevates your production space with impeccable style, built to last decades.Inspiration Comes Quick. Watch the Videos.
https://youtu.be/bRMoVt4zNOc| SYSTEM | |
| I/O Complement | |
| Microphone/Line/Instrument Preamp Inputs | Combo XLR/TRS |
| Volt 1 | One |
| Volt 2 | Two |
| Volt 176 | One |
| Volt 276 | Two |
| Volt 476 | Two |
| Additional Line Inputs (Volt 476 only) | Two |
| Line Outputs (Volt 476 only) | Four |
| Monitor Outputs | Two (one stereo pair) |
| Headphone Outputs | One stereo |
| USB | One USB 2.0 port (USB Type-C connector) |
| MIDI | In, Out (two 5-pin DIN connectors) |
| A/D – D/A Conversion | |
| Supported Sample Rates (kHz) | 44.1, 48, 88.2, 96, 176.4, 192 |
| Bit Depth Per Sample | 24 |
| ANALOG I/O | |
| Mic, Line, Instrument Input(s) | |
| Vintage mode (all Volt models) | Selectable ON/OFF |
| 76 Compressor presets (176, 276, 476 only) | Selectable VOC, GTR, FAST, OFF |
| 76 Compressor preset times | Attack / Release times (approximate) |
| VOC | Attack 2 ms / Release 300 ms |
| GTR | Attack 1.5 ms / Release 700 ms |
| FAST | Attack 30 µs / Release 35 ms |
| Compression Ratio | 06:01 |
| Microphone Input(s) | |
| Frequency Response | 20 Hz to 20 kHz, ±0.1 dB |
| Dynamic Range (A–weighted) | 112 dB |
| Total Harmonic Distortion + Noise | -103 dB (0.0007 %) |
| (1 kHz @ -1 dBFS) | |
| Equivalent Input Noise (150 Ohms, A-weighted) | -127 dBu |
| Maximum Input Level | 9 dBu |
| Input Impedance | 3 Kilohms |
| Available Gain | 55 dB |
| Phantom Power | +48V (switchable) |
| Connector Type | XLR Female, pin 2 positive |
| Instrument Input(s) | |
| Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
| Dynamic Range (A–weighted) | 111 dB |
| Total Harmonic Distortion + Noise | -84 dB (0.006 %) |
| (1 kHz @ -1 dBFS) | |
| Maximum Input Level | 12.5 dBu |
| Input Impedance | 1 Megohms |
| Gain Range | 55 dB |
| Connector Type | ¼” TS unbalanced |
| Line Input(s) | |
| Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
| Dynamic Range (A–weighted) | 111 dB |
| Total Harmonic Distortion + Noise | -102 dB (0.0008 %) |
| (1 kHz @ -1 dBFS) | |
| Maximum Input Level | 22 dBu |
| Input Impedance | 15 Kilohms |
| Gain Range | 55 dB |
| Connector Type | ¼” TRS balanced or TS unbalanced |
| Line Inputs 3-4 (Volt 476 only) | |
| Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
| Dynamic Range (A–weighted) | 113 dB |
| Total Harmonic Distortion + Noise | -105 dB (0.0006 %) |
| (1 kHz @ -1 dBFS) | |
| Maximum Input Level | 18 dBu |
| Input Impedance | 10 Kilohms |
| Connector Type | ¼” TRS balanced or TS unbalanced |
| Monitor & 476 Line Outputs | |
| Frequency Response | 20 Hz to 20 kHz, ±0.1 dB |
| Dynamic Range (A–weighted) | 110 dB |
| Total Harmonic Distortion + Noise | -102.5 dB (0.00075%) |
| (1 kHz @ -1 dBFS) | |
| Maximum Output Level | 15 dBu |
| Output Impedance | 100 Ohms |
| Connector Type | ¼” TRS balanced or TS unbalanced |
| Stereo Headphone Outputs | |
| Frequency Response | 20 Hz to 20 kHz, ±0.1 dB |
| Dynamic Range (100K load, A-weighted) | 110 dB |
| Total Harmonic Distortion + Noise | -100 dB (0.001%) |
| (1 kHz @ -1 dBFS, 300 Ohms) | |
| Maximum Output Power into 32 Ohms | 84 mW per channel |
| Maximum Output Power into 300 Ohms | 22 mW per channel |
| Maximum Output Power into 600 Ohms | 12 mW per channel |
| Connector Type | ¼” TRS Stereo |
| ELECTRICAL | |
| External DC Power Input | Barrel, female, 5.5mm OD, 2.1mm ID, |
| IEC 60130-10 Type A | |
| Power Supply, Electrical Requirements | +5VDC, Center Positive (+) |
| Power Consumption | |
| Volt 1 | 2.8W maximum, 1.9W typical |
| Volt 2 | 4.2W maximum, 2.5W typical |
| Volt 176 | 3.2W maximum, 2.3W typical |
| Volt 276 | 5W maximum, 3.5W typical |
| Volt 476 | 6.7W maximum, 4.9W typical |
| ENVIRONMENTAL | |
| Ambient Temperature Range | 32° to 104° F (0° to 40° C) |
| MECHANICAL | |
| Dimensions | |
| Chassis (including knobs and protrusions) | Width x Depth x Height |
| Volt 1 | 5.7 x 5.1 x 2.0 in (14,5 x 13,0 x 5,0 cm) |
| Volt 2 | 6.9 x 5.1 x 2.1 in (17,4 x 13,0 x 5,3 cm) |
| Volt 176 | 5.9 x 5.1 x 2.6 in (15,0 x 13,0 x 6,5 cm) |
| Volt 276 | 7.3 x 4.7 x 2.7 in (18,4 x 11,9 x 6,7 cm) |
| Volt 476 | 8.4 x 5.2 x 2.6 in (21,2 x 13,2 x 6,6 cm) |
| Shipping Box | Width x Depth x Height |
| Volt 1 | 7.8 x 6.9 x 3.7 in (1,9 x 17,5 x 9,5 cm) |
| Volt 2 | 9.0 x 6.9 x 3.7 in (22,8 x 17,5 x 9,4 cm) |
| Volt 176 | 8.1 x 7.1 x 4.2 in (20,6 x 18,2 x 10,6 cm) |
| Volt 276 | 9.5 x 6.9 x 4.0 in (24,1 x 17,5 x 10,2 cm) |
| Volt 476 | 9.5 x 6.9 x 5.2 in (24,1 x 17,5 x 13,3 cm) |
| Weight | |
| Shipping Weight (with box & accessories) | |
| Volt 1 | 1.9 lbs (0.9 kg) |
| Volt 2 | 2.2 lbs (1.0 kg) |
| Volt 176 | 2.2 lbs (1.0 kg) |
| Volt 276 | 2.6 lbs (1.2 kg) |
| Volt 476 | 3.5 lbs (1.6 kg) |
| Weight (bare unit) | |
| Volt 1 | 1.2 lbs (0.55 kg) |
| Volt 2 | 1.4 lbs (0.65 kg) |
| Volt 176 | 1.4 lbs (0.65 kg) |
| Volt 276 | 1.8 lbs (0.79 kg) |
| Volt 476 | 2.0 lbs (0.92 kg) |
| Package Contents | |
| Volt Audio Interface Unit | |
| USB Type-A to Type-C cable | |
| USB Type-A to DC Barrel cable (except Volt 476) | |
| External Power Supply Unit with AC adapter kit (Volt 476 only) | |
