Universal Audio - OX Amp Stomb Box

Vendor: Universal Audio

Type: Effects & Pedals

SKU: UA-OX

$2,099.00

$2,099.00 ~~$2,099.00~~

Shipping calculated at checkout.

Get Legendary Studio Tones from your Tube Amp — Anywhere, at Any Volume.

OX is a premium reactive load box and guitar recording system, giving you perfectly studio-miked amp sounds from your favorite tube amp. OX lets you play and record your amp in its sweet spots — from huge clean tones and edge-of-breakup to fully cranked — at any volume level, and with mic, room, and speaker cabinet emulations at the turn of a knob.

Featuring Universal Audio’s breakthrough Dynamic Speaker Modeling, OX is the first system to accurately emulate speaker drive, breakup, and cone cry — making it the world’s finest speaker attenuator and guitar amp recording solution.

Ready to ship Same-day shipping on most orders placed before 1 PM. Guitars take 1 extra day. We tune and inspect every one before it leaves.

FREE Shipping

30-Day Returns

FREE Warranty

Canadian Since 1971

Free shipping on most products over $100
Free Returns Within 30 days

Limited time offer

We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

NOW YOU CAN:

Play and record your tube amp in its tonal sweet spot — anywhere, at any volume, with full dynamics

Get stunning mic and guitar cabinet combinations at the turn of a RIG knob — no miking required

Audition, tweak, and save more than 100 jaw-dropping custom Rigs from compatible iPad, or Mac/Windows computers.

Get authentic “edge of destruction” sounds, complete with UA Dynamic Room Modeling, speaker breakup, and cone cry

The World’s Best Reactive Load Box

With decades of analog hardware engineering expertise, Universal Audio’s dream team of engineers set out to design a reactive load box that retains the tone, dynamics, and feel of your tube amp — no matter how much it’s attenuated. The goal was for your tube amp to “see” OX as an actual speaker — with continuously variable impedance and response — so you don’t lose a drop of tone or playing dynamics.

A Complete Guitar Recording System

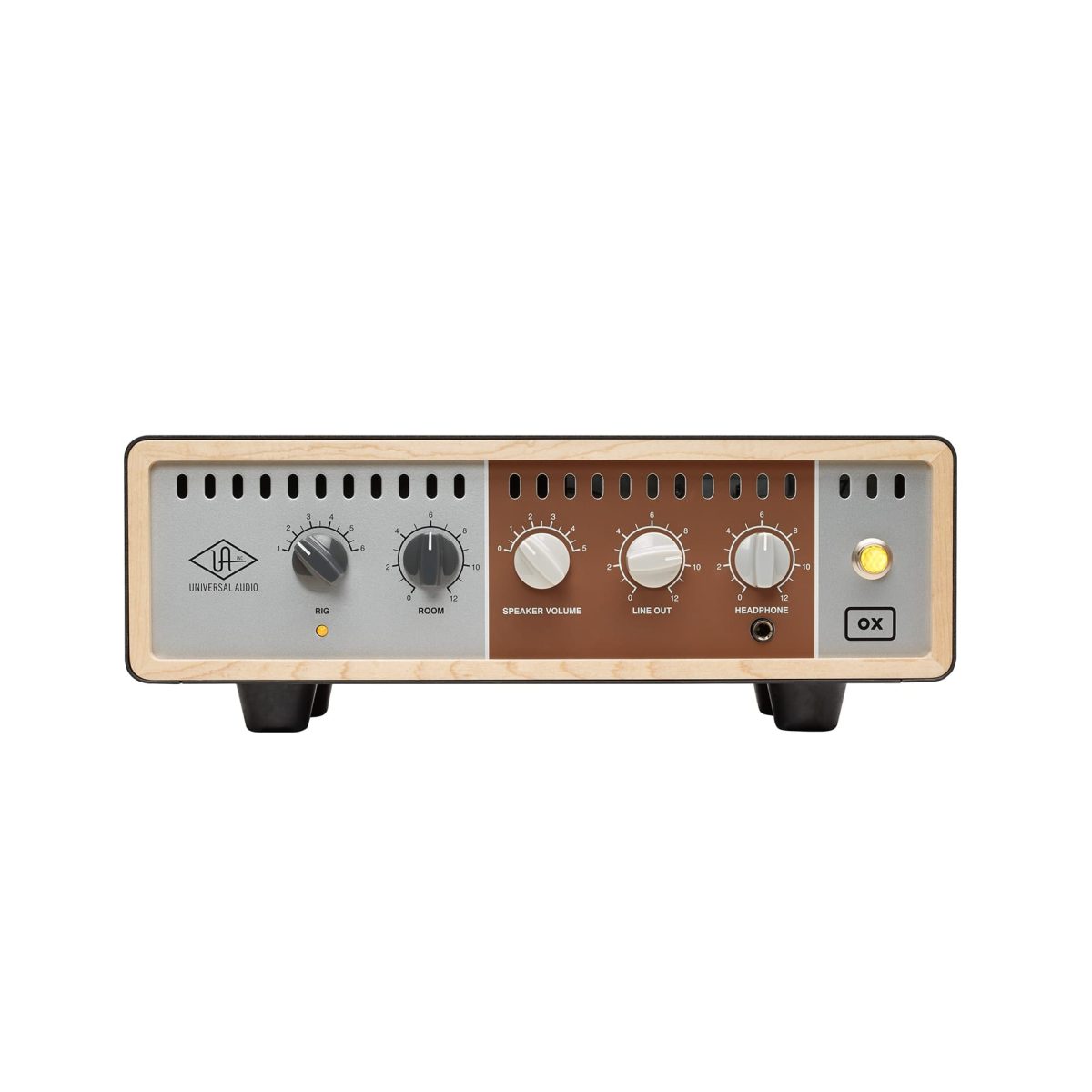

OX’s front-panel, six-position RIG control allows you to quickly choose from complete setups — including emulated speaker cabinets, close mics, ambient room mics, and up to four simultaneous studio effects. OX is also the only guitar recording system to offer a complete selection of expertly placed room mics, giving you the authentic experience of pushing air while recording your cranked amp in a world-class tracking room.

Dynamic Speaker Modeling

UA’s groundbreaking Dynamic Speaker Modeling faithfully emulates speaker breakup, drive, and cone cry — an essential ingredient to authentic tube amp tones. Using the Speaker Breakup knob in the OX app, you can control the harmonics and sonic complexity that occurs only at certain frequencies and volume levels on various speakers — far beyond a static Impulse Response system — giving you the same sonic phenomenon that occurs with a real speaker cabinet.

All The Right Connections

Not only does OX Amp Top Box feature a front-panel headphone jack for silent practice with your cranked tube amp, it also sports a bevy of connections for all kinds of recording and live workflows. Stereo S/PDIF digital outputs via RCA and optical TOSLINK, as well as balanced TRS stereo line outputs with front panel level control, give you the necessary connections for studio monitors, DAW, or live mixing console inputs. Plus, you can connect any one, two, or three-button footswitch and toggle OX's studio-quality effects on and off.

A Beautiful Software App

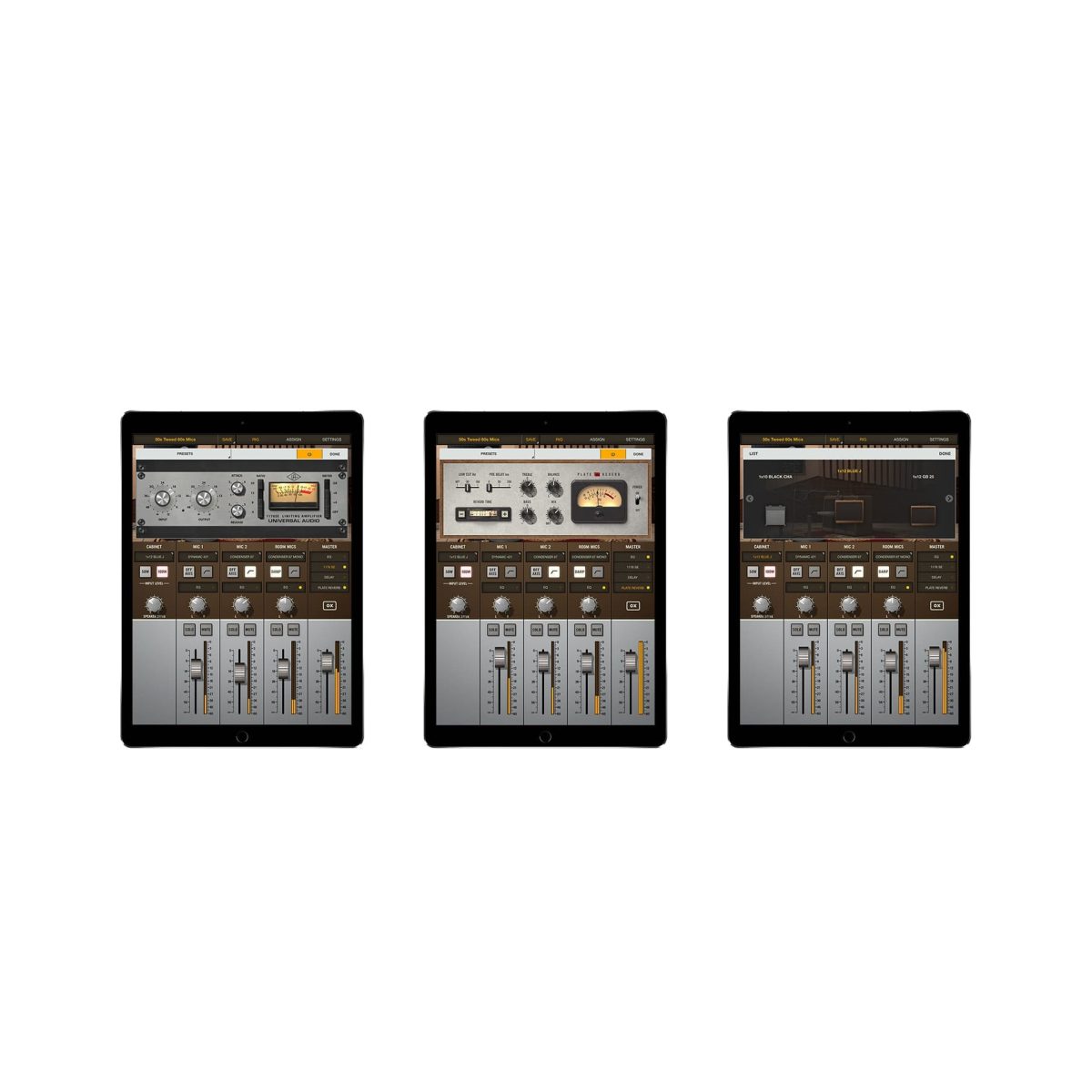

Most guitar products do digital awkwardly. They’re ugly and hard to understand. The OX software app, on the other hand, offers slick, intuitive control over all of OX’s RIG settings via Wi-Fi — letting you tweak, store and recall hundreds of presets from your iPad, Mac, or Windows 10 computer. You can then save your six favorite tones onto OX’s front-panel RIG knob for instant recall in the studio or at a gig. https://youtu.be/OGxQ_0u6uLw

Operation Manual

SYSTEM	I/O Complement
	Amplifier Input One
	Speaker Output One
	Line Outputs Two (one stereo left/right)
	Headphone Output One (stereo left/right)
	Digital Outputs Two (mirrored)

ANALOG I/O
Amplifier Input	Connector Type ¼” Female TS Unbalanced
	Input Impedance 4/8/16 Ohms (selectable)
	Maximum Input Power 150 Watts RMS, 200 Watts peak
	Safety Load (power off) 16 Ohms

Speaker Output	Connector Type ¼” Female TS Unbalanced
	Output Attenuation Five Attenuation Steps and Speaker Off
	Output Latency None (pure analog)

Line Outputs 1 – 2	Connector Type ¼” Female TRS Balanced
	Dynamic Range 114.5 dB (A-weighted)
	Frequency Response 20 Hz – 20 kHz, ±0.1 dB
	Signal-to-Noise Ratio 114.0 dB (A-weighted)
	Total Harmonic Distortion + Noise -110 dB @ -3 dBFS
	Channel Separation 129 dB
	Output Impedance 100 Ohms
	Maximum Output Level 20.2 dBu (balanced)
	Output Latency 2.77 milliseconds (122 samples @ 44.1 kHz)

Stereo Headphone Outputs	Connector Type ¼” Female TRS Stereo
	Dynamic Range 113.0 dB (A-weighted)
	Frequency Response 20 Hz – 20 kHz, ±0.1 dB
	Signal-to-Noise Ratio 113.0 dB (A-weighted)
	Total Harmonic Distortion + Noise -107 dB @ -3 dBFS
	Maximum Output Power 80 milliwatts into 600 Ohms
	Output Latency 2.77 milliseconds (122 samples @ 44.1 kHz)

DIGITAL OUTPUTS	Format S/PDIF IEC958
	Connector Type 1 Female Phono (RCA)
	Connector Type 2 Optical TOSLINK JIS F05
	Sample Rate & Bit Depth 44.1 kHz, 24-bit
	Output Latency 2.57 milliseconds (113 samples @ 44.1 kHz)

ELECTRICAL	Power Supply External AC to DC Power Supply, Level VI compliant
	AC Input Connector Type IEC Male
	AC Requirements 100V – 240V AC, 50 – 60 Hz
	DC Connector Type XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
	DC Requirements 12 VDC ±5%, 1.5A
	Maximum Power Consumption 18 Watts
	Operating Temperature Range 32° to 104° Fahrenheit (0° to 40° Celsius)
	Storage Temperature Range –40° to 176° Fahrenheit (–40° to 80° Celsius)
	Operating Humidity Range 10% – 95%, non-condensing

COMPLIANCE	EMC and Safety Standards
	FCC Part 15 for Class B digital device EN 610003-3-3:2013 EN 301489-17
	ICES-003 EN 55103-2 KN 301489-1
	VCCI-CISPR 32:2016 KN32 KN 301489-17
	EN 55032 KN35 UL/cUL 62368-1
	CIPSR 32:2012 CNS 13438 EN 62368-1
	EN 61000-3-2:2014 EN 301489-1 IEC 62368-1

PHYSICAL
Dimensions	Width 15.01 in / 381.25 mm
	Height, Chassis Only 4.45 in / 112.94 mm
	Height, Including Rubber Feet 5.45 in / 138.44 mm
	Depth, Chassis Only 8.05 in / 204.5 mm
	Depth, Including Knob & Jack Protrusions 9.04 in / 229.58 mm
	Shipping Box (Width x Depth x Height) 20 3/4” x 12 15/16” x 11 5/16”
	(52.7 cm x 32.9 cm x 28.7 cm)
Weight	Weight (unit only) 14.1 Lbs / 6.40 Kg

Package Contents	OX Amp Top Box Unit
	External Power Supply
	IEC Power Cable — US, EU, or UK (region dependent)
	Quick Start Guide
	RIG Control Presets
	Safety & License Sheet
