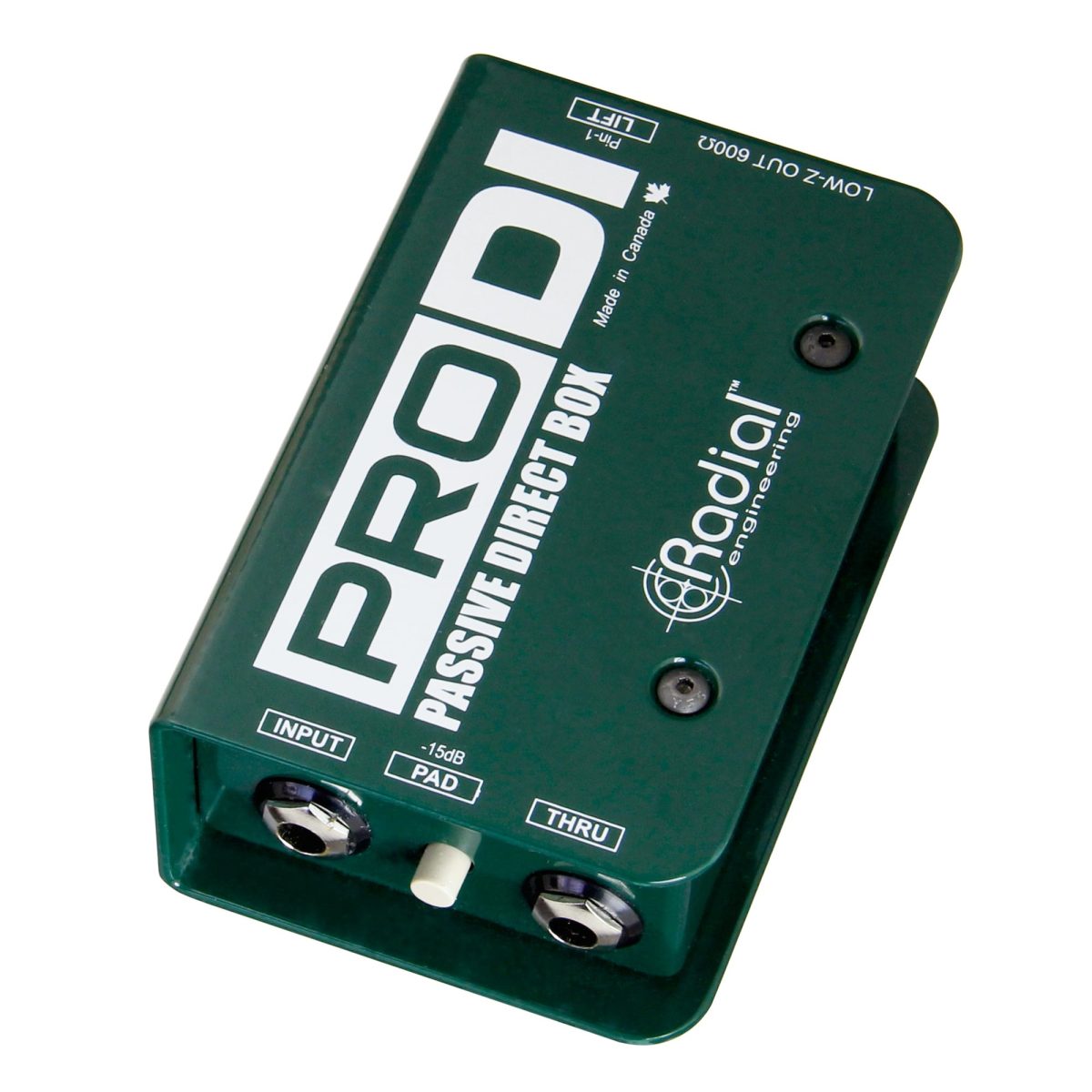

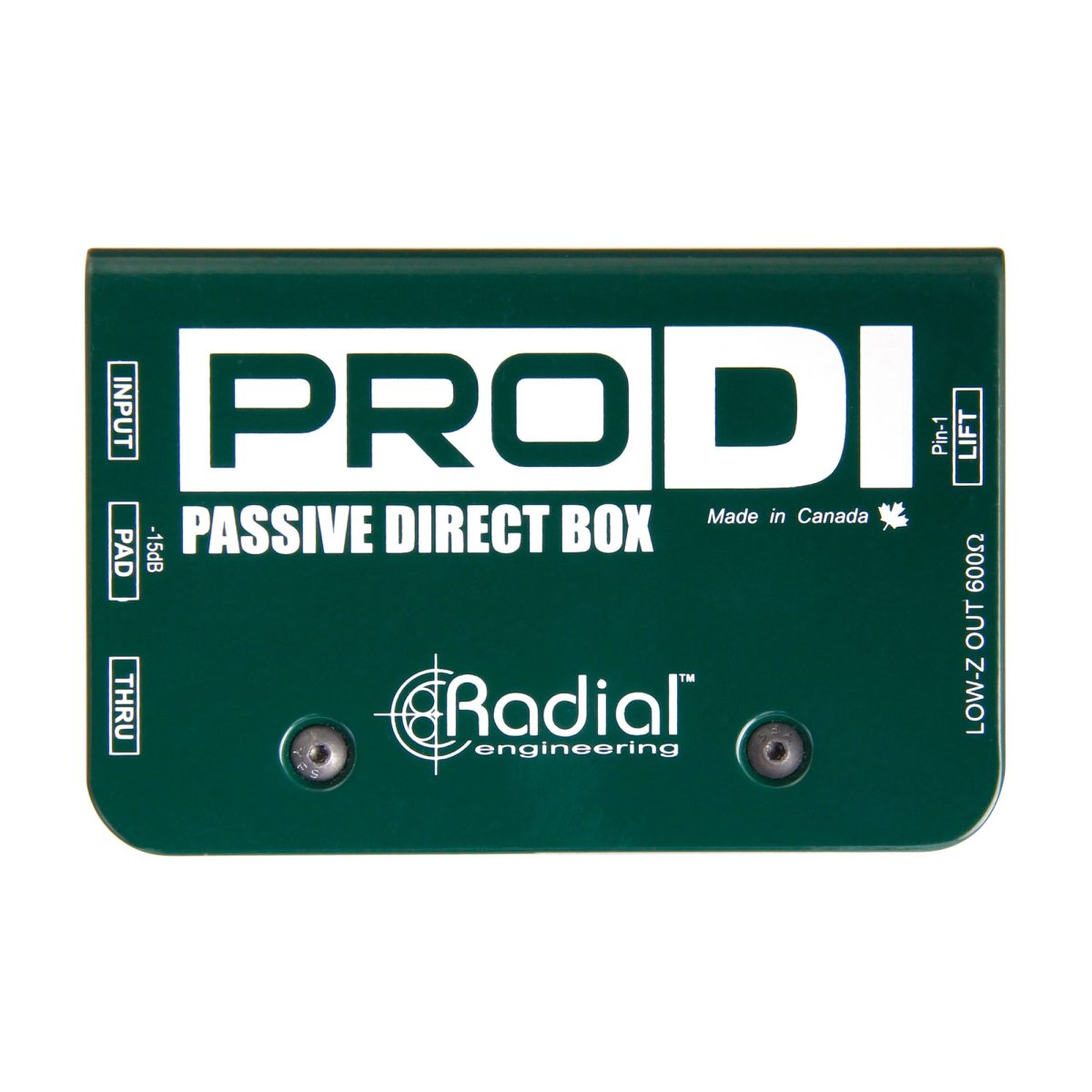

Radial - ProDI Passive Direct Box
Passive Direct Box
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
World class DI
The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.https://www.youtube.com/watch?v=LmkisZw2lAA
Features
- Great sounding, rugged passive DI
- High performance custom-wound transformer
- -15dB PAD for wide range of input levels
- Ground lift switch eliminates ground loop hum
Applications
- ProDI for acoustic guitars and bass guitars
- ProD2 for stereo keyboards and drum machines
- Interface consumer audio with pro gear
- Eliminates buzz and hum caused by ground loops
Cool stuff
- Ultra-tough design, to last a lifetime
- "Plug & play' easy-to-use
- Completely passive, no power needed
- 3 year transferable warranty
ProDI Applications
ProDI with electric bass
The ProDI works great for high output devices like active bass guitars. It's able to handle the huge signal levels from active pickups without distortion and the transformer isolation prevents ground loop hum. The ProDI sends the pure sound of the bass to the PA and to the player's amp.ProDI with acoustic guitar
Acoustic guitars can sometimes have sharp sounding active preamps. The ProDI naturally smoothes out the transients for a warmer tone. And because the ProDI is able to handle loud signals from active pickups, it will not distort. This makes it a great direct box for acoustic guitars.ProDI with a keyboard
Today's digital keyboards are not only very dynamic, they also have a tremendous range from low to high notes. The ProDI is able to withstand excessive signal levels at all frequencies without introducing distortion or phase shift, so all your patches sound great.
Specifications |
|
| Audio circuit type: | Passive, transformer based |
| Transformer: | Eclipse ET-DB2, 12:1 ratio |
| Number of channels: | Single channel (mono) |
| Frequency response: | 20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range: | 128dB |
| Total harmonic distortion: | 0.01% from 20Hz~20kHz @-10dB |
| Phase Deviation: | 1° @ 100Hz; 8° @ 20Hz |
| Input Impedance: | 140k Ohms, unbalanced |
| Output Impedance: | 150 Ohms, balanced |
| Maximum Input: | +18dB @ 20Hz |
Features |
|
| Input pad, Ground lift | |

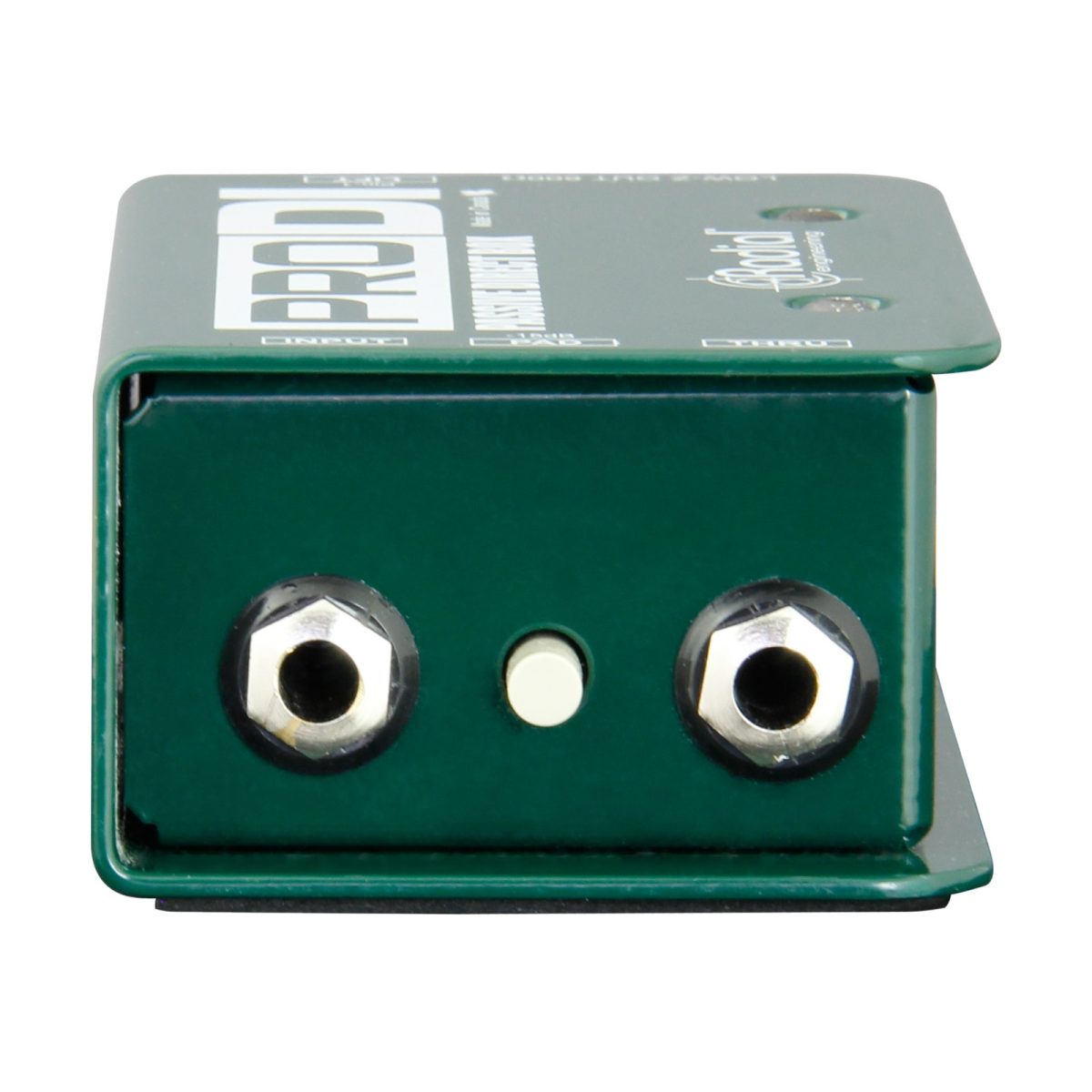

| Input Connectors: | 1/4" in & thru |

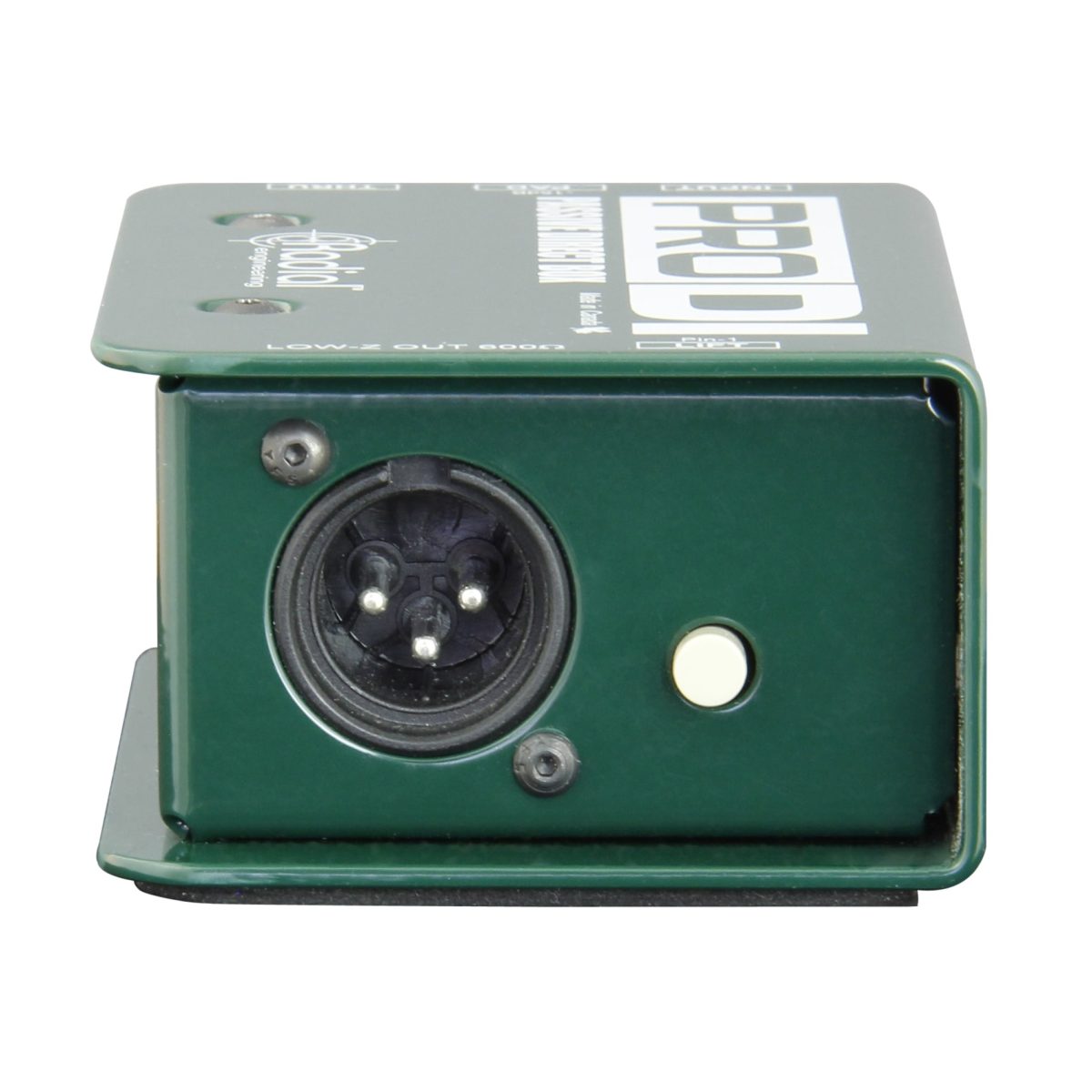

| Output Connectors: | XLR-M out |
General |
|
| Construction: | 14 gauge steel chassis & outer shell |
| Size (L x W x D): | 4.25” x 2.75” x 1.75" (108 x 70 x 44mm) |
| Weight: | 1.2lb (0.54kg) |
| Shipping size (L x W x D): | 6.5" x 4" x 3" (165 x 76 x 102mm) |
| Shipping weight: | 1.35lb (0.61kg) |
| Power: | Passive, no power required |
| Conditions: | For use in dry locations only between 5°C and 40°C |
| Warranty: | Radial 3-year, transferable |
