Pure sound of the instrument
The Radial JDI Stereo is a passive two-channel direct box designed to handle extreme signal levels without distortion of any kind. It employs two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Stereo delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the JDI Stereo performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes it particularly adept at eliminating hum and buzz caused by ground loops.https://www.youtube.com/watch?v=EEbFnRSC2bY
Features
- Jensen transformers for best performance
- Ultra low distortion of all types
- Linear from 10Hz ~ 40kHz
- 100% isolation eliminates hum and buzz
- Built to survive the road
Benefits
- Able to handle any instrument source
- High impedance will not load pickups
- Eliminates noise from stray DC currents
- Able to handle deep bass without choking
Cool Stuff
- 'Plug-&-play' easy-to-use!
- No battery or phantom-power required
- Impossible to overload!
- Up to 8 may be rack-mounted with the J-Rak
- 3 year transferable warranty
JDI Stereo Applications
Two basses connected to amps and PA
The JDI Stereo is perfect for sending the pure bass signal to the PA system. Use the Thru connectors to feed two channels on your amp.Stereo laptop with controller keyboard
The Jensen equipped JDI Stereo is able to gracefully handle extreme transients from your digital piano, laptop or DJ mixer without choking.Two acoustic guitars connected to the PA
The smooth sounding Jensen transformers smooth out the peaks from your acoustic guitar to produce a nice rich, warm tone.
Specifications |
|
| Audio circuit type: | Passive, transformer based |
| Transformer: | Jensen JT-DBE |
| Number of channels: | Two channels (dual mono) |
| Frequency response: | 20Hz ~ 20KHz (± 0.2dB) |
| Dynamic range: | 135dB |
| Total harmonic distortion: | 0.05% from 20Hz ~ 20kHz @-10dB |
| Phase Deviation: | 0.3° @ 100Hz; 3° @ 20Hz |
| Input Impedance: | 140k Ohms, unbalanced |
| Output Impedance: | 150 Ohms, balanced |
| Maximum Input: | +21dB @ 20Hz ~ 20kHz |
Features |
|

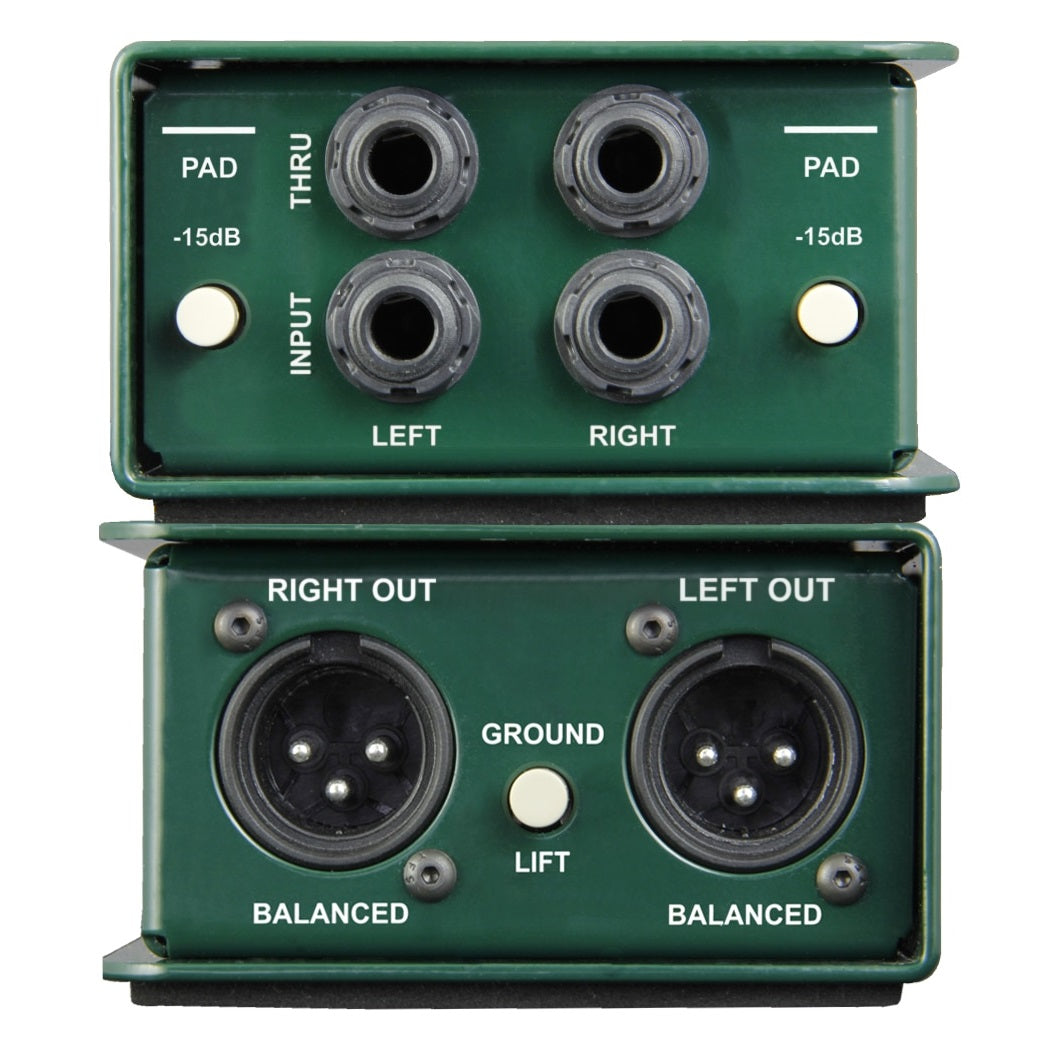

| Input pad, Ground lift | |
| Input Connectors: | Unbalanced 1/4" |
| Output Connectors: | XLR out, 1/4" thru |
General |
|
| Construction: | 14 gauge steel chassis & outer shell |
| Size (L x W x D): | 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) |
| Weight: | 1.55 lbs (703 grams) |
| Shipping size (L x W x D): | 6.5" x 4" x 3" (165mm x 102mm x 76mm) |
| Shipping weight: | 1.92 lbs (870.9 grams) |
| Power: | Passive, no power required |
| Conditions: | For use in dry locations only between 5°C and 40°C |
| Warranty: | Radial 3-year, transferable |
