Analog delay

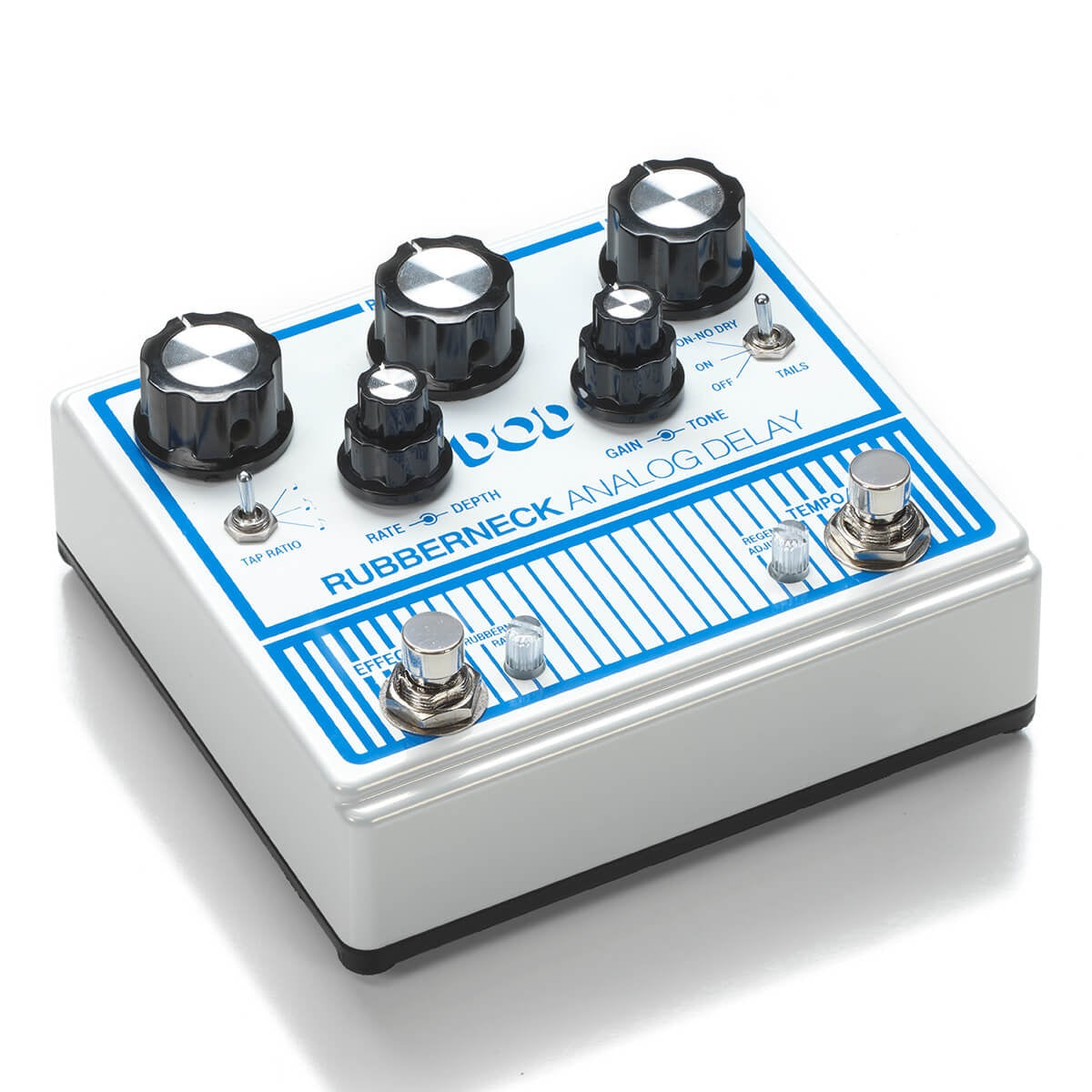

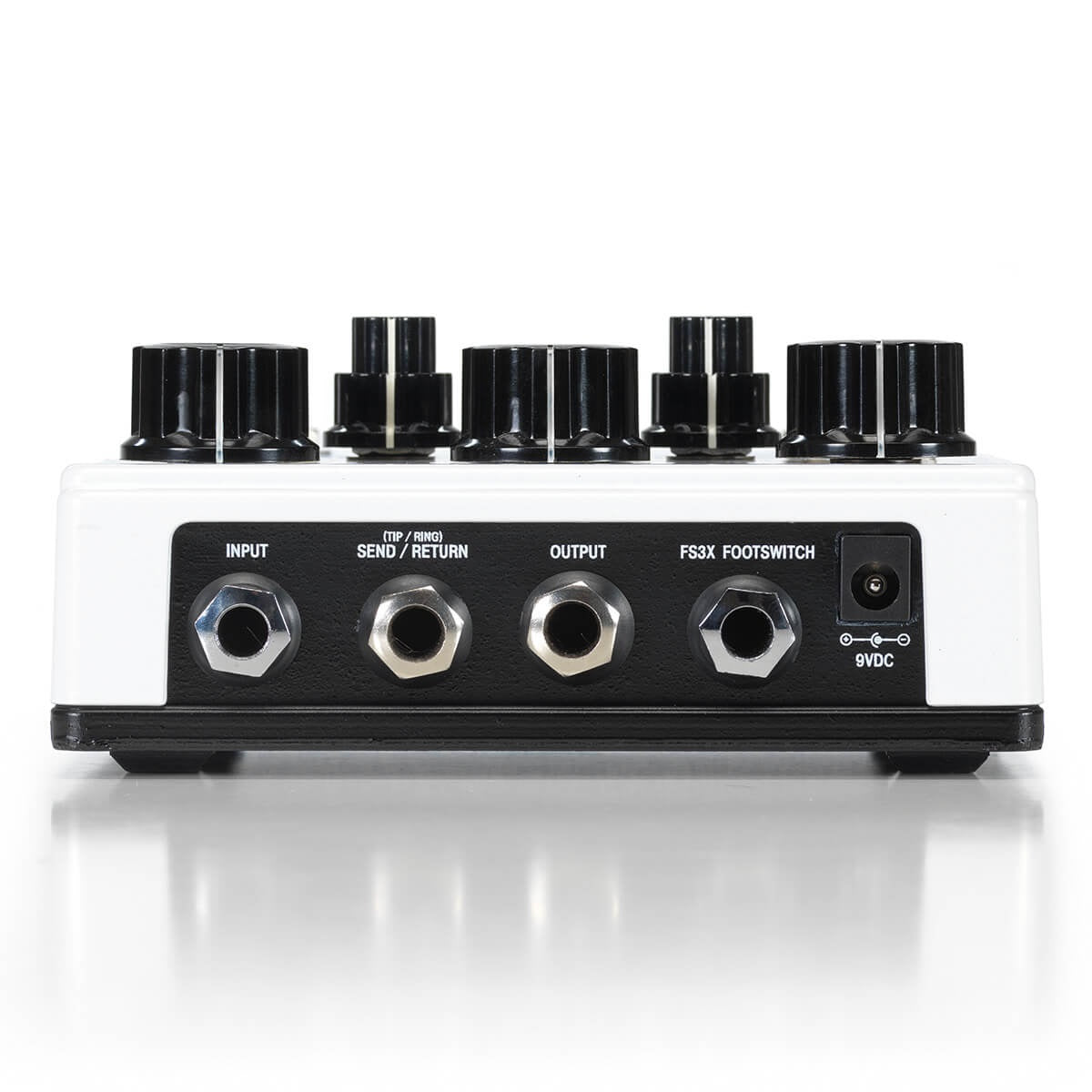

Double footswitches allow for unique extended features like user customizable momentary control of oscillation and momentary control of the dizzying pitch sweep of “Rubbernecking.” These extended features are controlled by individual clear mini knobs that double as multi-color LED status indicators. Feedback loop send/return, remote footswitch control, true bypass, and rugged metal construction, make the Rubberneck Analog Delay the must have delay of the year. The Rubberneck also has jacks to allow FS3X 3-button remote foot switching, and a send and return so you can add external effects to the delay path. The DOD Rubberneck uses a 9VDC power supply to easily integrate into your existing pedalboard.

---

https://www.youtube.com/watch?v=3Gl_DzJr5BA

---

Ultimate flexibility and control with up to 1.5 seconds of delay time

Time Stretching

The Rubberneck’s unique time stretching feature allows the delay repeats to be stretched or compressed in time.

Over a second of warm and musical 100% analog repeats

Create momentary runaway oscillation effects

The Rubberneck’s Repeats Oscillation feature provides a secondary delay feedback setting for creating momentary run away oscillation effects.

Loop Effects

Add effects to the delay feedback signal path with the Rubberneck’s Loop Send/Return jack.

---

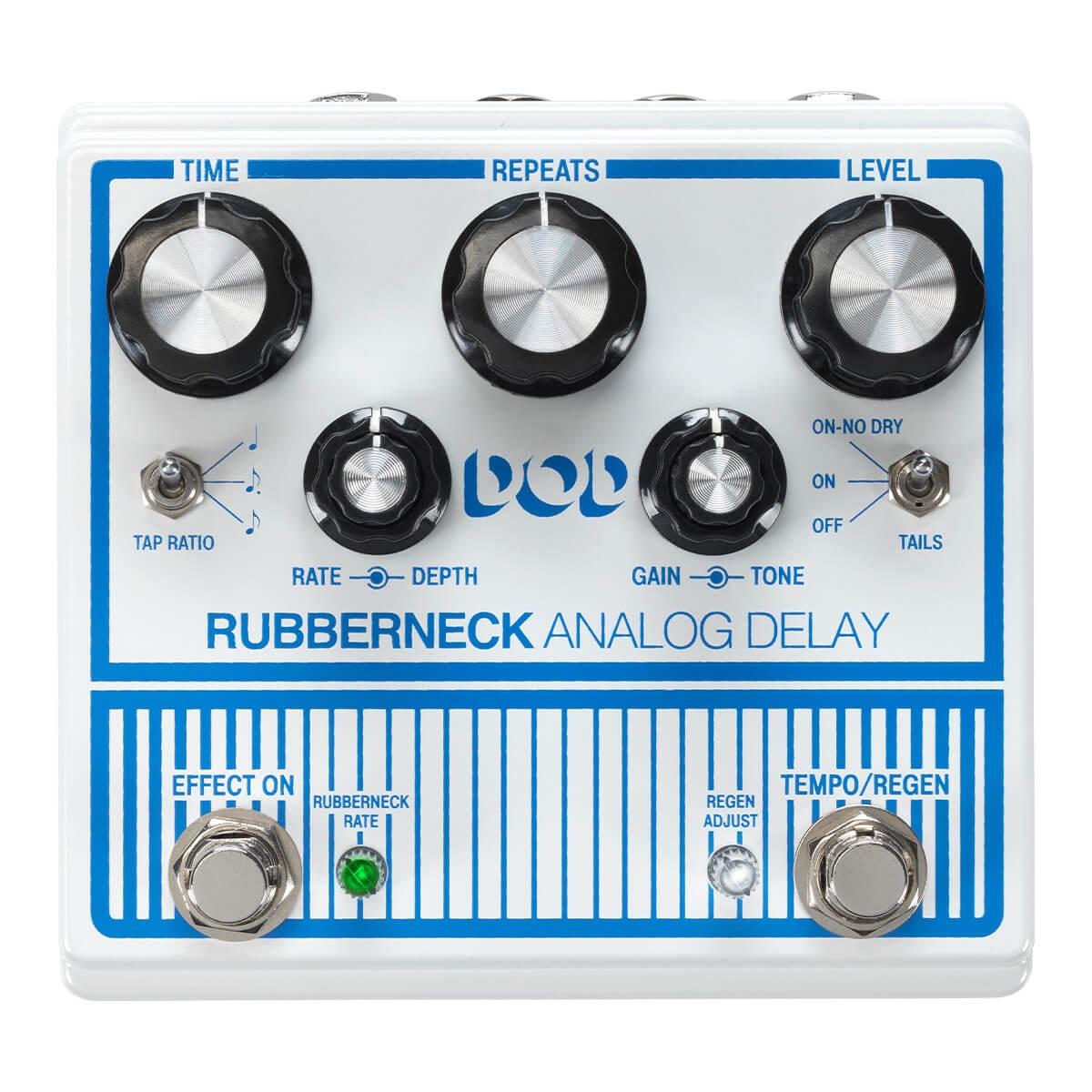

CONTROLS

TIME KNOB

This knob controls the delay time. Range is 30ms to 1000ms. Up to 1500ms of delay is available using the Tempo footswitch.

REPEATS KNOB

This knob controls number of delay repeats heard. Higher settings can create oscillating runaway feedback that analog delays are known for.

LEVEL KNOB

This knob controls the output level of the delay signal. Use this in conjunction with the Repeats, Tone and Gain knobs to balance your delay levels.

TAP RATIO SWITCH

This switch selects between 3 different tempo ratios making it easy to get delay repeats that are perfectly in time with the tapped intervals or giving them a triplet or doubled feel.

RATE/DEPTH KNOBS

These knobs control the amount of delay time modulation creating sounds from subtle chorusing to wild vibrato/tremolo textures.

GAIN/TONE KNOBS

The Gain knob shapes the delay signal by adding more input gain into the bucket brigades making the delay more overdriven. The Tone knob increases brightens or darkens the delay signal.

TAILS SWITCH

This switch allows repeats to be heard or not heard when the delay is bypassed. The 3rd option (On-No Dry) defeats the dry signal while allowing delay repeats to continue in bypass.

EFFECT ON FOOTSWITCH

This footswitch turns the delay effect on and off. When this footswitch is pressed and held the Rubbernecking feature is enabled which modifies the delay time up or down at different rates depending on the setting of the Rubberneck Rate control.

EFFECT LED/RUBBERNECK RATE CONTROL

This transparent pot utilizes a bi-color LED beneath it to indicate different delay operating states. When it is green the delay effect is enabled. When it is pulsing green to yellow it is enabled and showing the modulation Rate and Depth settings. When it is red the Rubbernecking feature is active. The pot itself is used for selecting the Rubberneck rate (time it takes to modify the delay time when the Effect footswitch is pressed and held).

TEMPO LED/REGEN ADJUST CONTROL

This transparent pot utilizes an LED beneath it that flashes at the current delay time. The delay time can be changed by tapping the Tempo/ Regen footswitch. The pot itself is used for adjusting the secondary regen/repeats setting of the delay that is enabled by pressing and holding the Tempo/Regen footswitch.

TEMPO/REGEN FOOTSWITCH

This footswitch is used to tap in the delay time during performance. When the delay is enabled and the footswitch is pressed, it enables the secondary repeats regen control in the path providing control of a secondary delay repeats setting set by the Regen Adjust control.
