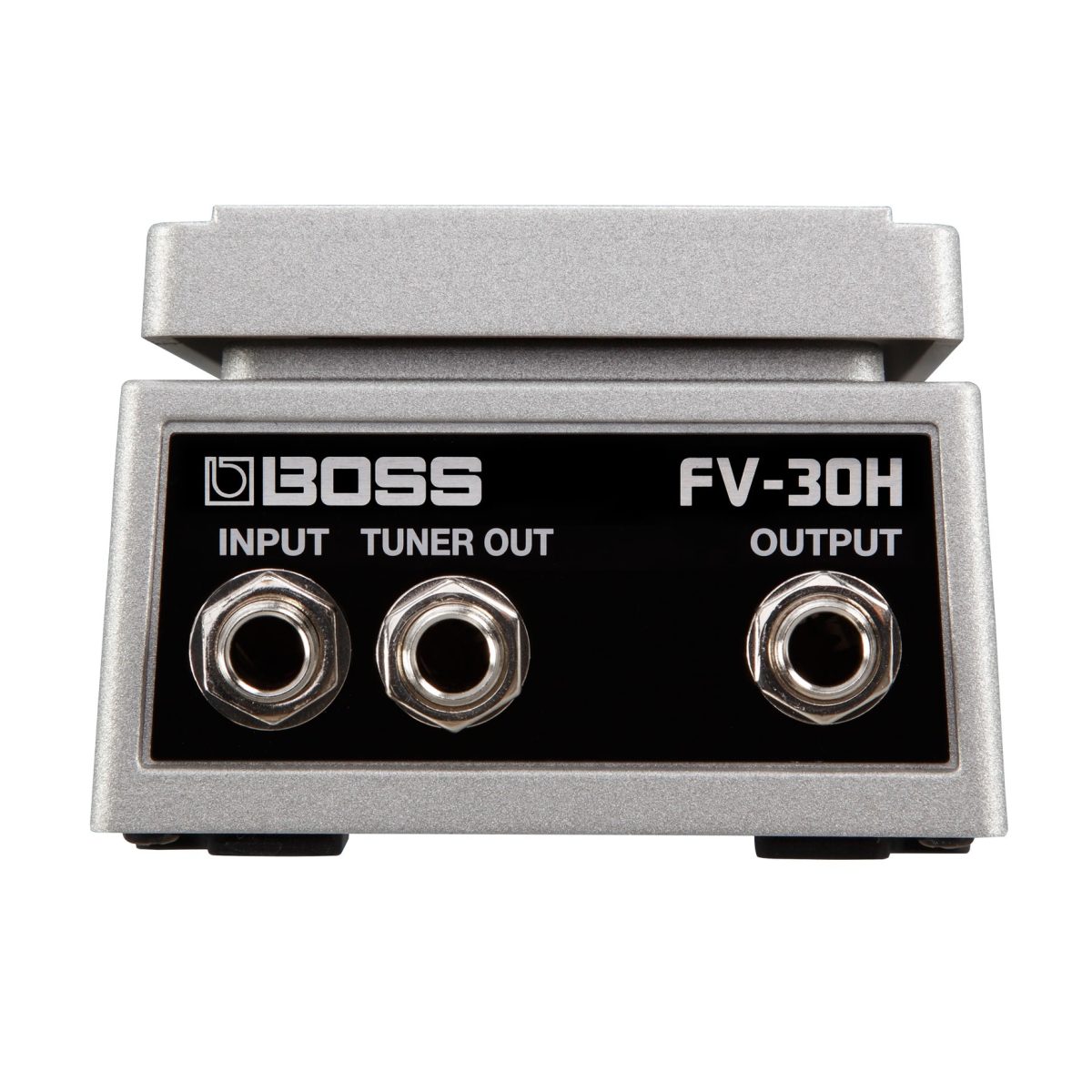

Boss - FV-30H Foot Volume High-Impedance
The FV-30H and FV-30L are compact foot volume pedals with kickin’ new designs. They’ve been specially created for saving space on your pedalboard while maintaining the trusted BOSS standard for sound quality, reliability, and durability. These pedals are 100-percent professional grade, aluminum die-cast units, and feature smooth pivot action that supports subtle changes in volume control. Thanks to their small size, the FV-30H and FV-30L offer a huge advantage for traveling musicians and gigging players who need to maximize pedalboard space.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
BOSS Quality in Space-Saving Designs for Your Pedalboard
The FV-30H and FV-30L are compact foot volume pedals with kickin’ new designs. They’ve been specially created for saving space on your pedalboard while maintaining the trusted BOSS standard for sound quality, reliability, and durability. These pedals are 100-percent professional grade, aluminum die-cast units, and feature smooth pivot action that supports subtle changes in volume control. Thanks to their small size, the FV-30H and FV-30L offer a huge advantage for traveling musicians and gigging players who need to maximize pedalboard space. As with the other models in the FV series, two different pedal versions allow you to choose the best type for your specific application: FV-30H—A high-impedance pedal (with dedicated tuner output) that’s best for connecting directly to an electric guitar or bass. FV-30L—A low-impedance pedal equipped with stereo input/output for stompboxes, keyboards, and other digital instruments.Features
- Space-saving volume pedals with rugged aluminum die-cast body designs
- Silky feel with smooth pivot for maximum control
- Tuner out jack (FV-30H)
- Stereo input and output (FV-30L)
- FV-30H for direct connection to high-impedance gear like electric guitars
- FV-30L for low-impedance gear like synthesizers and stompboxes
Specifications |
|
| Connectors(FV-30H) | INPUT jack: 1/4-inch phone type |
| OUTPUT jack: 1/4-inch phone type | |
| TUNER OUT jack: 1/4-inch phone type | |
| Connectors(FV-30L) | INPUT 1, 2 jacks: 1/4-inch phone type |
| OUTPUT 1, 2 jacks: 1/4-inch phone type | |
| Accessory | Owner's Manual |
Size and Weight |
|
| Width | 80 mm |
| 3-3/16 inches | |
| Depth | 192 mm |
| 7-9/16 inches | |
| Height | 58 mm |
| 2-5/16 inches | |
| Weight | 840 g |
| 1 lbs. 14 oz. | |
Size and Weight (Maximum height) |
|
| Width | 80 mm |
| 3-3/16 inches | |
| Depth | 192 mm |
| 7-9/16 inches | |
| Height | 92 mm |
| 3-10/16 inches | |
| Weight | 840 g |
| 1 lbs. 14 oz. |
