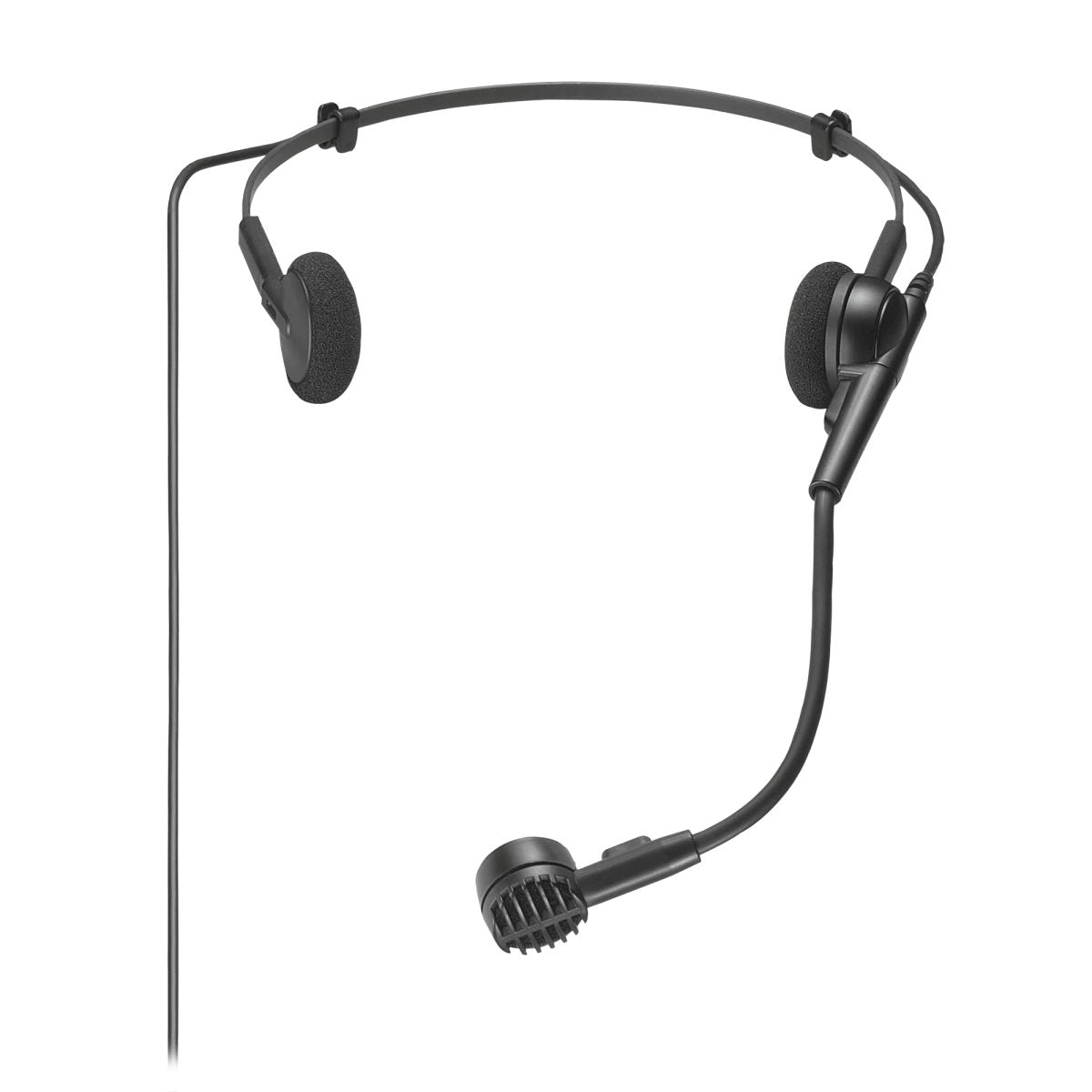

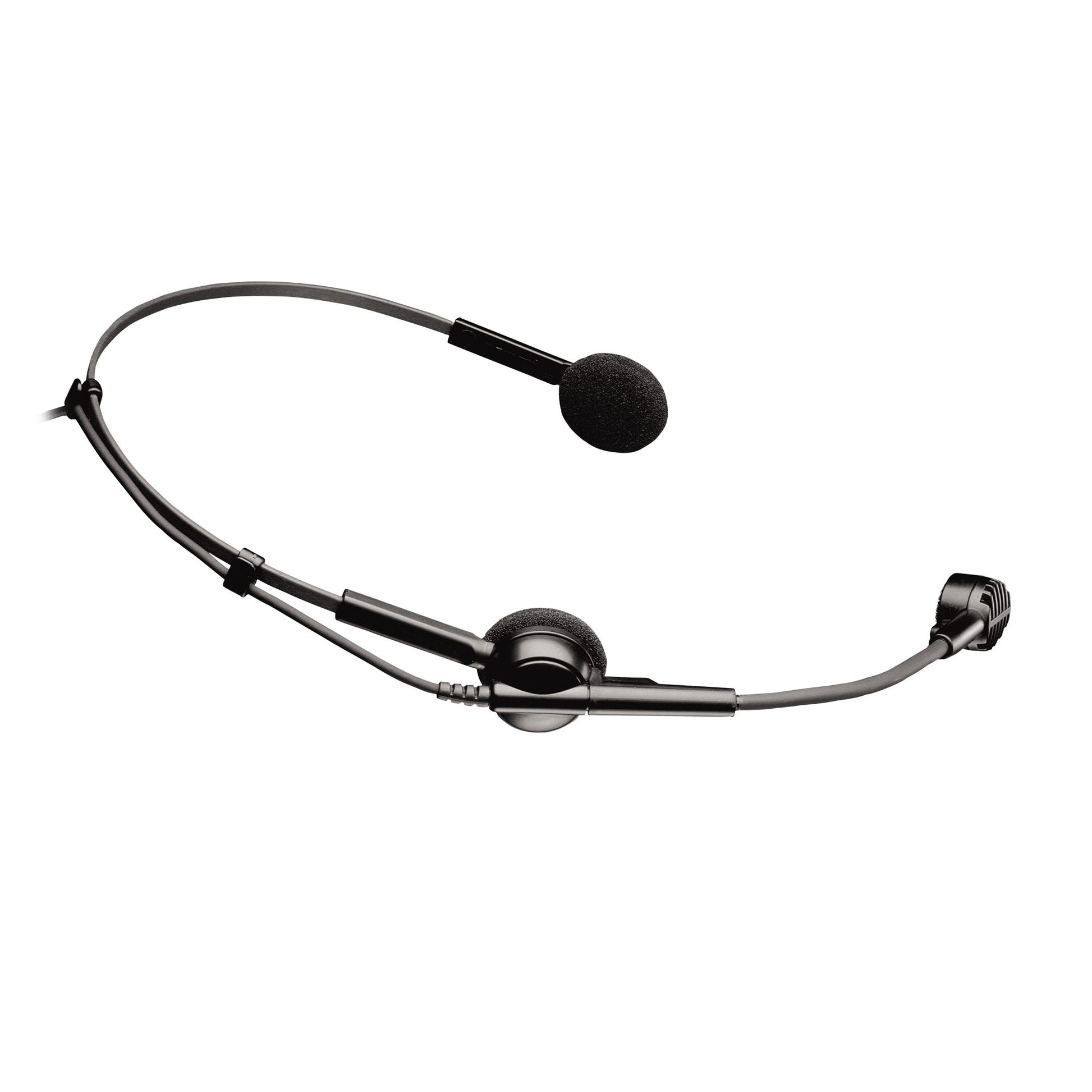

Audio-Technica - ATM75cW Cardioid Condenser Headworn Microphone
With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip.
ATM75cW: 55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
Couldn't load pickup availability
We’re celebrating the launch of our new website. Get $20 off when you spend $1,000 or more. Discount is automatically applied at checkout.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
ATM75
- Professional-quality vocal pickup with hands-free operation
- Low-visibility headband provides stable, comfortable fit
- Pivot-mounted flexible microphone
- Cardioid polar pattern improves isolation of desired sound source
Microphones |
|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 100-13,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D. BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | PHANTOM: 96 dB, 1 kHz at Max SPL BATTERY: 85 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 58 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Battery Type | 1.5V AA/UM3 |
| Battery Current/Life | 0.4 mA / 2000 hours typical (alkaline) |
| Switches | Off, on-flat, on-roll-off |
| Weight (Microphone) | 2.1 oz (60 g) |
| Weight (Power Module) | 4.9 oz (139 g) |
| Weight | Microphone: 60 g (2.1 oz) |
| Power module: 139 g (4.9 oz) | |
| Cable | 4.6' (1.4 m) long (permanently attached to microphone), 0.11" (2.8 mm) diameter, 2-conductor shielded cable with TA3F-type connector |
| Dimensions | Microphone: 20.4 mm (0.80") diameter |
| Power module (wired only): 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D | |
| Headset: 120.0 mm (4.72") nominal at widest point, 80.5 mm (3.17") flexible boom | |
| Dimensions (Power Module) | 3.31" (84.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) D |
| Dimensions (Headset) | 4.72" (120.0 mm) nominal at widest point, 3.17" (80.5 mm) flexible boom |
| Dimensions (Microphone) | 0.80" (20.4 mm) diameter |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Output Connector | Power module: Integral 3-pin XLRM-type (wired only) |
| Accessories Included | AT8531 power module; AT8439 clothing clip; AT8139L large windscreen; AT8139S small windscreen |
| Audio-Technica Case Style | M19 |
